Baader T-2 Locking Ring w/ Lever for MaxBright II

• T-2 (M42x0.75) Locking ring with lever for direct attachment of the MaxBright® II onto all Baader T-2 star diagonals, prisms or mirrors (e.g. to directly couple the body of the Maxbright II with the Baader Prism Diagonal T-2/90° 32mm (#2456005)
• A Bino auxillary-ring for adapting the MaxBright® II (#2458272) is also required. The Bino auxillary-ring is placed between the binocular and the T-2 locking ring.

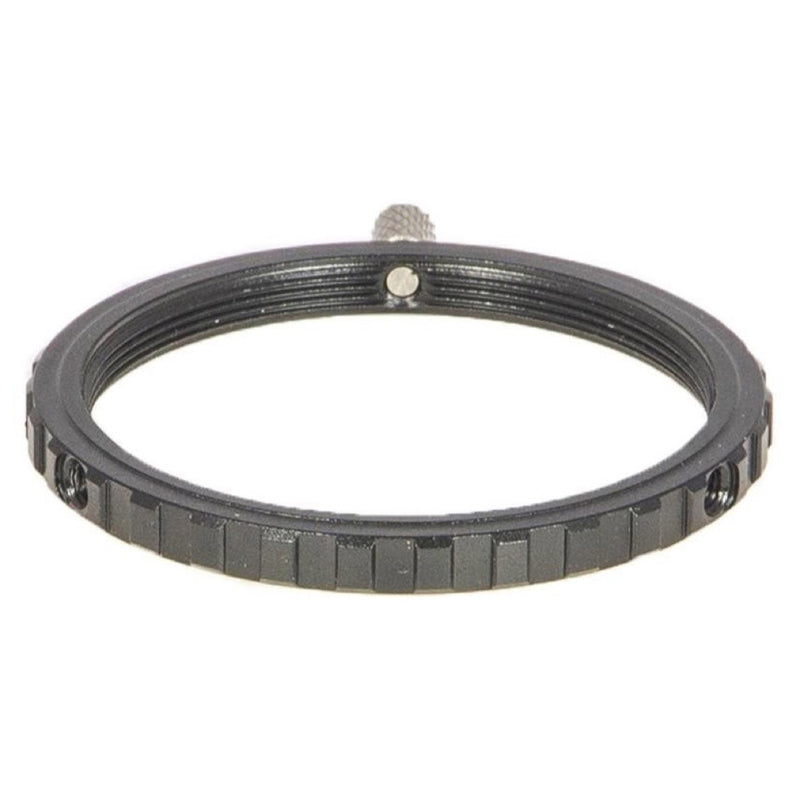

• If the lever of the locking ring comes to rest in an inconvenient position you can still adjust the position of the lever. The lever is only threaded into the ring at the outer circumference. This lever may be threaded into any of the three M4 threads each spaced 120° apart.

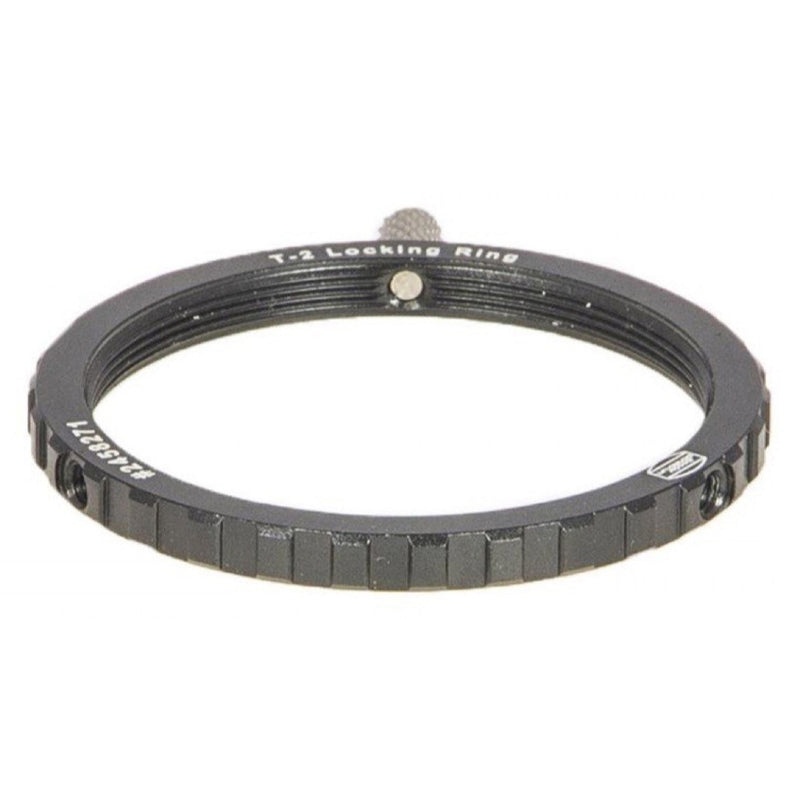

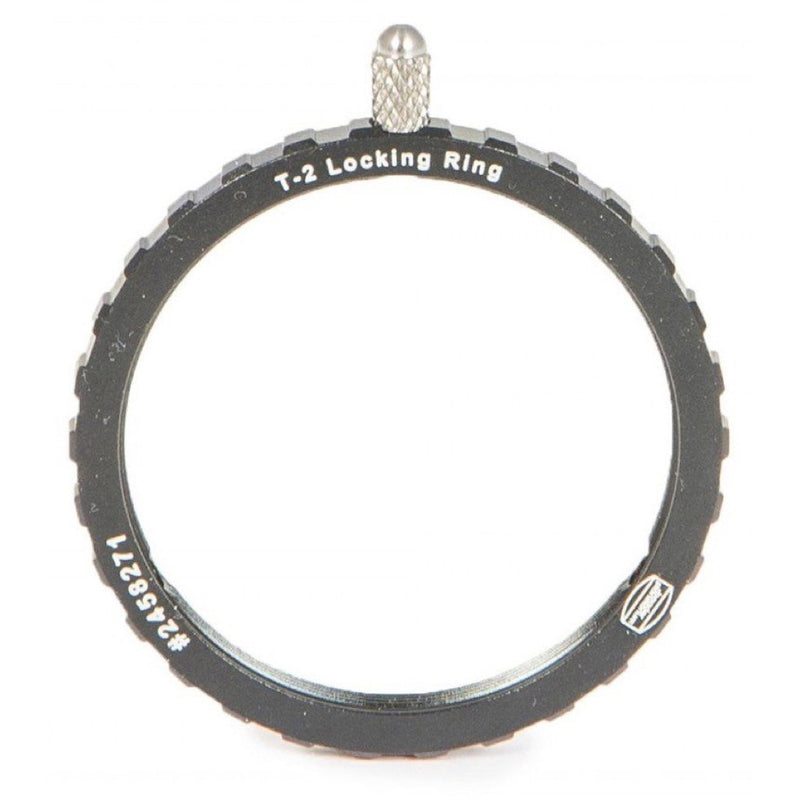

T-2 Locking ring with lever

Shortest possible Adaptation without Glasspath Corrector

In combination with telescopes with long focal lengths (f/10 or slower), it may be interesting to screw the binoviewer directly onto the star diagonal. This gives you a very short (and theft-proof) adaptation, which is ideal for public observatories. In addition, you can screw a T-2 star diagonal directly onto our Baader Diamond SteelTrack focusers with the optional T-2-adapter # 2957202 – very compact, and protected from "accidental removal". To do so, you have to remove the T-2 counter nut or the Zeiss microbayonet.

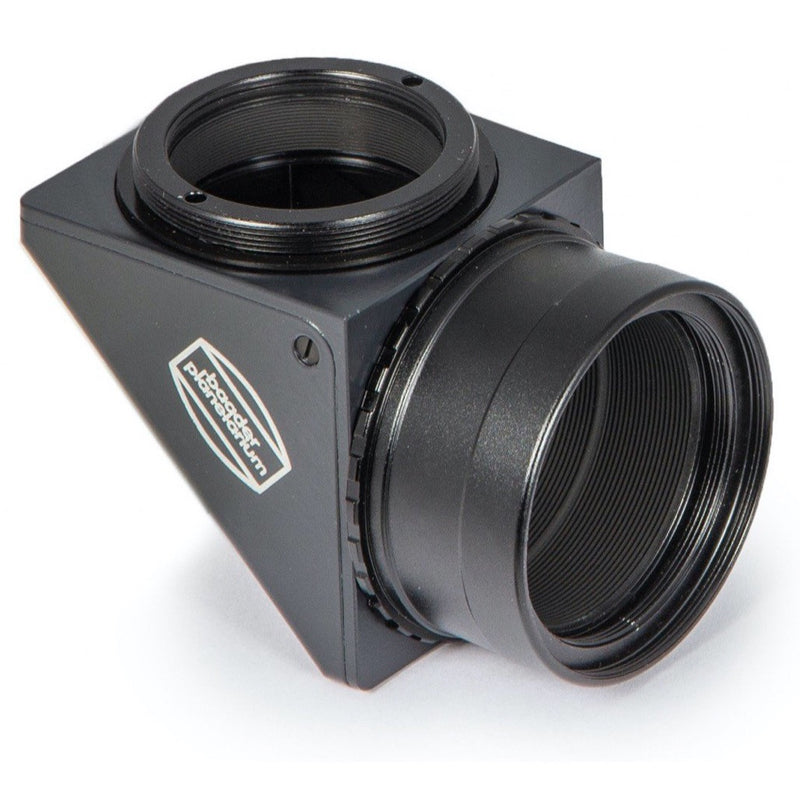

The shortest possible adaptation can be achieved with theBaader Prism Diagonal T-2/90° 32mm(#2456005)

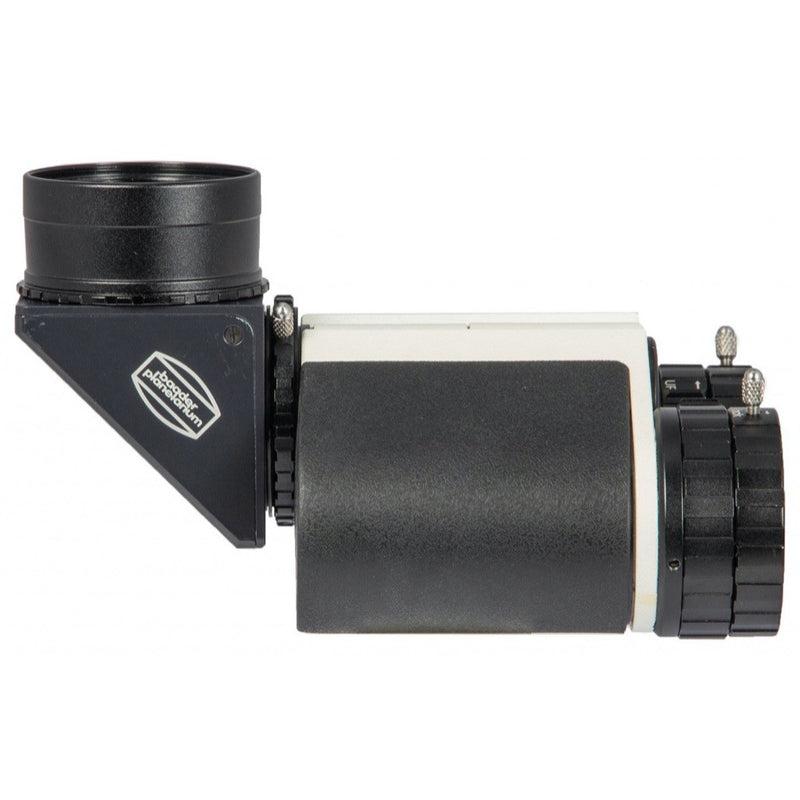

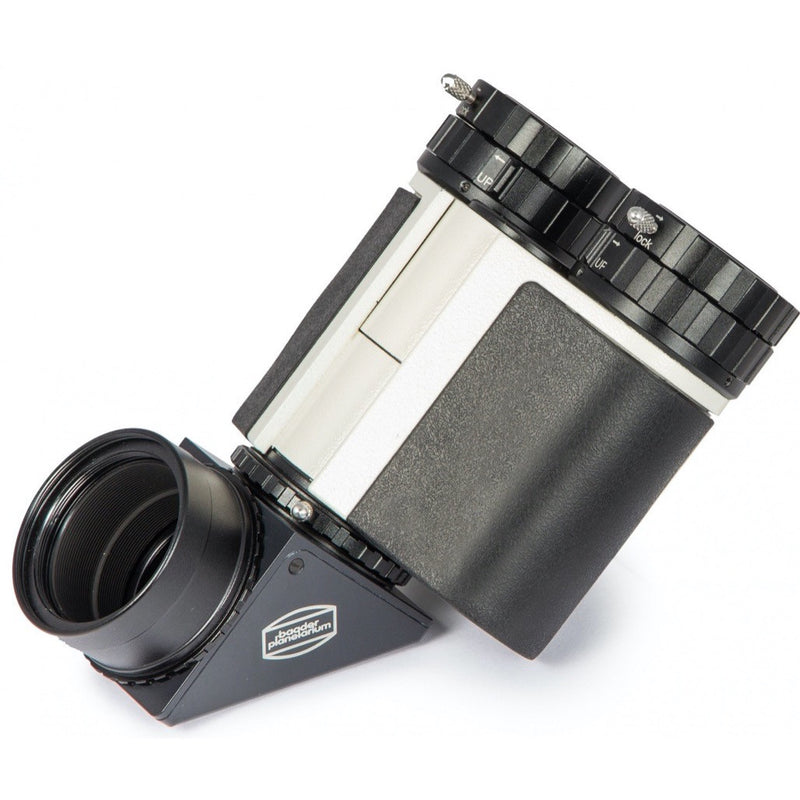

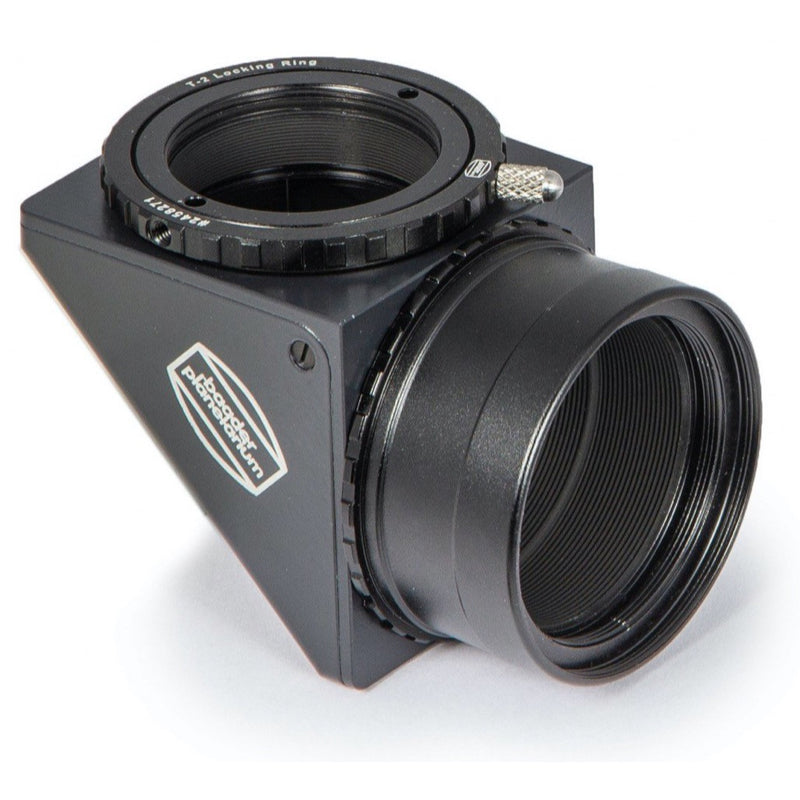

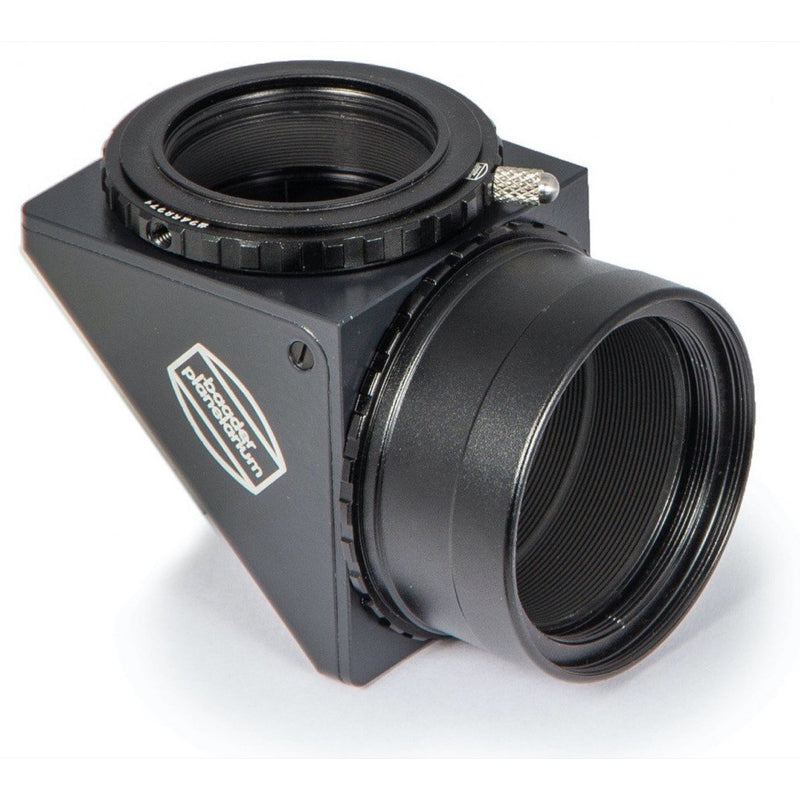

You also need the T-2 Locking Ring # 2458271 and theBino auxillary-ring for adaptation of MaxBright® II(#2458272) . Screw the Locking Ring onto the male thread of the T-2-prism and put the Slip Ring between binoviewer and locking ring. The raised surface of the slip ring should face towards the binoviewer and the flat one towards the star diagonal. Now screw the binoviewer onto the prism and fix it in the desired position with the locking ring. The slip ring lets you still set the interpuoillar distance.

If the handle of the locking ring ends up in an uncomfortable position, you can change its position. It is only screwed into the ring, you can put it into any of the three threaded holes which are all around the locking ring, each 120° apart.
