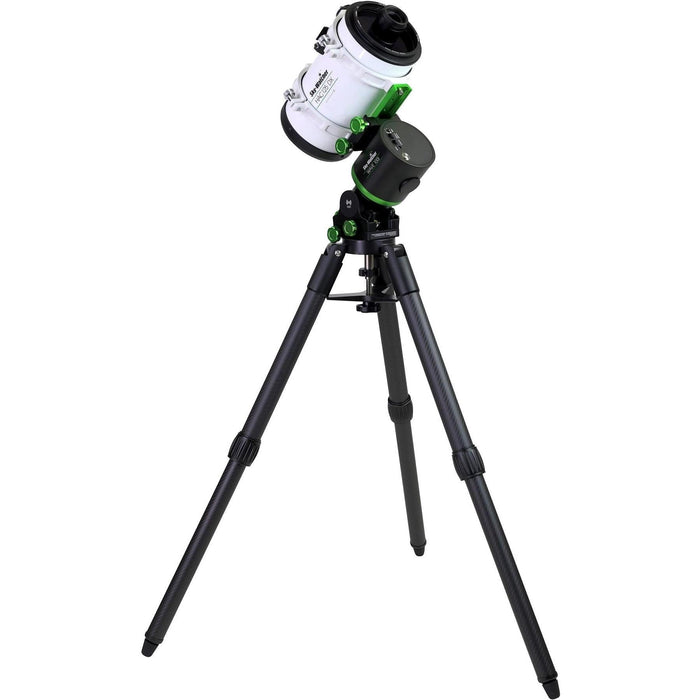

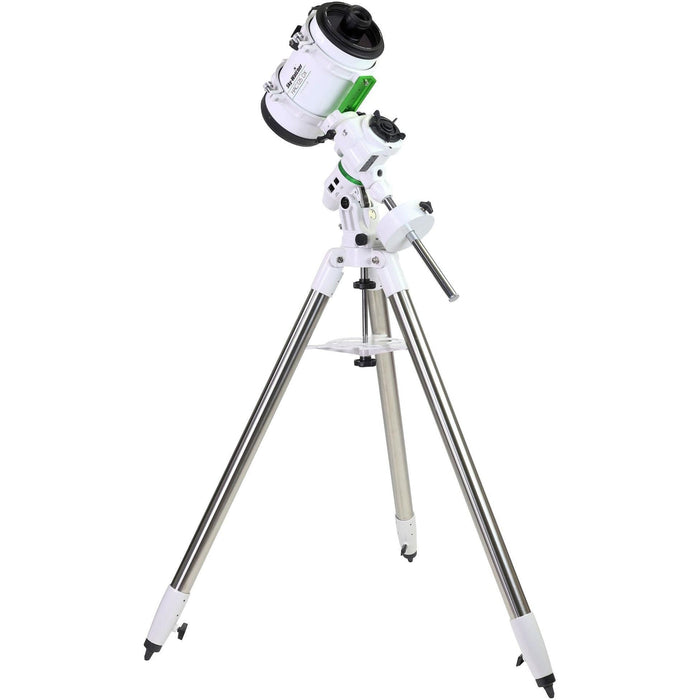

What kind of mount is needed for the Sky-Watcher HAC 125DX?
With an optical tube weight of only 8.4 pounds, the HAC 125DX is well-suited for a variety of lightweight and portable equatorial mounts. Mounts like the Sky-Watcher HEQ5-R, EQM-35, or even the Star Adventurer GTi can handle this astrograph effectively for wide-field imaging.
How does the HAC 125DX's f/2 speed affect imaging the Andromeda Galaxy (M31)?
The f/2 speed is a massive advantage for large targets like the Andromeda Galaxy (M31). You can capture the faint outer dust lanes and details with much shorter sub-exposures compared to an f/4 or f/5 telescope. This reduces tracking demands and allows you to gather a significant amount of data in a single night.
Is the 16mm image circle of the HAC 125DX compatible with APS-C or full-frame sensors?
No, the 16mm image circle is a key trade-off for its speed and compact size. It is specifically designed for smaller-format sensors, such as 1-inch or 4/3-inch chips (like the IMX533 or IMX585), where it will provide a well-corrected field. Using larger APS-C or full-frame sensors would result in significant vignetting and distorted stars at the edges of the frame.
What does "Honders Advanced Catadioptric" mean for the HAC 125DX?
It's a specialized optical design that uses both mirrors (catoptric) and lenses (dioptric) to achieve its performance. The HAC 125DX uses a Mangin mirror (a mirror with a refractive surface on the front) and a front corrector lens. This sophisticated design allows it to have a very fast f/2 focal ratio in a very short, 15.7-inch tube.
Do I need to autoguide with the HAC 125DX Astrograph?
Due to the extremely fast f/2 focal ratio, you can often get excellent results with unguided exposures of 30-60 seconds, assuming your mount is accurately polar aligned. This makes it a great option for simpler, lightweight setups where adding a guide scope and camera is inconvenient.

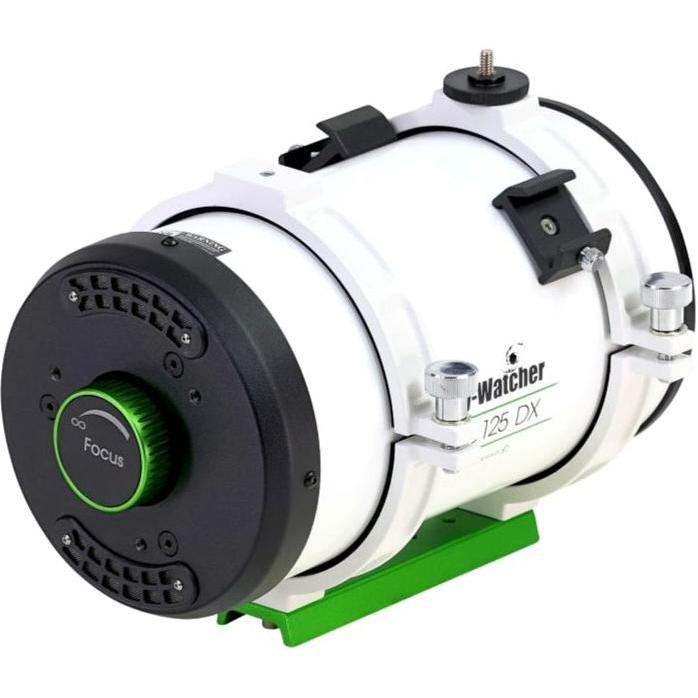

How do I focus the HAC 125DX?

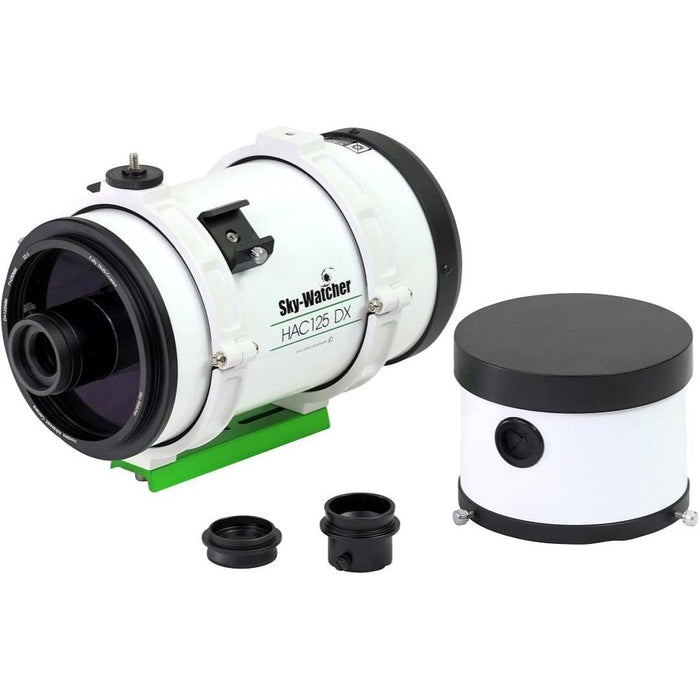

The HAC 125DX uses a primary mirror helical focuser. Instead of moving the camera back and forth, you turn a knob at the rear of the telescope that adjusts the position of the primary mirror itself. This design is robust and allows for a wide range of camera bodies to be attached directly to the included M42x0.75 adapter.
