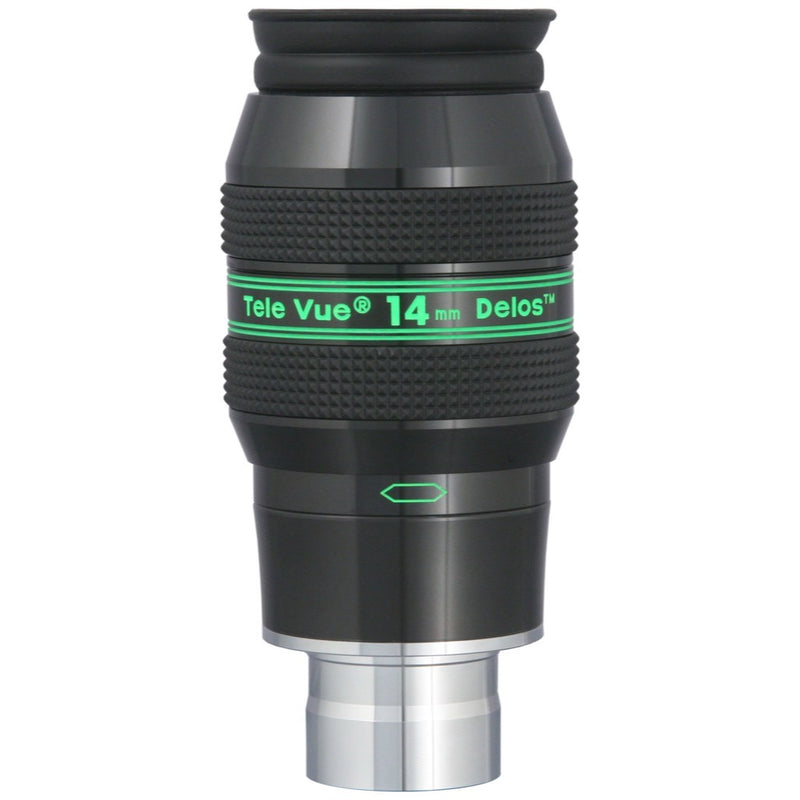

Tele Vue Delos 14mm 72° Eyepiece - 1.25"

Advanced Optical Design for High-Fidelity Views

At the heart of the Delos is a sophisticated optical system designed to create a flat, high-contrast, and distortion-free image. Every glass surface is fully multi-coated to maximize light transmission and minimize scatter, resulting in views that are exceptionally bright with a neutral color balance. The internal baffling and blackened lens edges further enhance contrast by eliminating internal reflections that can wash out faint details.

For you, this means that bright objects like Jupiter and Saturn snap into focus with sharp, well-defined edges, free of distracting internal glare or false color. Faint planetary cloud belts and subtle lunar rilles are rendered with clarity, while the true colors of stars are preserved, making it an excellent choice for resolving tight double stars.

The 72° Apparent Field of View Sweet Spot

The Delos's 72° apparent field of view (AFOV) provides a tangible sense of immersion without introducing the edge-of-field aberrations often found in more extreme wide-field designs. This field is wide enough to feel expansive, allowing you to comfortably track objects in a non-driven telescope without them drifting out of view too quickly. The optical correction ensures stars remain sharp points across the entire field, even in faster f/ratio telescopes.

On a target like the Hercules Globular Cluster (M13), the 14mm Delos in a 10-inch f/10 Schmidt-Cassegrain provides 179x magnification. This is enough power to resolve the dense core into a spray of individual stars, while the 72° field is wide enough to frame the entire cluster with surrounding dark sky, giving it a distinct three-dimensional appearance.

Consistent 20mm Eye Relief for Viewing Comfort

Every eyepiece in the Delos line features a constant 20mm of eye relief, a generous distance that allows most observers, including those who wear glasses for astigmatism, to see the entire field of view without strain. This consistent specification across the series means you can switch between different Delos focal lengths without needing to readjust your viewing position. The long eye relief reduces eye fatigue during extended observing sessions, letting you concentrate on the object, not on finding a comfortable head position.

Precision Adjustable and Locking Eyeguard

To make perfect use of the long eye relief, the Delos incorporates a sliding, locking eyeguard mechanism. This allows you to set the ideal distance between your eye and the top lens and lock it in place, preventing accidental shifts during use. By customizing the eyeguard height, you can effectively block stray light and maintain the correct eye placement needed to see the full 72° field without experiencing blackouts or kidney-beaning effects.

Ready for Dioptrx Astigmatism Correction

A key feature for many observers is the Delos's compatibility with Tele Vue's Dioptrx system. The top of the eyepiece is threaded to accept these astigmatism correctors directly, allowing you to observe without your eyeglasses while still achieving perfectly sharp star images. This creates a more direct and unencumbered connection to the eyepiece, eliminating the reflections and field reduction that can occur when looking through both your glasses and the eyepiece optics.

Durable 1.25" Barrel with Filter Threads

The Delos 14mm uses a standard 1.25" chrome barrel for broad compatibility with any telescope accepting this format. The barrel features a safety undercut to help prevent the eyepiece from accidentally slipping out of the focuser or diagonal. It is also threaded to accept standard 1.25" filters, allowing you to easily add a moon filter, light pollution filter, or planetary color filter to enhance your views without needing separate adapters.

Choosing Your Mid-Power Eyepiece: Delos vs. Nagler and Panoptic

The Delos series occupies a specific niche in the Tele Vue lineup, trading the extreme field of a Nagler for superior contrast and eye relief.

• vs. Nagler Type 6 13mm: The Nagler offers a wider 82° apparent field, creating a more dramatic "spacewalk" effect. However, the Delos 14mm provides significantly more eye relief (20mm vs. 12mm) and is often perceived as having higher contrast, making it a better choice for planetary detail and for observers who require eyeglasses.
• vs. Panoptic 15mm: The Panoptic offers a 68° field and is a smaller, lighter eyepiece. The Delos provides a slightly larger and more corrected field of view with longer eye relief, making it a step up in viewing comfort and edge performance for a modest increase in size and weight. The choice here is often between maximum portability (Panoptic) and a more immersive, comfortable experience (Delos).

The genuine trade-off for the Delos's performance is its size and weight compared to simpler designs like Plössls or the Panoptic series. It requires a robust focuser and may necessitate rebalancing the telescope when swapping with much lighter eyepieces. For many, this is a minor inconvenience for the level of optical quality and viewing comfort it provides.
