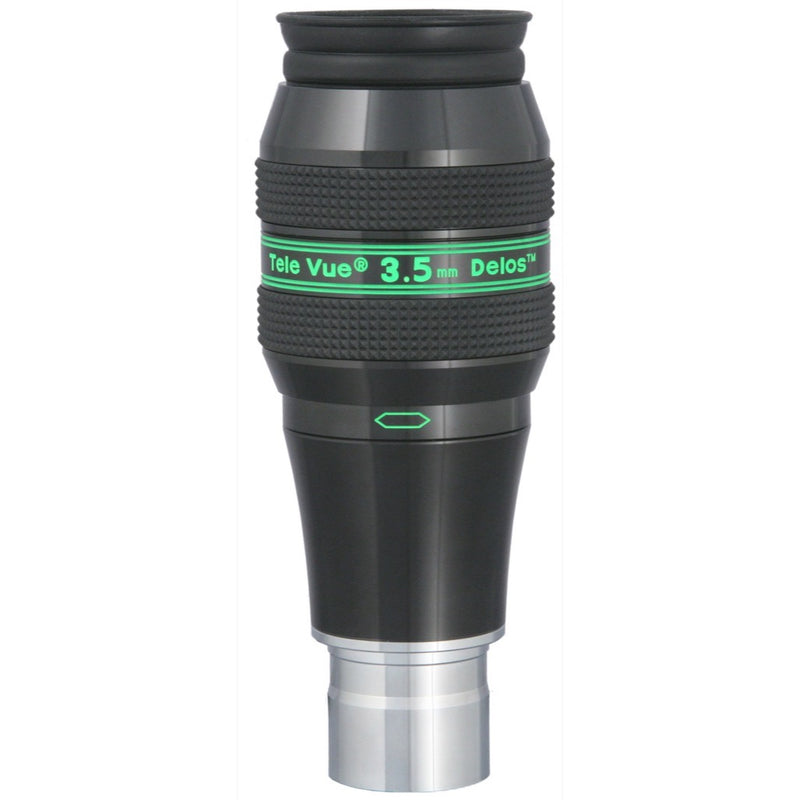

Tele Vue Delos 3.5mm 72° Eyepiece - 1.25"

The 72° Apparent Field of View

The Delos optical design achieves a 72° apparent field of view, creating a viewing window that feels expansive and immersive. This wide field provides a significant advantage at high power, allowing you to track a planet across the field for longer periods on a non-driven or manually guided mount. The optical correction is maintained to the very edge of the field, ensuring stars remain sharp points and planetary limbs are free of distracting distortion or color fringing, a key performance trait for a high-power eyepiece.

High-Contrast Optical System

Tele Vue utilizes high-index glass elements and applies full multi-coatings to every air-to-glass surface in the Delos 3.5mm. This meticulous approach minimizes scattered light and maximizes throughput, which is critical for discerning low-contrast details at high magnification. The practical result is a darker background sky, which makes subtle features like Jupiter's faint festoons, the delicate crepe ring of Saturn, or minute tonal variations in Martian albedo features more readily visible. The blackened lens edges further enhance this effect by absorbing stray light that would otherwise reduce image contrast.

Precision Locking Eyeguard and Consistent Eye Relief

A core feature of the Delos line is its adjustable, locking eyeguard, paired with a constant 20mm of eye relief across all focal lengths. This system allows you to set the perfect distance between your eye and the top lens, then lock it in place. This provides a stable, repeatable viewing position night after night, eliminating distracting "blackouts" or kidney-beaning effects. For observers who wear glasses to correct for astigmatism, the long eye relief ensures you can see the entire 72° field of view comfortably without removing them.

Parfocal Design for Seamless Transitions

The Delos 3.5mm is designed to be nearly parfocal with other Tele Vue 1.25" eyepieces, including other Delos, Plössls, and Panoptics. This means that when you switch from a lower-power Tele Vue eyepiece to the 3.5mm Delos for a closer look, you will need to make only a minimal adjustment to the focuser. This workflow benefit keeps your target centered and saves valuable time, especially when observing conditions are changing or you are trying to catch a moment of perfect seeing.

The High-Magnification Experience

In a quality 4-inch apochromatic refractor under steady skies, the 3.5mm Delos delivers magnifications in the 200-250x range, ideal for planetary observation. As your eye settles on Jupiter, the view is not just a magnified disk but a detailed globe. You can trace the fine, thread-like structures within the main equatorial belts and watch for transit events of the Galilean moons, whose tiny disks are cleanly resolved against the planet's clouds. The generous field means the planet drifts slowly through the view, allowing you to study features without constant nudging of the telescope.

A Note on Atmospheric Seeing

The primary limitation of any high-power eyepiece is the Earth's atmosphere. At the magnification levels the 3.5mm Delos provides, excellent atmospheric "seeing" is required to realize its full potential. On nights of poor seeing, the image will appear soft or shimmering, a condition no eyepiece can correct. Therefore, this is a special-purpose eyepiece you reach for when the air is steady and you want to push your telescope to its resolution limit on the brightest targets.

Choosing Your High-Power Tele Vue Eyepiece

Tele Vue offers several eyepiece lines that deliver high magnification. The choice depends on the observer's priorities.

• Delos 3.5mm vs. Nagler Type 6 3.5mm: The Nagler offers a wider 82° apparent field, creating a more dramatic "spacewalk" effect. However, the Delos provides significantly more eye relief (20mm vs. 12mm), making it the superior choice for eyeglass wearers and many observers who find the longer eye relief more comfortable for extended planetary study.
• Delos 3.5mm vs. DeLite 3mm/4mm: The DeLite series is smaller, lighter, and more affordable, with a 62° apparent field. The Delos is the choice for observers who want the most immersive high-power view possible while retaining long eye relief. The DeLite is for those who prioritize portability and lower cost while still demanding excellent optical quality and comfort.
