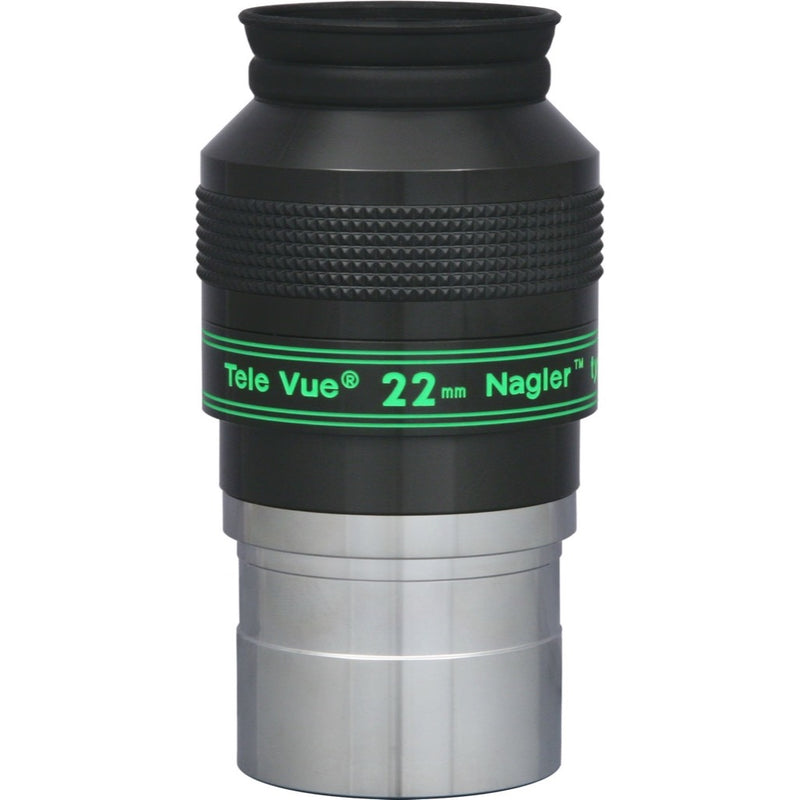

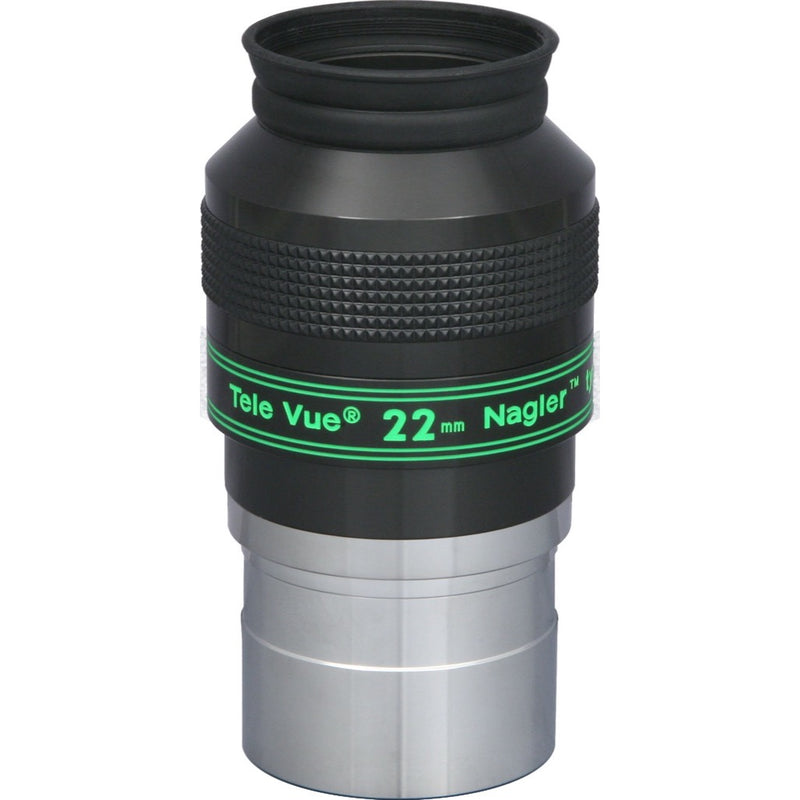

Tele Vue Nagler T4 22mm 82° Eyepiece - 2"

The Nagler Type 4 Optical Engine

At the heart of the 22mm Nagler is the Type 4 optical design, a sophisticated arrangement of high-index glass that corrects for aberrations like astigmatism and field curvature. This means stars remain sharp points not just in the center, but across the entire expansive 82° field. The result is a flat, distortion-free canvas that allows you to explore the full view without chasing focus or losing detail at the periphery.

An 82° Apparent Field of View

The 82° apparent field of view is the signature of the Nagler design, creating the famous "spacewalk" effect. This is not a gimmick. By filling your peripheral vision, the eyepiece removes the sense of a boundary, allowing your eye to relax and scan the starfield naturally. When viewing the Veil Nebula or the Andromeda Galaxy, this immersive presentation lets you trace faint structures and outlying star clusters in a single, cohesive view.

Fully Multi-Coated Optics for Maximum Contrast

Every glass-to-air surface in the 22mm Nagler T4 receives multiple layers of anti-reflective coatings. This meticulous process maximizes light transmission, which is critical for observing faint deep-sky objects. The direct visual benefit is a darker sky background and enhanced contrast, allowing the delicate tendrils of nebulosity and the faint arms of galaxies to stand out against the void.

Comfortable Viewing with the Insta-just Eyeguard

A generous 19mm of eye relief makes the 22mm Nagler comfortable for all observers, including those who wear eyeglasses. To make this long eye relief perfectly usable, Tele Vue developed the Insta-just eyeguard. This click-stop mechanism lets you instantly set and lock the eyeguard height, ensuring your eye is positioned at the ideal distance to see the full field of view without blackouts or stray light interference, night after night.

Optimized for Fast Reflectors with Paracorr

The Nagler T4 design is specifically engineered to work as a system with the Tele Vue Paracorr Type 2 coma corrector. Owners of fast Newtonians and Dobsonians (f/5 or faster) can achieve tack-sharp stars across the entire 82° field, correcting the coma inherent in their telescope's optics. This synergy turns a fast reflector into an uncompromising wide-field instrument, delivering views that are as sharp at the edge as they are in the center.

Robust Mechanical Design and Safety

The eyepiece is built for a lifetime of use in the field. A textured rubber grip ensures secure handling, even with gloves on, while the 2-inch barrel features a machined undercut, or safety kerf. This groove gives your focuser's set screw a positive lock, significantly reducing the risk of the heavy eyepiece accidentally slipping out and falling.

A Window on the Cygnus Loop

In a 12-inch f/5 Dobsonian with a quality O-III filter, the 22mm Nagler T4 transforms the Cygnus Loop. At this focal length, the magnification is low enough to frame either the Eastern or Western Veil in its entirety. As your eye adapts, the nebula resolves from a ghostly arc into a complex, three-dimensional network of filaments. The sharp, wide field allows you to follow the delicate, intertwined strands against a dark background, providing a sense of scale and structure that higher magnifications miss.

Considerations and Trade-Offs

The optical performance of the 22mm Nagler T4 is accompanied by significant size and weight. Observers using smaller equatorial mounts will need to ensure their system is properly counterbalanced. Furthermore, while the eyepiece performs well in any telescope, achieving its full potential in reflectors faster than f/6 requires pairing it with a Paracorr, which represents an additional investment in the optical train.

Choosing Your Wide-Field Nagler

The Tele Vue Nagler family offers several options for immersive, low-power viewing. The 22mm T4 occupies a crucial sweet spot.

• vs. Nagler 16mm T5: The 16mm provides a step up in magnification and a darker sky background, making it a better choice for resolving detail in smaller galaxies or planetary nebulae. The 22mm T4 offers a wider true field of view, making it the superior choice for scanning and observing very large objects.
• vs. Nagler 31mm T5: The 31mm is the ultimate low-power eyepiece, delivering the widest possible true field in the 82° series. However, it is substantially larger, heavier, and more expensive. The 22mm T4 provides a similarly immersive experience in a more manageable and affordable package, making it a more practical choice for many observers and telescope systems.
