Tele Vue Nagler T5 16mm 82° Eyepiece - 1.25"

Nagler Type 5 Optical Design: Wide-Field Correction

At the heart of the 16mm Nagler is a 6-element optical design that manages the complex corrections required for an 82° apparent field. This design controls for aberrations like coma and astigmatism, which would otherwise stretch stars into unflattering shapes at the edge of the field in fast telescopes. The result is a flat, sharp field where stars remain tight points from the center to the edge, preserving the natural appearance of star clusters and rich fields.

This level of correction is what separates a Nagler from simpler wide-field designs. It ensures that the immersive quality of the view isn't compromised by distracting distortions. The observer's eye can relax and roam across the entire field, trusting that the view at the edge is as faithful as the view in the center.

The 82° Apparent Field of View Experience

The 82° apparent field of view (AFOV) is the defining feature of the Nagler family. This geometry is so wide that the edge of the field is not immediately visible to the relaxed eye, creating the sensation of looking through a window into space rather than looking through an eyepiece. This effect makes objects feel suspended in a vast, black background, enhancing the context and scale of deep-sky targets.

With the 16mm focal length in a telescope with a 1200mm focal length, for example, the Ring Nebula (M57) is framed perfectly at 75x magnification. You see not just the nebula itself, but the surrounding star patterns and the faint foreground stars within the ring, all presented in a single, cohesive view that feels like a porthole on a spacecraft.

Maximum Contrast from Multi-Coated Optics

Every air-to-glass surface in the Nagler T5 16mm receives a robust, multi-layer anti-reflective coating. This is not a trivial detail. These coatings are tuned to maximize light throughput at critical wavelengths and to suppress internal reflections that manifest as ghosting and flare, which can wash out faint detail.

The practical benefit is a view with higher contrast and darker sky backgrounds. Faint extensions on galaxies or delicate wisps of nebulosity stand out more clearly against the blackness of space. When observing a bright object like Jupiter, these coatings mean you see crisp detail in the cloud bands without a distracting halo of scattered light.

Comfort and Usability: Eye Relief and Mechanics

The Nagler T5 series features a 10mm eye relief, which is a key trade-off for its compact size. While comfortable for many observers, it can be tight for those who must wear eyeglasses to correct for significant astigmatism. The adjustable rubber eyeguard helps you find the optimal eye position to see the full field of view and blocks stray light from the side, improving perceived contrast.

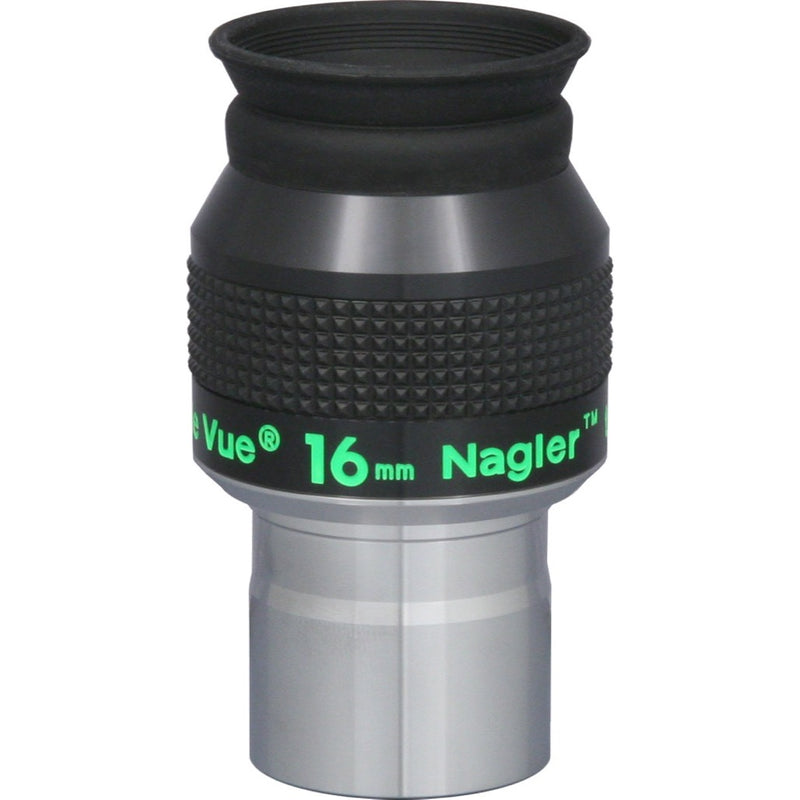

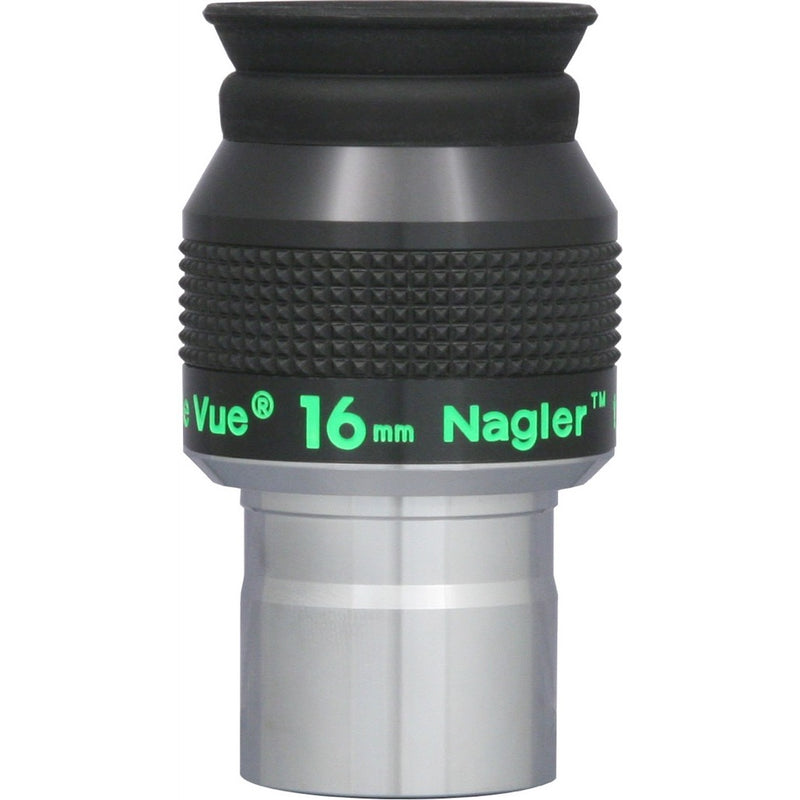

The physical construction is designed for confident handling in the dark. A textured rubber grip ring provides a secure hold, while the chrome-plated 1.25" barrel resists wear and includes a safety undercut to prevent it from accidentally slipping out of the focuser. The barrel is also threaded to accept standard 1.25" astronomy filters.

Parfocal Design for an Efficient Workflow

This eyepiece is designed to be nearly parfocal with other Tele Vue eyepieces in the 1.25" family, such as Plössls, Panoptics, and Delos models. This means that when you switch from another eyepiece in this group to the 16mm Nagler, you will need to make only a minimal adjustment to the focuser. This is a significant workflow advantage during an observing session.

This design feature saves valuable time at the telescope, keeping your target centered and in near-focus as you change magnifications. This allows you to quickly compare views at different image scales without the frustrating process of having to completely re-acquire and refocus the object each time you swap eyepieces.

Choosing Your Nagler: The 16mm T5 vs. Siblings

The Nagler eyepiece family offers several choices, and selecting the right one depends on your telescope and observing goals.

• vs. Nagler 13mm T6: The 13mm T6 is even smaller and lighter, with a longer 12mm eye relief, making it slightly more comfortable for eyeglass wearers. The 16mm T5, however, provides a wider true field of view and a larger exit pupil, making it a better choice for framing larger objects or for use in telescopes with longer focal lengths.
• vs. Nagler 22mm T4 (2"): The 22mm T4 is a 2" eyepiece that delivers a significantly wider true field of view, making it a superior choice for sweeping large nebulae or finding objects. The 16mm T5 is the right choice when your telescope has a 1.25" only focuser, or when you need the higher magnification and darker sky background it provides for resolving details in smaller targets.
