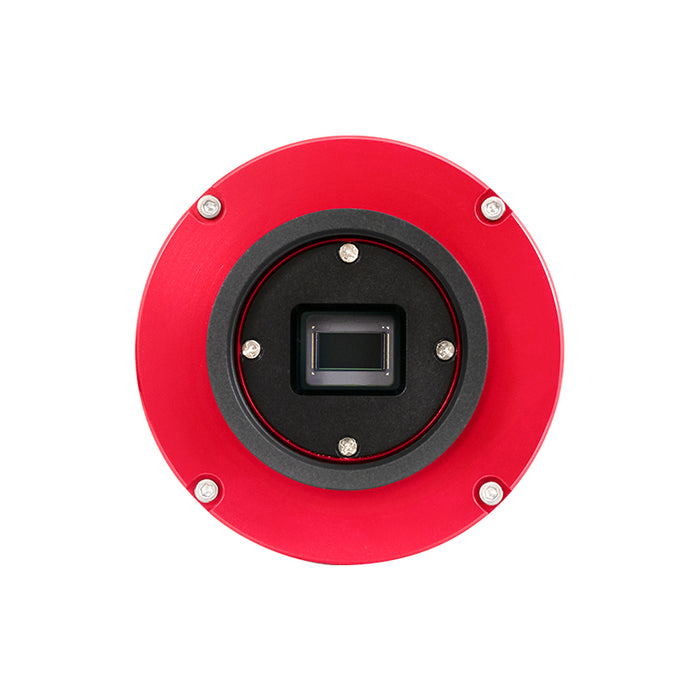

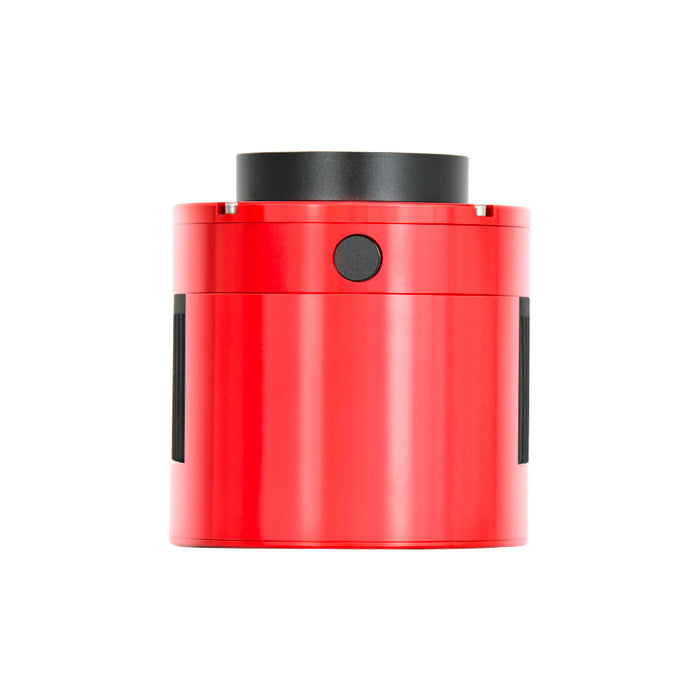

ZWO ASI585MM-P Mono

ZWO ASI585MM-P Mono

by ZWO
SKU ZWO-ASI585MM-P
$0
$699.00 USD - $699.00 USD
$699.00
$699.00 USD - $699.00 USD
$699.00 USD
  • 12.85mm diagonal 3840 x 2160 4K sensor
  • Cooling system with -35°C delta T
  • Peak quantum efficiency (QE) of 91%
  • 2.9μm pixels
Availability:
Backordered
Contact us to know when we will receive our next ones!

International Shipping

More information

  • ASI585MM Pro - Overview

    ASI585MC Pro - Overview

    The ASI585MM Pro is ZWO's latest deep-sky monochrome camera, designed to deliver advanced imaging performance at an affordable price. Featuring Sony's 4K CMOS sensor with STARVIS 2 technology, this camera is perfect for astrophotographers looking for versatility, it is not only suitable for DSO imaging, but also for solar, lunar and planetary photography.

    IMX585 Sensor

    4K Sony CMOS sensor with a 1/1.2″ format and 2.9µm pixels.

    4K Resolution

    High Resolution 3840 x 2160 images (8.29MP).

    STARVIS 2 Technology

    Enhances sensitivity and dynamic range, delivering images with exceptional clarity and low noise.

    High Frame Rate

    Achieves 47fps at full resolution in high-speed mode, making it ideal for deep-sky, planetary, solar, and lunar imaging.

    Large Full Well Capacity

    38.7ke-, nearly three times that of the IMX485 sensor, reducing overexposure and improving signal-to-noise ratio.

    Low Read Noise

    As low as 0.7e with High Conversion Gain (HCG) mode enabled, maintaining high dynamic range at high gain settings.

    Quantum Efficiency (QE)

    The ASI585MM Pro monochrome camera features an impressive peak quantum efficiency (QE) of up to 91%, ensuring exceptional light-gathering capability. Its enhanced sensitivity in the near-infrared (NIR) range makes it particularly well-suited for capturing broadband targets with strong NIR signals, such as M51 (Whirlpool Galaxy) and M83 (Southern Pinwheel Galaxy). Additionally, this increased NIR performance is ideal for planetary and lunar imaging when paired with an IR-Pass filter, allowing for sharper images by reducing the effects of atmospheric turbulence.

    ZWO ASI585MM Quantum Efficiency
    ASI585MC Pro - No Amp Glow

    Zero Amp Glow

    The camera's hardware eliminates amp glow, even during long exposures and at high gain, ensuring clean and smooth dark frames.

    Two-Stage TEC Cooling

    Integrated with a powerful two-stage TEC cooling system, the ASI585MM Pro can reduce the CMOS sensor temperature by up to 35°C below ambient, significantly reducing the dark current. Thereby, the improvement in signal to noise ratio (SNR) will result in clearer, sharper images of the deep sky, even with long exposures of hundreds of seconds.

    ASI585MM Pro - TEC Cooling
    ASI585MM Pro - DDR3 Buffer

    DDR3 Buffer

    The ASI585MM-P boasts a 512MB DDR3 memory buffer, enhancing performance and efficiency. This buffer accelerates data transfer and processing during image capture, reducing the risk of data loss or corruption. It also alleviates strain on the host computer's resources, ensuring smoother operation and maximizing creative potential during high-speed imaging sessions.

    Versatile Connectivity

    The camera includes many ports for convenient connection of additional equipment like a filter wheel, a guide camera or a motorized focuser.

    • 1x USB3.0 for high speed data transfer
    • 2x USB2.0 ports for additional equipment
    • 1x 12V 2.1 x 5.5mm power port to power the camera
    ASI585MM Pro USB Ports

    Wide Application Range

    With its small pixel size, TEC cooling and high framerate, the ASI585MM-P is suitable for deep-sky objects (DSOs) and planetary, solar, and lunar imaging, making it an all-in-one solution for astrophotographers.

    ZWO ASI585MM Thor Helmet ZWO ASI585MM Moon ZWO ASI585MM Moon

    Low Read Noise, High Dynamic Range

    The HGC high gain mode automatically activates at gain 252 to reduce read noise and maintain dynamic range, offering flexibility for a variety of imaging scenarios.

    ZWO ASI585MM Dynamic Range, noise, full well and gain charts

    Low Dark Current

    The ASI585MM Pro, already featuring a low dark current, demonstrates even further reduced dark current when cooling is utilized. Check the diagram below to view the significant reductions achieved with the cooling system.

    Please note that the Delta T of 35°C is validated under an ambient temperature of 35°C and may vary with prolonged cooling system operation or changes in ambient temperature.

    ZWO ASI585MM DDark Current Graph
