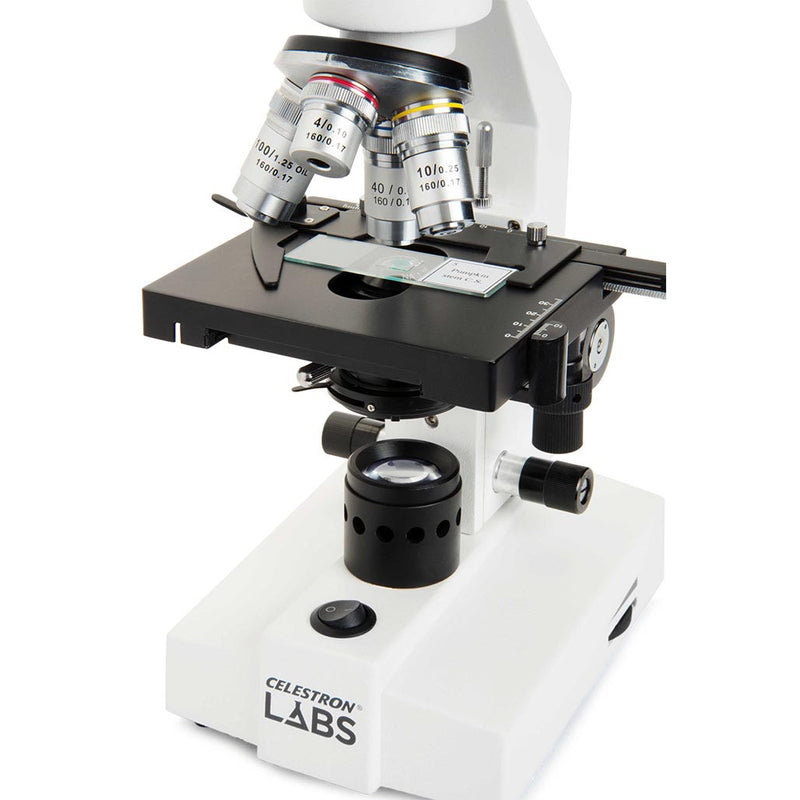

What is the 100x immersion objective on the CM2000CF used for?
The 100x objective is a high-resolution lens that requires a drop of immersion oil between the lens and the slide cover slip. This technique prevents light refraction, increasing the numerical aperture and allowing for much finer detail to be resolved. It is essential for observing very small specimens like bacteria, yeast cells, or the intricate details on the included Testis, sec. slide.

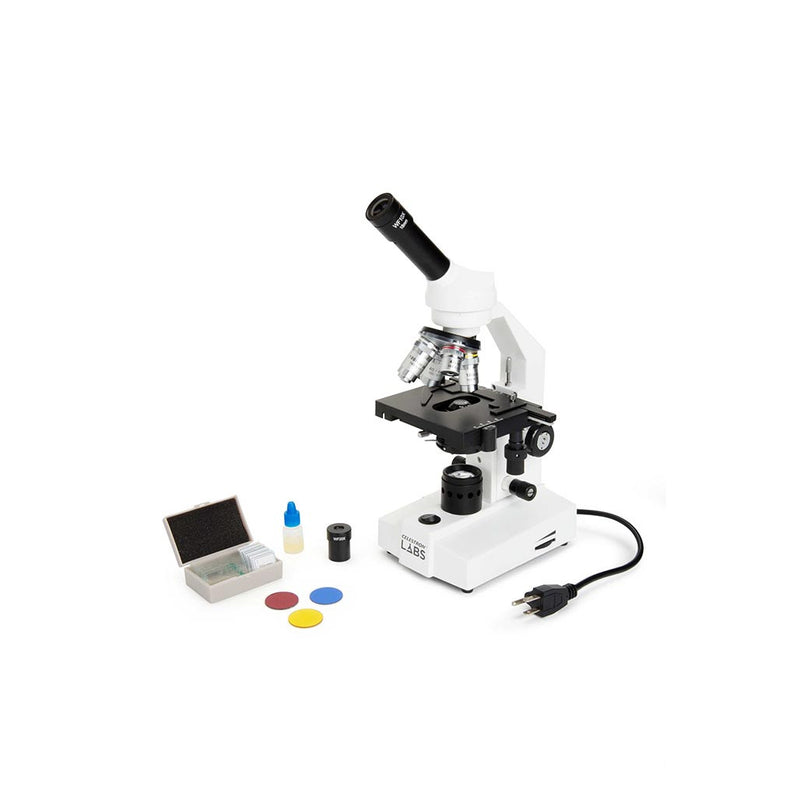

How do I use the color filters included with the Celestron CM2000CF?
The filters are placed in the holder located on the bottom of the Abbe condenser. They are used to increase contrast and bring out detail, especially in unstained or lightly stained specimens. The blue filter is often used to approximate natural daylight for photography, while the green filter can enhance the visibility of cellular structures when using achromatic objectives.
Is the CM2000CF suitable for a classroom setting?
Yes, its all-metal construction makes it durable for shared use. The 360° rotatable head is particularly useful, as an instructor can turn the eyepiece towards students without moving the microscope and disturbing the specimen. The included 10x eyepiece with a pointer is also ideal for educational settings, allowing a teacher to precisely indicate features of interest.

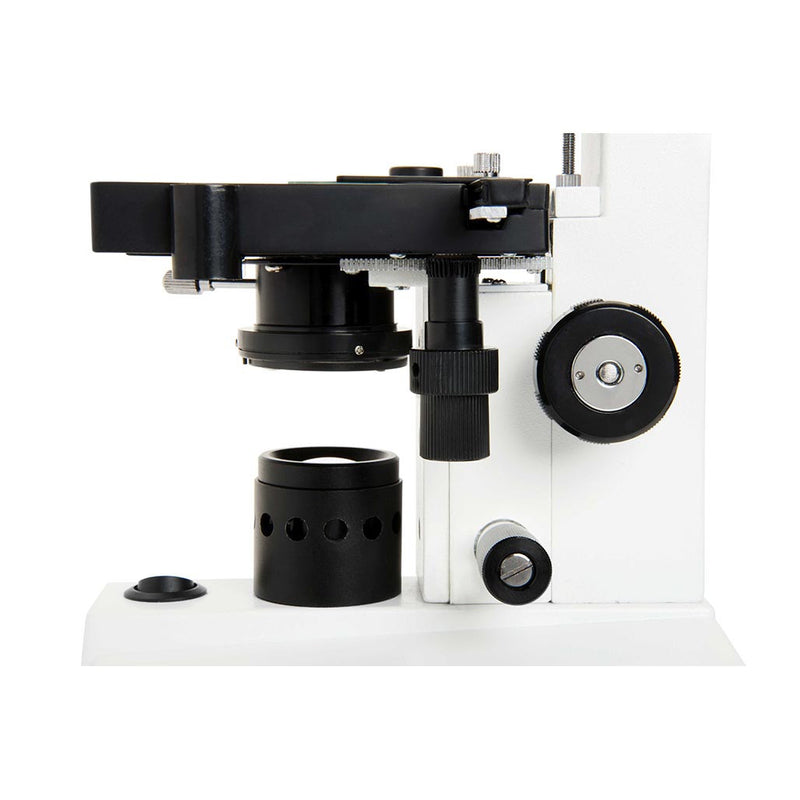

What does the 1.25 N.A. Abbe condenser do for the CM2000CF?
The N.A. (Numerical Aperture) of 1.25 indicates a high-quality condenser capable of concentrating a sharp cone of light onto the specimen. Paired with the iris diaphragm, it gives you full control over the brightness, contrast, and depth of field of the image. This is a significant advantage over microscopes with a simple disc diaphragm or no condenser at all, especially at magnifications of 400x and above.
Can I view live organisms like Spirogyra from the included slides with the CM2000CF?
The included Spirogyra slide is a prepared, permanently mounted specimen. To view live organisms, you would need to create a "wet mount" slide. The CM2000CF is an excellent tool for this; its adjustable LED illumination provides cool light that won't harm living samples, and the mechanical stage allows you to follow moving organisms across the slide.
What is the highest useful magnification for the CM2000CF?
While the microscope can achieve 2000x magnification, the maximum useful magnification is generally limited by the resolving power of the optics, which is determined by the numerical aperture of the objective. For the 100x oil immersion objective, magnifications around 1000x will typically provide the most resolved detail. The 2000x setting offers higher image scale but may not reveal additional information, a phenomenon known as "empty magnification."
