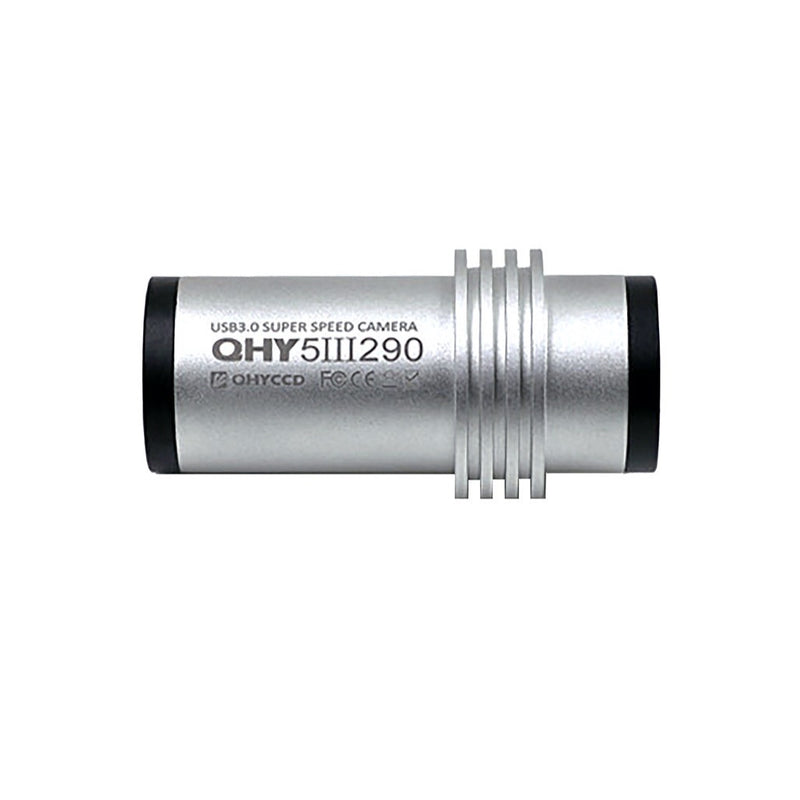

QHYCCD QHY5III290M Mono

QHYCCD QHY5III290M Mono

by QHYCCD
SKU QHY-QHY5III290M
$0
$329.00 USD - $329.00 USD
$329.00
$329.00 USD - $329.00 USD
$329.00 USD
Availability:
Backordered
Contact us to know when we will receive our next ones!

International Shipping

More information

Full HD Back-illuminated, Ultra-low Read Noise CMOS Camera

The QHY5-III series cameras are USB3 super-speed cameras and guiders. They can be used in a standard 1.25-inch eyepiece holder and have an adjustable location ring for confocality with an eyepiece. All QHY5III series cameras come in a very small but powerful package!

The QHY5III290 uses the SONY STARVIS Exmor R back-illuminated CMOS sensor. STARVIS means you can see very dim stars in real time video. The QHY5III290 can capture magnitude 9 stars with a 50mm F/1.4 C-mount lens. Compared to the IMX236 sensor, for example, the IMX290 has twice sensitivity for visible light and three or more times the sensitivity in near infrared. The QHY5III290 also has ultra low read noise. The back-illumination and low read noise make this camera an ideal video astronomy camera. The small 2.9um pixel size is also ideal for planetary imaging. The QHY5III290 has a fast USB 3.0 interface and produces 135FPS at full HD output . The camera has 10/12-bit ADC and it outputs an 8-bit or 12-bit image. Available in both mono (QHY5III290M) and color (QHY5III290C) versions.

Specifications

Model QHY5III290
CMOS Sensor IMX290（BSI)
Pixel Size 2.9um
Pixel Array 1920*1080
Effective Pixels 1.2 Megapixels
Sensor Optical Format 1/2.8-inch
Frame Rate@Full Frame 135FPS
Frame rate @ROI readout 220FPS@
960*540
460FPS@
480*270
Ful Well Capacity 15.7ke-
Readout Noise 0.75e to 3.2e
A/D 12-bit
Shutter Type Electric Rolling Shutter
Color Version QHY5III290C
Mono Version QHY5III290M
Computer Interface USB3.0
Guide Port Standard 6-pin RJ11 Guide Port
Telescope Interface 1.25-inch, CS mount
Weight 87g
