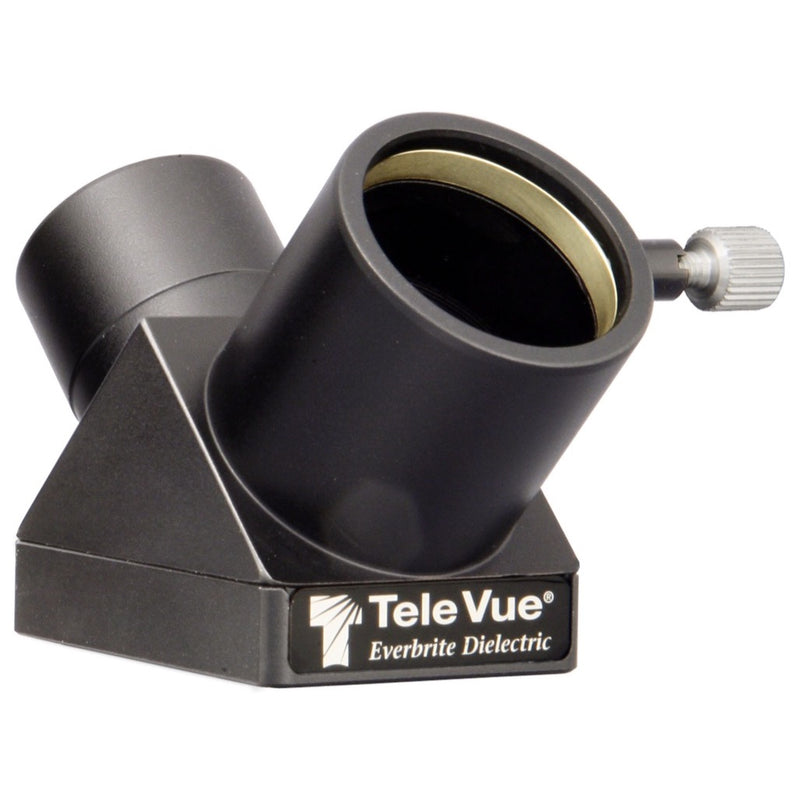

Tele Vue 90º Everbrite Diagonal - 1.25"

The Everbrite Dielectric Coating Advantage

At the heart of the Everbrite is a mirror with a sophisticated dielectric coating. Unlike aluminum coatings that tarnish and lose reflectivity over time, the Everbrite's 50-layer coating provides 99% reflectivity across the visible spectrum and is impervious to aging. This translates directly to a brighter image at the eyepiece, allowing you to detect fainter stars and more subtle details in nebulae and galaxies.

The coating's durability means you can clean the mirror without fear of scratching or degrading its performance. This ensures your view will be just as bright and crisp in a decade as it is on the first night. The result is a consistent, high-fidelity image that honors the light-gathering power of your telescope.

Thermally Stable Pyrex Mirror Substrate

A mirror's coating is only as good as the surface it is deposited on. Tele Vue uses a low-expansion Pyrex substrate for the Everbrite mirror, which is ground and polished to a 1/10th wave flatness. The key benefit of Pyrex is its thermal stability; it does not change shape as temperatures drop during an observing session.

This stability prevents the introduction of optical errors like astigmatism, which can soften fine planetary detail. When you are pushing the magnification on Jupiter's cloud belts or trying to split a tight double star, the Everbrite's thermal integrity ensures the image remains sharp and free of distortion caused by cooling optics.

A Foundation of Mechanical Precision

The Everbrite's body is machined from a single, solid block of aluminum. This unibody construction guarantees that the mirror is permanently aligned with the eyepiece and telescope barrels, eliminating concerns about collimation drift. The rigid structure ensures your eyepieces are held perfectly on-axis, which is critical for maintaining sharpness, especially in faster focal ratio telescopes.

Protecting Your Eyepiece Investment

Standard diagonals use a simple set screw that digs into the eyepiece barrel, causing scratches and potential alignment issues. The Tele Vue Everbrite diagonal features a non-marring brass clamp ring. When you tighten the lock screw, this soft metal ring gently and evenly compresses around the eyepiece barrel, securing it firmly without leaving a mark and ensuring perfect centering in the optical path.

Maximizing Contrast with Stray Light Control

Image contrast is just as important as brightness. The interior of the Everbrite diagonal is machined with fine anti-reflection threads and blackened to a matte finish. This design traps any stray light that enters the diagonal, preventing it from reflecting off internal surfaces and washing out the image. The practical effect is a darker background sky, which makes faint objects stand out more clearly against the blackness of space.

Designed for Secure, Real-World Use

The 1.25" barrel that inserts into your telescope's focuser is tapered with a safety groove. This small but critical feature prevents the diagonal from accidentally slipping out of the focuser if the lock screw becomes loose. The barrel is also threaded to accept standard 1.25" filters, allowing you to easily add a moon filter or nebula filter to your observing chain without having to attach it to every individual eyepiece.

The Everbrite in Practice: Observing the Orion Nebula

The benefit of 99% reflectivity becomes immediately apparent on a target like the Trapezium region within the Orion Nebula (M42). With a standard aluminum diagonal, the faint, wispy outer loops of the nebula can be lost in the noise. Through the Everbrite, these structures appear with more definition. The four primary stars of the Trapezium are rendered as sharp, distinct points of light, and with good seeing, the fainter E and F stars become more accessible due to the improved brightness and contrast.

While a premium diagonal cannot increase your telescope's aperture, it ensures that every photon collected by your main optic reaches your eye. This is the Everbrite's primary function: to be a transparent link in the optical chain. Its limitation is simply that it cannot correct for poor seeing or a poorly collimated telescope, but it will reveal the true performance ceiling of your instrument.
