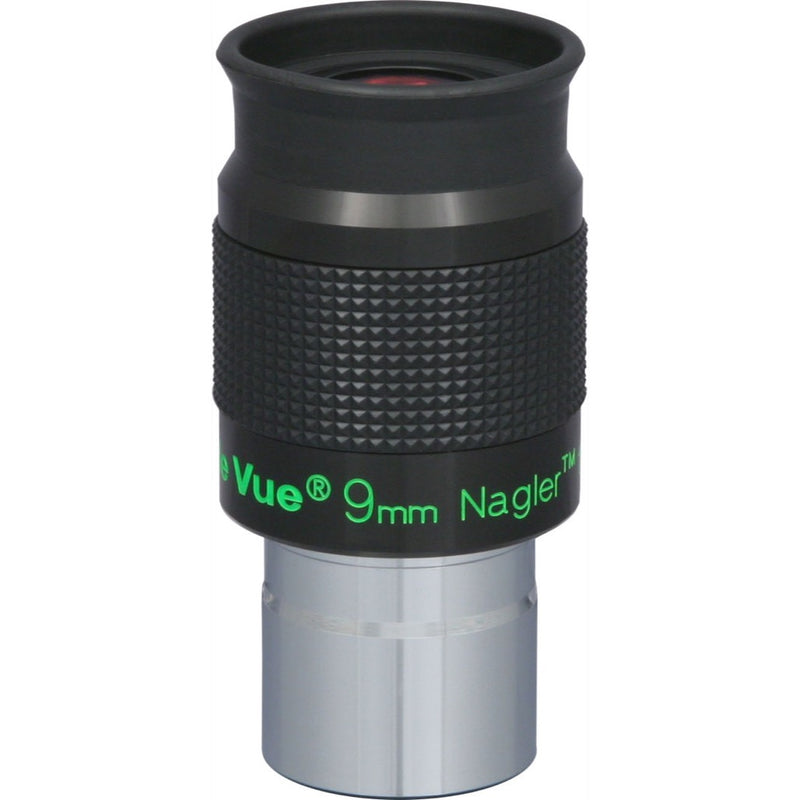

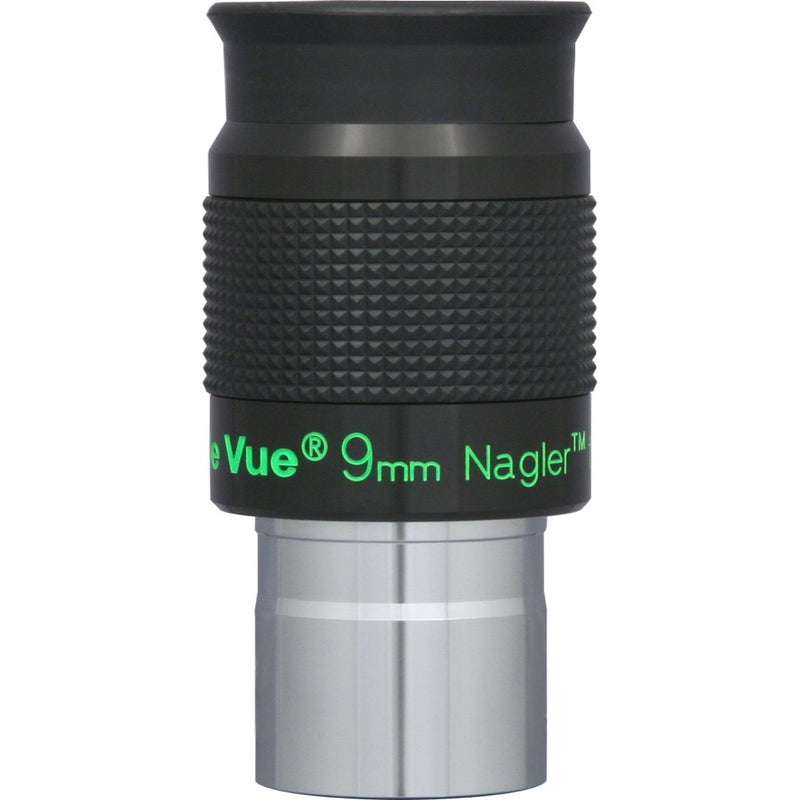

Tele Vue Nagler T6 9mm 82° Eyepiece - 1.25"

The Seven-Element Nagler Optical Engine

At the heart of the 9mm T6 is Al Nagler's renowned seven-element optical design. This specific arrangement of lenses, including high-index glass, is what makes the 82° apparent field possible while controlling for aberrations like astigmatism and field curvature, even in fast f/ratio telescopes. The result is an image that presents sharp, point-like stars across the majority of the expansive field of view.

This level of correction means you can study objects for longer without constantly re-centering them. When observing the core of the Hercules Globular Cluster (M13), individual stars resolve into sharp pinpricks not just in the center, but deep into the surrounding field, creating a true sense of immersion that simpler designs cannot match.

An Immersive 82° Apparent Field of View

The 82° apparent field of view is the defining feature of the Nagler experience. This wide vista fills your eye's field of perception, causing the eyepiece body to effectively disappear. The effect is less like looking through a telescope and more like looking out of a window into space, which is why it earned the "spacewalk" nickname.

On a target like the Orion Nebula (M42), the 9mm focal length in a moderately-sized Dobsonian provides enough magnification to resolve the Trapezium stars cleanly, while the 82° field is wide enough to frame the surrounding nebulosity. This allows you to see the object within its greater context, a quality often lost with narrow-field planetary eyepieces.

Contrast-Optimized Coatings and Baffling

Every air-to-glass surface in the Nagler T6 is fully multi-coated to maximize light throughput and prevent ghosting or flare. Furthermore, the lens edges are meticulously blackened to absorb stray light that would otherwise reduce contrast. This attention to internal reflection control is critical for teasing out faint details.

When observing a bright object like Jupiter, these features directly translate to seeing more subtle detail. You will find it easier to distinguish between faint cloud belts and pick out low-contrast ovals and festoons. The background sky remains truly black, making the planet's disk appear to float in space with enhanced definition.

Practical Ergonomics and Eye Relief

The Nagler T6 series was designed to be parfocal, meaning you should need little to no refocusing when switching between different focal lengths in the series. The 9mm model provides 12mm of eye relief, which is comfortable for most observers who do not require eyeglasses. A soft, fold-down rubber eyeguard helps position the eye correctly and blocks stray light from the side.

The main trade-off for its compact size and wide field is the eye relief. Observers who must wear glasses to correct for significant astigmatism may not be able to see the entire 82° field at once. For those users, the Tele Vue Delos line, with its 20mm of eye relief, would be a more suitable choice, though it offers a smaller 72° apparent field.

A Versatile 1.25" Barrel Design

The standard 1.25" barrel makes the Nagler T6 9mm compatible with virtually any telescope, from small refractors to large Dobsonians. It includes standard 1.25" filter threads for use with nebula or planetary filters. A machined undercut on the barrel helps secure the eyepiece in focusers with compression rings or thumbscrews, reducing the risk of it accidentally slipping out.

Choosing Your Nagler T6 Magnification

The Nagler T6 series offers a range of focal lengths designed to work together as a system. The 9mm hits a sweet spot for many observers, providing a significant step up in magnification from a typical low-power eyepiece.

• Nagler T6 13mm: The next step down in magnification, ideal for framing larger deep-sky objects or for use on nights with less-than-perfect seeing.
• Nagler T6 9mm: The subject of this page, this is often the go-to choice for globular clusters, planetary nebulae, and detailed views of Jupiter and Saturn.
• Nagler T6 7mm: A higher-power option for nights of good seeing when you want to push magnification on planets, the moon, or for splitting tight double stars.

For an observer with an 8" f/6 Dobsonian, the 9mm T6 yields 133x, a perfect magnification for resolving the core of M13 or seeing detail in Saturn's rings, including the Cassini Division. It provides a noticeable jump in image scale without being so powerful that it is often unusable due to atmospheric turbulence.
