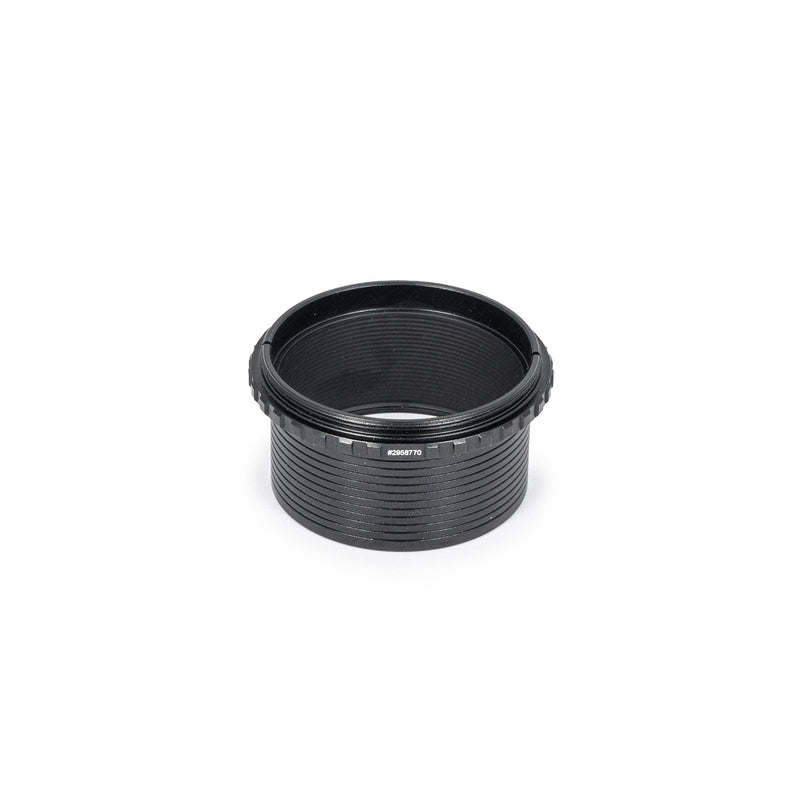

2" Nosepiece to M54a – with Safety-Kerf
The Baader 2" Nosepiece to M54a adapter provides a secure, standardized connection from any 2" focuser or visual back to the M54 thread system. This adapter features an external M54 thread, making it a critical component for attaching modern correctors and accessories that use this larger format to avoid vignetting.
The M54 Thread: A Wider Path for 2" Imaging Systems
The M54 thread offers a significantly larger clear aperture than the older M42 T-thread standard. This makes the 2" Nosepiece to M54a adapter essential for building imaging trains with full-frame sensors, as it minimizes the risk of vignetting that can occur when light from the edge of the field is clipped by a smaller M42 connection.
Baader's Safety-Kerf: A 2" Barrel That Resists Slipping
This nosepiece features Baader's proprietary Safety-Kerf design—a series of shallow kerfs along the 2" barrel that give additional grip. This design helps prevent the nosepiece, and your expensive camera or accessories, from slipping out even if the clamp screw loosens slightly.
-
What is the Baader 2" Nosepiece to M54a adapter used for?
This adapter allows you to insert accessories that have a female M54 thread into a standard 2" focuser, visual back, or diagonal. It's commonly used to connect coma correctors, field flatteners, and large-format cameras to a telescope's 2" drawtube.
What is a "Safety-Kerf" and how does it prevent accessories from falling?
The Safety-Kerf is a series of machined grooves on the 2" barrel. Unlike a simple smooth barrel or a traditional undercut, the kerfs provide multiple contact points for a compression ring to grip. This creates a much more secure, slip-free connection that resists rotation and prevents the adapter from pulling out of the focuser if a thumbscrew backs out slightly.
I have a ZWO camera with an M54 interface. Will this adapter let me insert it into my Celestron SCT's 2" visual back?
Yes. If your ZWO camera has a female M54 thread for its primary connection (common on larger cooled cameras), this adapter's external M54 thread will screw directly into it. This converts your camera's threaded body into a standard 2" nosepiece, ready to slide into the 2" visual back on your SCT.
Why should I use an M54 adapter instead of a standard 2" T-adapter (M42)?
The primary reason is to prevent vignetting with large camera sensors. The M54 thread has a larger clear aperture than the M42 T-thread. For imagers using full-frame (36x24mm) or larger APS-C sensors, an M54 connection provides a wider light path, ensuring the stars at the corners of your image receive full illumination.
Is the M54 thread on this adapter male or female?
The thread on this adapter is M54 male (external). It is designed to thread into an accessory that has a female M54 port.
-
| Net weight (kg) |
0.03 |
| Inner Diameter / Clear Aperture (mm) |
47 mm |
| Outer Diameter |
59 mm |
| Type of Adapter |
Nosepiece |
| Optical length (mm) |
4.3 mm |
| Outer Connection (eyepiece/-camera-sided) |
M54 x 0.75 |
| Inner Connection (lens sided) |
M48 |
| Outer Connection (lens sided) |
ø 2" (50.8mm) |
| Adapters Family |
M54 System |
| Telescope-side connection |
2" Barrel with M48 Female Filter Thread |
| Camera-side connection |
M54x0.75 Male |
-
-
