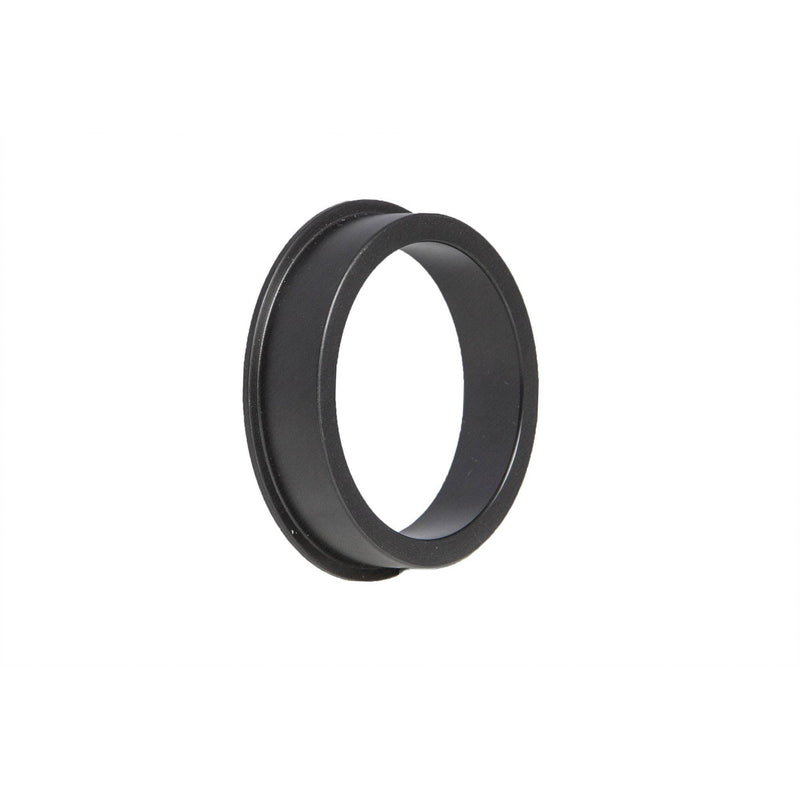

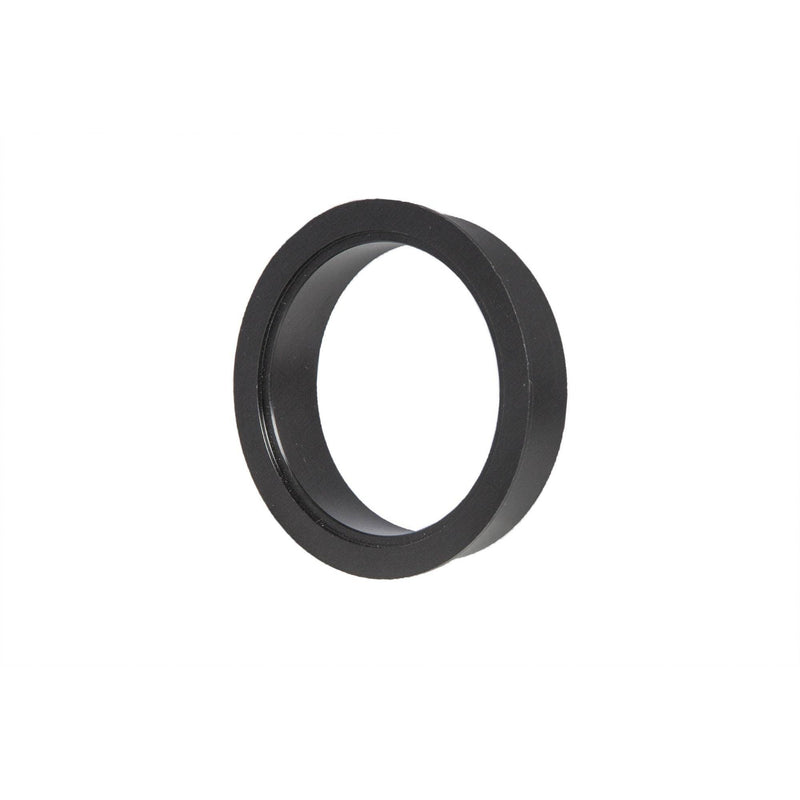

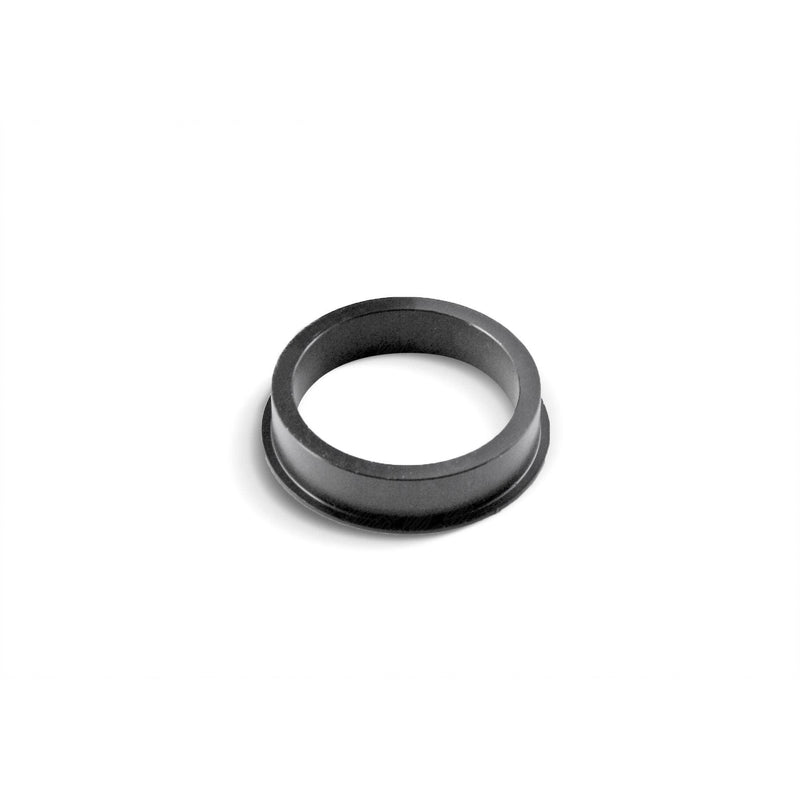

What is the purpose of the Alan Gee II Centering Ring for SC 9¼"?
Its sole purpose is to adapt the Baader Alan Gee Mark II Telecompressor for use with the larger Celestron 9.25" Schmidt-Cassegrain telescope. It ensures the telecompressor is held perfectly on the optical axis, which is crucial for preventing image defects.
Why is a specific centering ring needed for the Alan Gee II on a 9.25" SCT?
The baffle tube of the Celestron 9.25" SCT (46 mm) is wider than that of the 8" model (37 mm). This ring compensates for that size difference, ensuring the telecompressor's optical elements are precisely centered with the telescope's optics to avoid introducing coma and astigmatism.
Is this ring compatible with Celestron 8" SCTs or EdgeHD models?
No. This ring is specifically for the non-EdgeHD Celestron 9.25" SCT. The Celestron C11 and C14 take the Alan Gee II without a ring. The standard Alan Gee II Telecompressor attaches directly to a C8 without this ring. EdgeHD models have a different optical design and require different reducer solutions.
How do I install the Alan Gee II Centering Ring on my Celestron 9.25" telescope?
Installation is straightforward. Insert the Alan Gee II into the centering ring, then insert both fully into the baffle tube of the telescope. Clamp it in place as usual with the Celestron Visual Back or another 2"/T-2 adapter.
Can I use the Alan Gee II Telecompressor without this centering ring on my C9.25?
No, you cannot. Attempting to attach the telecompressor without this ring will result in a loose fit and a severely misaligned optical train. This will produce poor quality images with significant aberrations. The ring is a mandatory component for these specific telescopes.
Does this Alan Gee II Centering Ring work with other telecompressors?
This ring is designed exclusively for the Baader Alan Gee Mark II Telecompressor. It is not intended to work with reducers from other manufacturers, as thread specifications and spacing requirements can vary significantly.
