Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)
Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)
Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)
Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)
Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)
Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)
Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)
Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)
Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)

Baader Planetarium Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)

par Baader Planetarium
UGC BAA-1501660
$134.00 - $134.00
$134.00
$134.00 - $134.00
$134.00
Égalisation de prix!
  • 3-inch Losmandy D-style dovetail profile
  • 230mm (9") overall length
  • Flat top surface for direct mounting
  • Compatible with Baader 3" clamps
  • Ideal for TEC and other flat-base tube rings
En rupture temporaire
Alerte de retour en stock
Info disponibilité
Admissible à la livraison GRATUITE aux USA pour les commandes de plus de 350$.
  • Description
  • FAQ
  • Specifications
  • In the Box
  • Downloads
  • Warranty

  • Dovetail Bar 3", 230mm (9") – for Baader & TEC (flat)

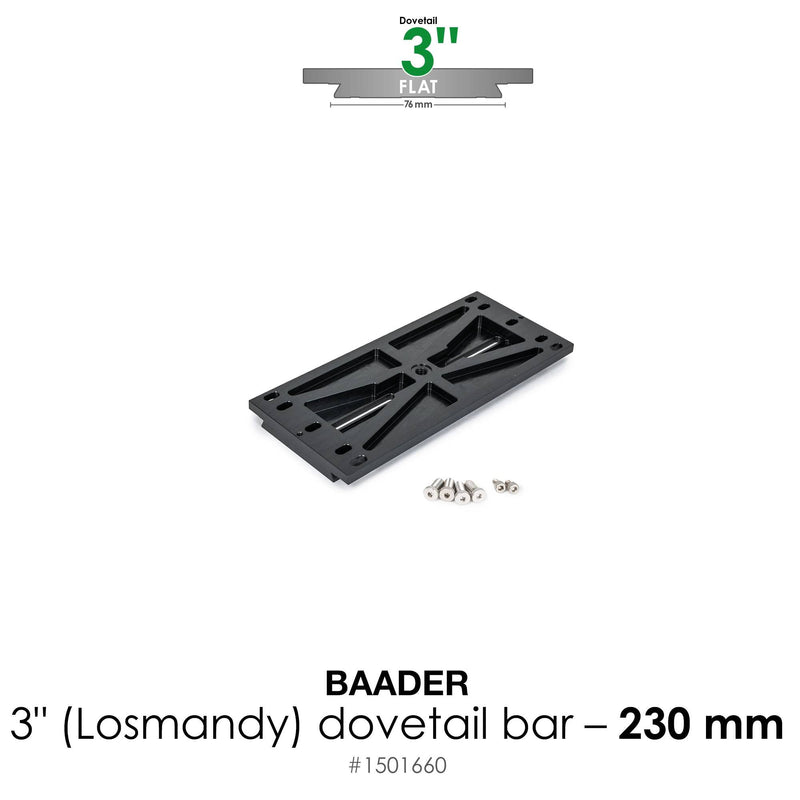

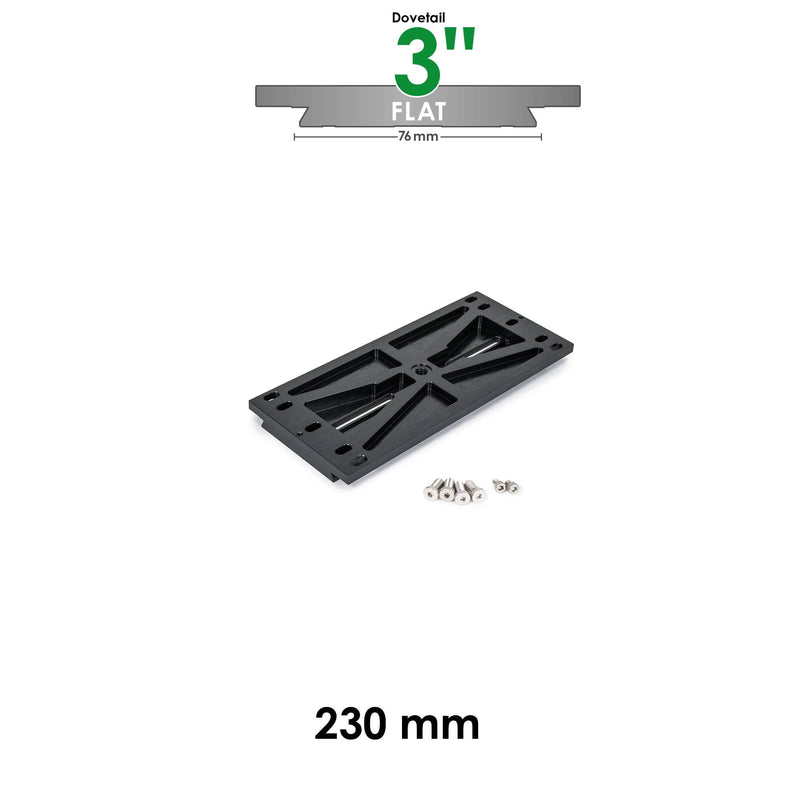

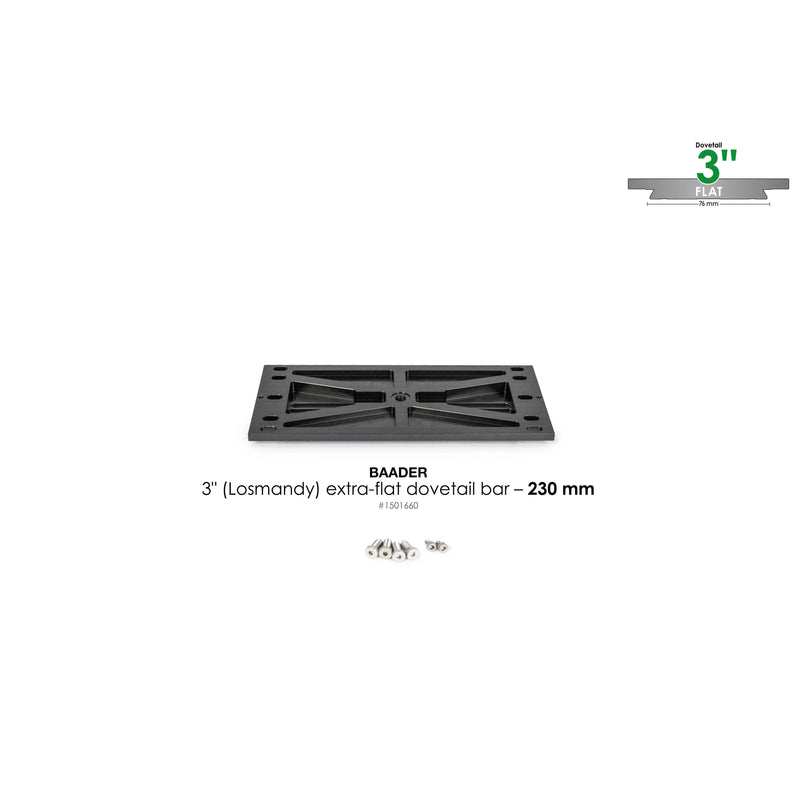

    The Baader 3" Dovetail Bar provides a rigid, 230mm (9") mounting platform based on the industry-standard Losmandy D-style profile. This bar is engineered specifically for a secure, flexure-free connection with Baader's 3" dovetail clamps and features a flat top surface for direct integration with Telescope Engineering Company (TEC) tube rings and other flat-base mounting hardware.

    The Baader 3" Standard: A Losmandy-Profile for Maximum Rigidity

    This dovetail bar utilizes the wide 3" Losmandy "D" plate profile, which offers a significantly larger contact area than smaller Vixen-style bars. This wider base prevents torsional flex and rotational slipping, especially when mounting heavier or longer optical tubes. Baader's precision machining ensures a perfect fit with their corresponding 3" clamps, creating a solid mechanical lock between your telescope and mount.

    230mm (9") Length: Balancing Compactness and Support

    At a length of 230mm (9"), this dovetail bar is an excellent match for small-to-medium aperture refractors, compact Schmidt-Cassegrains, and wide-field imaging systems. It provides enough length to achieve proper balance by sliding the telescope forward or backward in the saddle, without adding unnecessary weight or extending far beyond the tube rings of a shorter optical tube.

    Flat Mounting Surface: Designed for TEC Rings and Plate Systems

    Unlike dovetail bars with a curved radius to match a specific telescope tube, this bar features a completely flat top surface. This design is essential for hardware that requires a flat mounting point, such as TEC tube rings, camera tripod heads, or custom adapter plates. The flat profile ensures your equipment sits flush without rocking or introducing stress on the mounting bolts.

    3" Losmandy-Style vs. Vixen-Style: Understanding the Stability Difference

    Choosing the right dovetail system is critical for stable imaging and observing. The primary difference between the two main standards comes down to width and contact surface.

    • 3" Losmandy-Style (This Bar): The wider profile provides superior resistance to twisting forces (torsion), making it the standard for heavier imaging payloads and larger telescopes where even minor flexure can ruin an exposure.
    • Vixen-Style (~1.75" wide): Lighter and more compact, Vixen-style bars are well-suited for smaller "grab-and-go" telescopes, but can be a source of flexure with heavier or longer instruments.

    Upgrading to a 3" system like this Baader dovetail bar is one of the most effective ways to improve the mechanical stability of your entire imaging setup.

  • What telescopes are a good match for the Baader 230mm dovetail bar?

    The 230mm (9") length is ideal for compact instruments where a long bar would be cumbersome. It's an excellent choice for 80-102mm refractors, 5-6" Schmidt-Cassegrains like the Celestron C5 or C6, or for mounting a wide-field camera lens assembly securely on a German equatorial mount.

    Is this Baader 3" bar compatible with all Losmandy-style clamps?

    Yes, this bar is manufactured to the standard Losmandy "D" plate specification and will fit in clamps from Losmandy, Celestron (CGEM/CGE), Sky-Watcher (EQ8), and other manufacturers that use the 3" D-style saddle. It is specifically optimized for a perfect fit with Baader's own 3" clamps.

    How do I attach my tube rings to this flat Baader dovetail bar?

    This bar is designed to be drilled by the user to match the specific hole spacing of their tube rings or other hardware. You will need to carefully measure the center-to-center distance of the mounting bolts on your rings, mark the bar, and then drill and tap the appropriate holes. Its flat surface makes it much easier to work with than a radiused bar.

    Why would I choose this flat Baader bar over one with a radius?

    You should choose this flat bar if your tube rings, like those from TEC, have a flat base. A radiused bar is designed to conform to the curve of an optical tube for direct mounting, while a flat bar provides a stable, flush surface for rings and other accessories that are not curved.

    Can I use this 230mm bar for a dual-saddle setup?

    While possible, the 230mm (9") length is quite short for mounting two telescopes side-by-side. It is better suited as the primary mounting plate for a single, compact optical tube. For dual-saddle configurations, a longer bar (300mm or more) is generally recommended to provide adequate spacing and balance adjustment.

    Is the Baader 3" dovetail bar heavy?

    Baader dovetail bars are machined from aluminum to be as lightweight as possible without compromising stiffness. While wider and more robust than a Vixen-style bar, the weight is minimal and a necessary component of creating a rigid, flexure-free mounting system for astrophotography.

  • Dovetail Profile 3" Losmandy D-Style
    Length 230mm (9")
    Top Surface Flat
    Compatibility Baader 3" Clamps, TEC Rings
  • Baader Planetarium 2-Year Warranty
