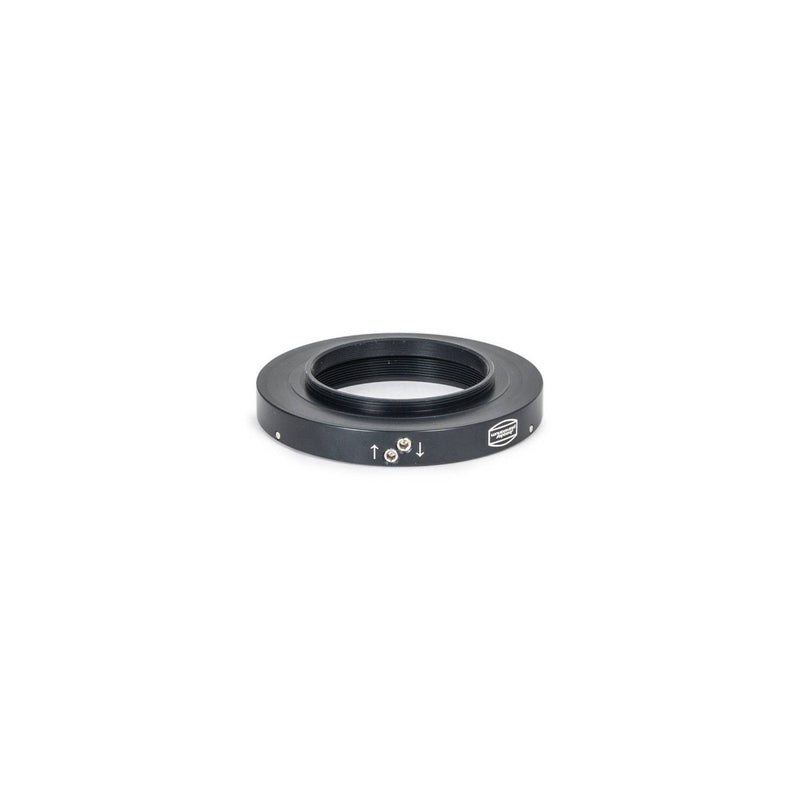

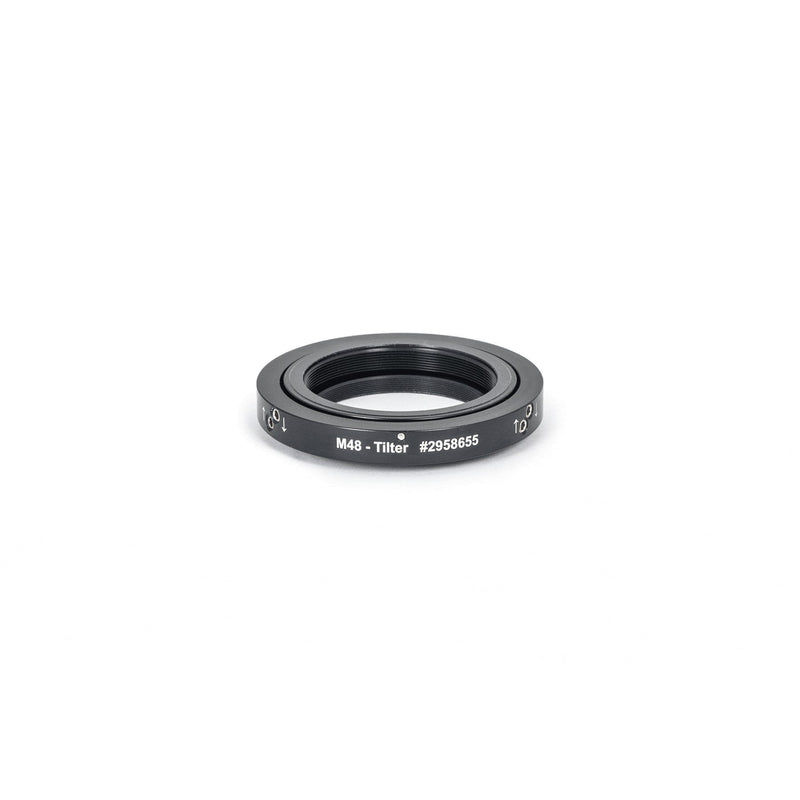

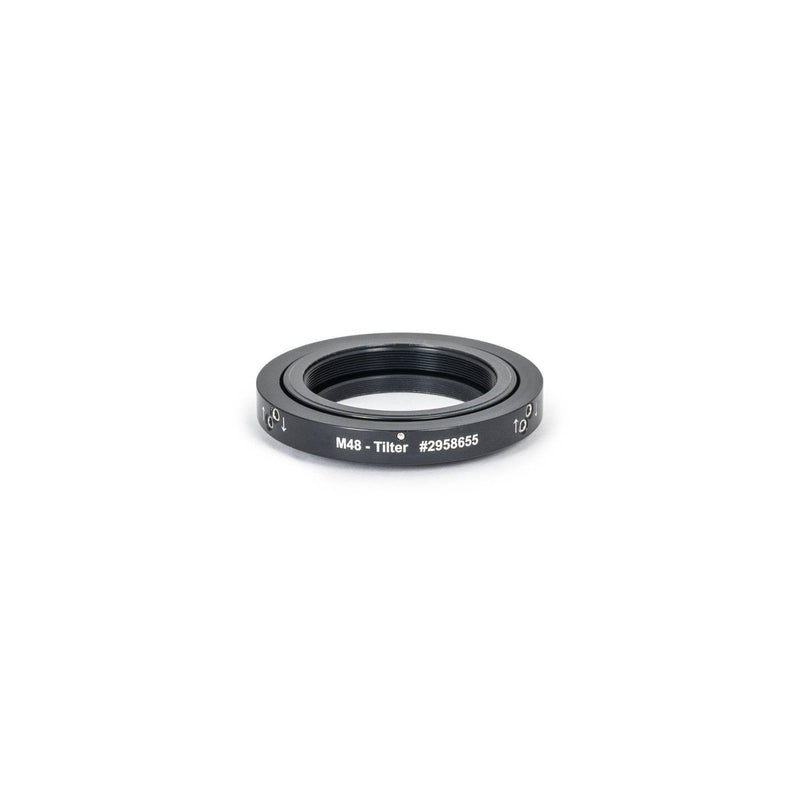

Baader Planetarium M48-Tilter (0 - 1° image correction)
Baader Planetarium M48-Tilter (0 - 1° image correction)
Baader Planetarium M48-Tilter (0 - 1° image correction)
Baader Planetarium M48-Tilter (0 - 1° image correction)
Baader Planetarium M48-Tilter (0 - 1° image correction)

Baader Planetarium M48-Tilter (0 - 1° image correction)

par Baader Planetarium
UGC BAA-2958655
$238.00 - $238.00
$238.00
$238.00 - $238.00
$238.00
Égalisation de prix!
  • Provides 0 to 1° of tilt adjustment
  • Corrects sensor-to-focal-plane alignment
  • Standard M48 x 0.75 female and male threads
  • Minimizes corner star elongation
  • Essential for fast optical systems and large sensors
En rupture temporaire
Alerte de retour en stock
Info disponibilité
Admissible à la livraison GRATUITE aux USA pour les commandes de plus de 350$.
  • Description
  • FAQ
  • Specifications
  • In the Box
  • Warranty

  • M48-Tilter (0 - 1° image correction)

    The M48-Tilter provides up to 1° of precise mechanical adjustment to eliminate field tilt from your imaging train, ensuring sharp stars across the entire frame. Designed for standard M48 threaded accessories, it allows you to perfectly square your camera sensor to the focal plane by correcting for misalignment within a 0 to 1° range.

    Correcting Field Tilt with 0-1° Precision

    Field tilt is the primary cause of elongated or soft stars in one or more corners of an astrophoto, even when the center is perfectly focused. This M48-Tilter directly addresses this by allowing you to make micro-adjustments to the sensor's angle relative to the incoming light cone. The 0 to 1° adjustment range is subtle but powerful enough to compensate for common sources of tilt, such as focuser sag or minor machining tolerances in your equipment.

    • Achieve Corner-to-Corner Sharpness: By nullifying tilt, you can achieve a uniformly flat and focused field, a critical requirement for high-resolution imaging and astrometric work.
    • Manual Adjustment Process: Dialing in the perfect correction is a manual process that requires taking test exposures, but the result is a dramatic improvement in image quality that cannot be achieved through software.

    M48 Threads for a 48mm Unvignetted Field

    This tilter uses the M48 x 0.75 thread standard, often referred to as the 2-inch filter thread. This larger format is essential for modern imaging setups that use large sensors, from APS-C to full-frame, as well as for fast optical systems with demanding field correctors.

    The wider aperture of the M48-Tilter prevents the vignetting (darkening of the corners) that smaller M42 or T2-thread tilters can introduce into the light path. It ensures the entire image circle produced by your telescope and corrector fully illuminates your camera's sensor without obstruction.

  • What problem does the M48-Tilter solve in my astrophotos?

    The M48-Tilter corrects for field tilt, which appears as elongated or out-of-focus stars in the corners of your image while the center remains sharp. This is typically caused by a slight misalignment between your camera sensor and the telescope's perfectly flat focal plane.

    Is the 0-1° adjustment range of the M48-Tilter enough for most setups?

    Yes. Field tilt is almost always a very subtle mechanical error. An adjustment of just 1° is a very significant correction at the focal plane and is more than sufficient to square the sensor in most imaging trains, even those with heavy cameras or filter wheels that can cause focuser sag.

    When would I need an M48-Tilter instead of a smaller M42/T2 tilter?

    The M48-Tilter is necessary when you are using cameras with large sensors (APS-C or full-frame) or working with optical correctors that produce a large, well-illuminated image circle. The wider M48 aperture prevents vignetting that a smaller M42 tilter could introduce into the optical path.

    My stars are sharp on the left but stretched on the right side of my images from my full-frame camera and SCT. Will the M48-Tilter fix this?

    This is a classic symptom of field tilt. The M48-Tilter is designed specifically for this situation. By placing it in your M48 imaging train, you can apply a precise counter-tilt to bring the entire field into sharp, uniform focus from edge to edge.

    I'm using a fast f/4 Newtonian with a coma corrector. Can the M48-Tilter help improve my corner stars?

    Absolutely. Fast optical systems like an f/4 Newtonian are extremely sensitive to sensor alignment. Even with a high-quality coma corrector, any slight tilt from focuser droop will be exaggerated in the final image. The M48-Tilter provides the fine adjustment capability needed to perfectly align the sensor with the corrected focal plane.

    Where in my imaging train should I place the M48-Tilter?

    For best results, the M48-Tilter should be placed as close to the camera sensor as possible. This ensures that you are tilting only the camera, not other optical components like reducers, flatteners, or an off-axis guider, which could introduce other aberrations if tilted.

  • Adjustment Range 0 - 1°
    Threads M48 x 0.75 (Female and Male)
  • Standard Manufacturer's Warranty applies.
