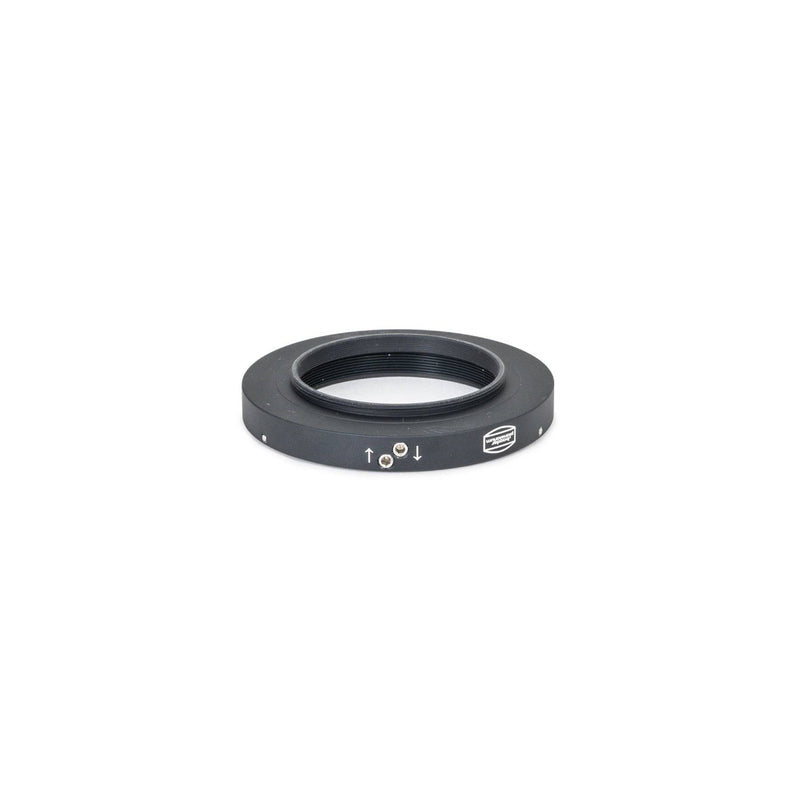

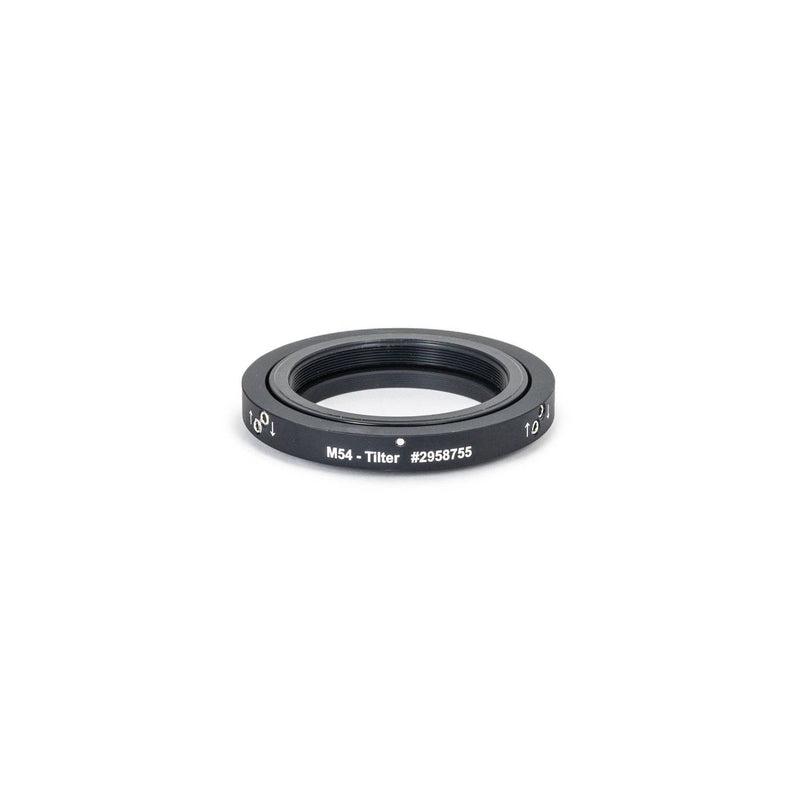

Baader Planetarium M54-Tilter (0 - 1° image correction)
Baader Planetarium M54-Tilter (0 - 1° image correction)
Baader Planetarium M54-Tilter (0 - 1° image correction)
Baader Planetarium M54-Tilter (0 - 1° image correction)
Baader Planetarium M54-Tilter (0 - 1° image correction)

Baader Planetarium M54-Tilter (0 - 1° image correction)

par Baader Planetarium
UGC BAA-2958755
$263.00 - $263.00
$263.00
$263.00 - $263.00
$263.00
Égalisation de prix!
  • 0 - 1° Tilt Adjustment Range
  • M54 Female and Male Threads
  • Corrects Sensor Tilt and Field Curvature
  • Improves Corner Star Sharpness
  • Rigid Connection for Heavy Imaging Trains
En rupture temporaire
Alerte de retour en stock
Info disponibilité
Admissible à la livraison GRATUITE aux USA pour les commandes de plus de 350$.
  • Description
  • FAQ
  • Specifications
  • In the Box

  • M54-Tilter (0 - 1° image correction)

    The M54 Tilter provides up to 1° of precise image plane correction, designed to eliminate sensor tilt and achieve perfectly sharp stars across your entire frame. By enabling fine adjustments from a baseline of 0°, this adapter addresses the mechanical misalignments that cause corner aberrations in otherwise well-collimated optical systems.

    Correcting Field Tilt with 0 - 1° of Fine Adjustment

    Even in high-end imaging setups, minute discrepancies between the focuser, adapters, and the camera sensor can tilt the focal plane, resulting in elongated stars in one or more corners of your image. This M54 Tilter allows you to physically square the camera sensor to the telescope's optical axis. The adjustment range of 0 to 1° is subtle yet powerful enough to correct the most common sources of tilt without introducing other optical problems.

    • M54 Thread Standard: Equipped with M54 male and female threads, this tilter integrates seamlessly into imaging trains using full-frame sensors and large-format correctors, ensuring a wide, secure connection that prevents flexure.
    • Eliminate Corner Aberrations: By precisely adjusting the tilt, you can transform oblong corner stars into the same sharp, round points you see at the center of the field.
    • Solid Mechanical Design: The construction provides a rigid link in your imaging train, critical for supporting the weight of modern astronomy cameras and filter wheels without sagging.

  • What problem does the M54 Tilter solve in my images?

    The M54 Tilter corrects for a tilted image plane. This issue manifests as sharp stars in one area of your image but elongated, out-of-focus stars in another, typically an opposite corner. It physically squares your camera's sensor to the telescope's light path, ensuring the entire field is in sharp focus.

    How do I know if I need the M54 Tilter?

    If you have confirmed your telescope's collimation is perfect but you still see consistently elongated stars in the same corners of your images, you likely have sensor tilt. This can be caused by the focuser drawtube, adapter threading, or the camera's own sensor mounting. The M54 Tilter is the tool to correct for these mechanical misalignments.

    Is the M54 Tilter difficult to adjust?

    Adjusting a tilter requires patience and a systematic approach. The process typically involves taking short test exposures, analyzing corner star shapes, making small adjustments to the tilter, and repeating until the field is uniform. While it requires careful work, the result is a dramatically improved image.

    Where in my imaging train should I place the M54 Tilter?

    The ideal placement for the M54 Tilter is as close to the camera sensor as possible. This ensures you are directly correcting the tilt of the sensor itself. Placing it before other components like filter wheels or off-axis guiders is the standard practice.

    My stars are stretched in one corner with my full-frame camera and f/4 Newtonian. Can the M54 Tilter fix this?

    Yes, this is a classic symptom of sensor tilt, which is especially noticeable in fast optical systems like an f/4 Newtonian and with large full-frame sensors. After confirming your coma corrector is correctly spaced and the telescope is well-collimated, the M54 Tilter is the final step to dial in that last bit of correction for perfectly sharp corners.

    Why is the M54 Tilter better than a smaller M48 tilter for imaging the Andromeda Galaxy (M31)?

    For large targets like the Andromeda Galaxy (M31) that fill a full-frame sensor, the larger M54 aperture of this tilter is crucial. A smaller M48 tilter can cause vignetting (darkening of the corners) by constricting the light cone. The M54 connection maintains the full, un-vignetted field provided by your large-format flattener or coma corrector.
