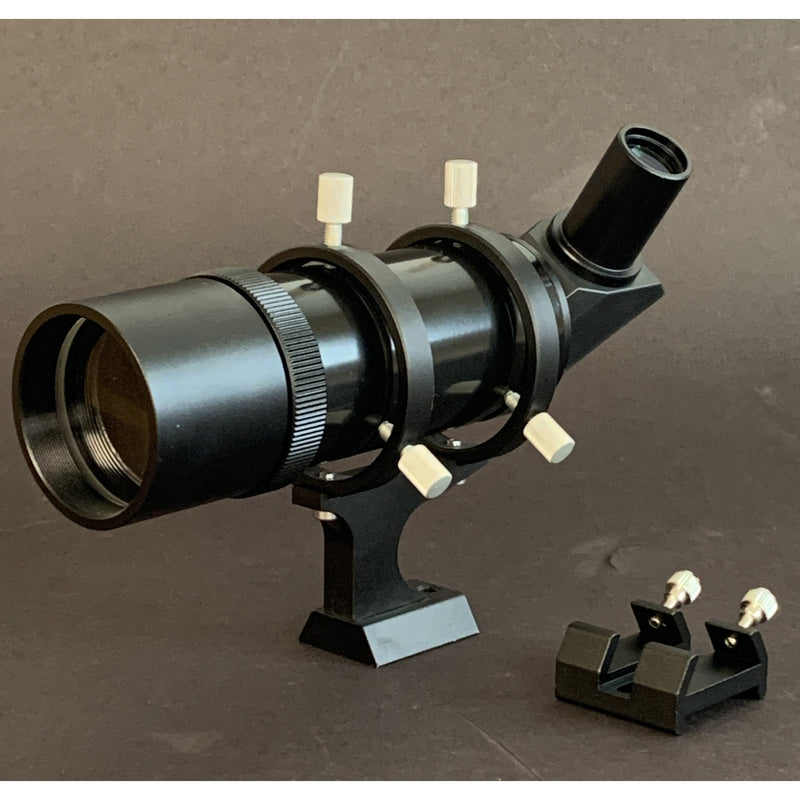

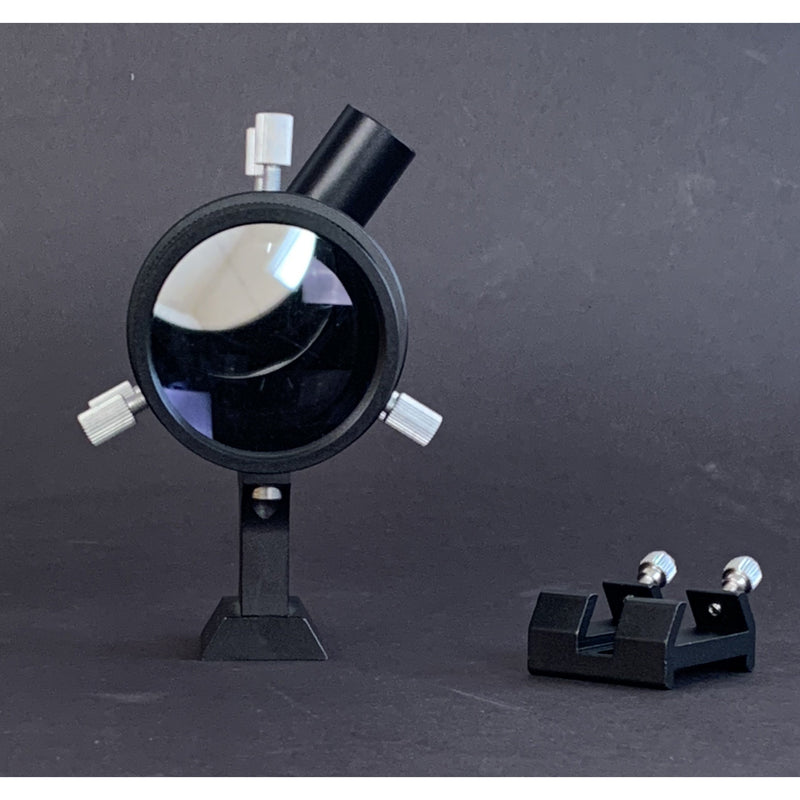

Orion Optics UK 50mm Angled Finder
- 50mm Aperture
- 90-Degree Angled Viewing Design
- Fully Coated Optics
- Reticule Crosshairs for Centering
- Quick-Release Dovetail Mounting Shoe
- Spring-Loaded Adjustment Screws
The Orion Optics UK 50mm Angled Finder is a significant ergonomic and optical upgrade for locating celestial objects. Its 50mm objective lens gathers substantial light to reveal faint guide stars and deep-sky targets, while the 90-degree angled body eliminates neck strain and awkward viewing positions, especially when your telescope is aimed near the zenith.
A 50mm finder is the ideal balance of size and capability, offering a dramatic improvement over standard 30mm or smaller finders. This larger aperture allows you to resolve not just bright stars, but also the faint, fuzzy patches of galaxies and nebulae, making it far easier to star-hop to your intended target. With fully multi-coated optics and fine reticle crosshairs, the finder delivers a bright, high-contrast view for precise centering.
For many observers, the greatest challenge of a straight-through finder is physical comfort. The 90-degree angled design of this finder solves that problem by allowing you to look down into the eyepiece from a comfortable standing or seated position. This is a crucial advantage when observing objects overhead, preventing the need to crouch or kneel in awkward positions to align your telescope.
Orion Optics UK offers both angled and straight-through 50mm finders, and the choice comes down to your preferred workflow. While some observers find the direct line-of-sight of a straight-through finder more intuitive for initial pointing, the angled finder offers undeniable ergonomic benefits for extended use.
The trade-off is a slightly less intuitive pointing motion versus complete freedom from physical strain. For owners of Schmidt-Cassegrains, Maksutovs, or any scope used for long periods near the zenith, the comfort of the 90-degree angled finder is often the decisive factor.
The primary advantage is its 50mm aperture. It gathers significantly more light than 30mm or smaller finders, allowing you to see fainter stars and the actual shapes of many deep-sky objects like galaxies and nebulae, making star-hopping much easier.
The 90-degree angled eyepiece allows you to look down into the finder from a comfortable position, rather than craning your neck to look along the telescope tube. This is especially beneficial when your telescope is pointed high towards the zenith, preventing physical strain during long observing sessions.
No. The finder uses a quick-release dovetail shoe. Once you perform the initial alignment with your main telescope, you can remove the finder for transport and re-attach it for your next session, and it will hold its alignment.
Yes. The 50mm aperture is large enough to show the bright core and faint haze of the Andromeda Galaxy (M31), as well as many other Messier objects. This makes it an effective tool for locating and centering targets that might be invisible in smaller finderscopes.
For most Schmidt-Cassegrain (SCT) or Maksutov users, the angled finder is strongly preferred. Because you observe from the rear of an SCT, a straight-through finder often forces you into very low, uncomfortable positions. The 90-degree angled finder places the eyepiece in a much more accessible and ergonomic location.
The fine reticle crosshairs provide a precise reference point in the center of the field of view. To align your telescope, you simply center your target object on these crosshairs. This ensures that the object will also be centered in the eyepiece of your main telescope.
| Aperture | 50mm |
| Optical Design | Angled Finder Scope |
| Coatings | Fully Coated |
| Reticle | Non-illuminated Crosshairs |
| Mounting | Dovetail Shoe with Spring-Loaded Screws |
