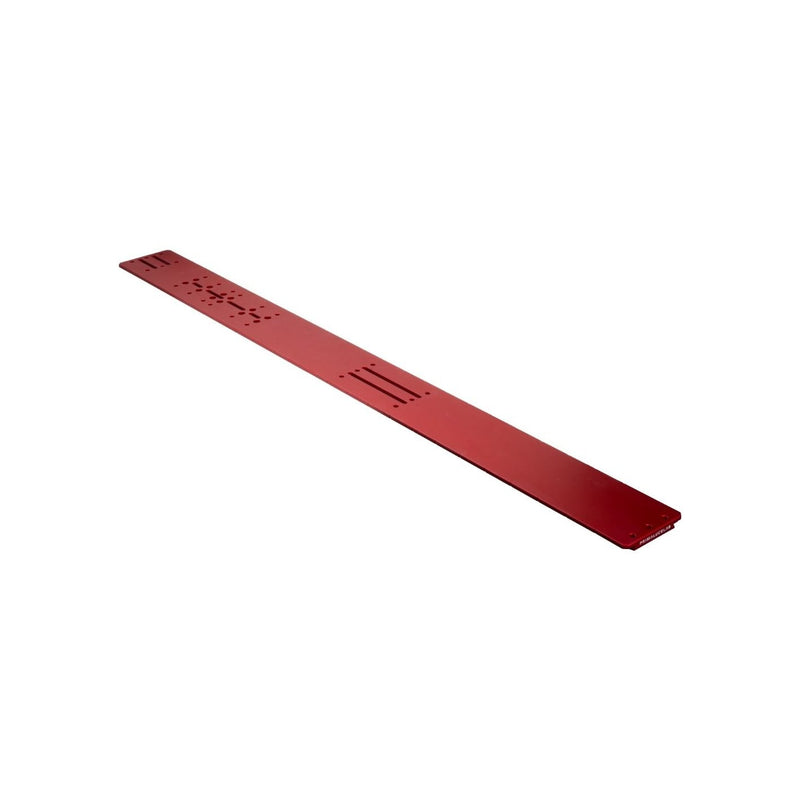

PrimaLuceLab Losmandy Style Dovetail Plate 1100mm PLUS

PrimaLuceLab Losmandy Style Dovetail Plate 1100mm PLUS

par PrimaLuceLab
UGC PLLLOS1100P
$325.00 - $325.00
$325.00
$325.00 - $325.00
$325.00
Égalisation de prix!
  • 1100mm full length for mounting large optical tubes
  • 13mm thickness prevents flexure under heavy loads
  • Supports optical tubes up to 30 kg
  • Weighs 3.0 kg, ensuring a rigid mechanical connection
  • Part of the PrimaLuceLab PLUS modular system
En rupture temporaire
Alerte de retour en stock
Info disponibilité
Admissible à la livraison GRATUITE aux USA pour les commandes de plus de 350$.
  • Description
  • FAQ
  • Specifications
  • In the Box
  • Downloads
  • Warranty

  • Losmandy Style Dovetail Plate 1100mm PLUS

    The PrimaLuceLab Losmandy style dovetail plate 1100mm PLUS provides a rigid, full-length mounting platform engineered for large optical tubes up to 30 kg. Machined from a single aluminum block to a uniform 13mm thickness and weighing 3.0 kg, it eliminates the flexure that can compromise imaging performance with long, heavy instruments like a Celestron 14" Schmidt-Cassegrain.

    1100mm Rigidity: Supporting 30kg OTAs with a 13mm Thick Plate

    When mounting a large telescope, maintaining mechanical rigidity across the entire optical train is critical. This 1100mm plate is specifically designed to provide a continuous, flex-free connection between your telescope and a Losmandy-style mount clamp. Its 13mm thickness and robust construction are engineered to handle instruments up to 30 kg, preventing sag or vibration that can ruin long exposures.

    3.0 kg of CNC-Machined Aluminum: The PLUS System Foundation

    Every element of the PrimaLuceLab PLUS system is built for mechanical integrity, and this 3.0 kg plate is the foundation for complex setups. It is CNC-machined from a solid block of aluminum, then sandblasted and hard-anodized for a durable, oxidation-resistant finish. The plate features a system of threaded holes and slots designed for seamless, rigid connection to other PLUS components like support rings, guide rings, and dovetail clamps, allowing you to build a completely integrated imaging system.

    Automation Platform: Integrating GIOTTO on 11" and 14" Telescopes

    This plate's primary design purpose is to enable advanced automation for large Celestron telescopes. When installed in parallel to a Celestron SC 14", EdgeHD 14", or RASA 11" optical tube (using the required PLLSAG925 curved blocks), it creates a secure mounting point for the ALTO telescope cover motor. This configuration allows you to attach a GIOTTO smart flat field generator, transforming your telescope into a remotely operated system capable of capturing its own flat calibration frames without your physical intervention.

  • What is the main application for the Losmandy style dovetail plate 1100mm PLUS?

    The 1100mm PLUS plate is designed to provide a rigid, full-length mounting solution for large telescopes up to 30 kg, such as the Celestron 14" SCT or EdgeHD. Its primary application is to serve as a mechanical backbone for building a remotely automated imaging system by allowing the attachment of the PrimaLuceLab ALTO cover motor and GIOTTO smart flat field generator.

    Can I use the 1100mm PLUS plate with a telescope other than a Celestron 14" EdgeHD or 11" RASA?

    Yes. While specifically designed for parallel mounting on large Celestron OTAs, the Losmandy style dovetail plate 1100mm PLUS can be used with any large telescope up to 30 kg that requires a long, rigid Losmandy-D compatible plate. The system of slots and threaded holes offers flexibility for attaching various brands of tube rings or other accessories.

    What additional parts do I need to mount the 1100mm PLUS plate to a Celestron 14" EdgeHD to use GIOTTO?

    To install the plate in parallel to a Celestron 14" EdgeHD for use with the ALTO motor and GIOTTO flat field generator, you will need two additional components:

    • PLLSAG925 Curved Blocks: These match the curvature of the optical tube and provide a flat surface to attach the plate.
    • PLLMORVLP Clamp: This is required to connect the ALTO cover motor to the dovetail plate.

    How does the 1100mm PLUS plate improve the rigidity of my imaging setup?

    By spanning the full length of a large optical tube, the 1100mm plate acts like a spine, unifying the telescope, rings, and any attached accessories into a single rigid assembly. This prevents differential flexure between the main telescope and a guide scope, which is a common source of tracking errors in long-exposure astrophotography.

    Is the 30 kg weight capacity of the 1100mm PLUS plate a hard limit?

    The 30 kg figure is a suggested maximum to ensure optimal rigidity and prevent any flexure. While the plate itself is exceptionally strong, exceeding this weight can introduce subtle flex into the system, especially when multiple accessories are attached. For best imaging results, it is recommended to stay within this capacity.

    How do I attach guide rings to the Losmandy style dovetail plate 1100mm PLUS?

    The plate is part of the PrimaLuceLab PLUS system, which features a pattern of threaded holes and slots. You can directly bolt PLUS guide rings to the plate for a secure, no-slip connection. For non-PLUS accessories, the central slots allow you to use standard screws to attach guide rings or other clamps from different manufacturers.

  • Dovetail Style Losmandy-D
    Length 1100 mm
    Thickness 13 mm
    Weight 3.0 kg
    Suggested Max Load 30 kg
    Material CNC Machined Aluminum
    Finish Hard Anodized
    System Compatibility PrimaLuceLab PLUS

    • Losmandy style dovetail plate 1100mm PLUS

      × 1

  • PrimaLuceLab 1-Year Warranty
