How does the Baader FFB ensure uniform illumination for my telescope?

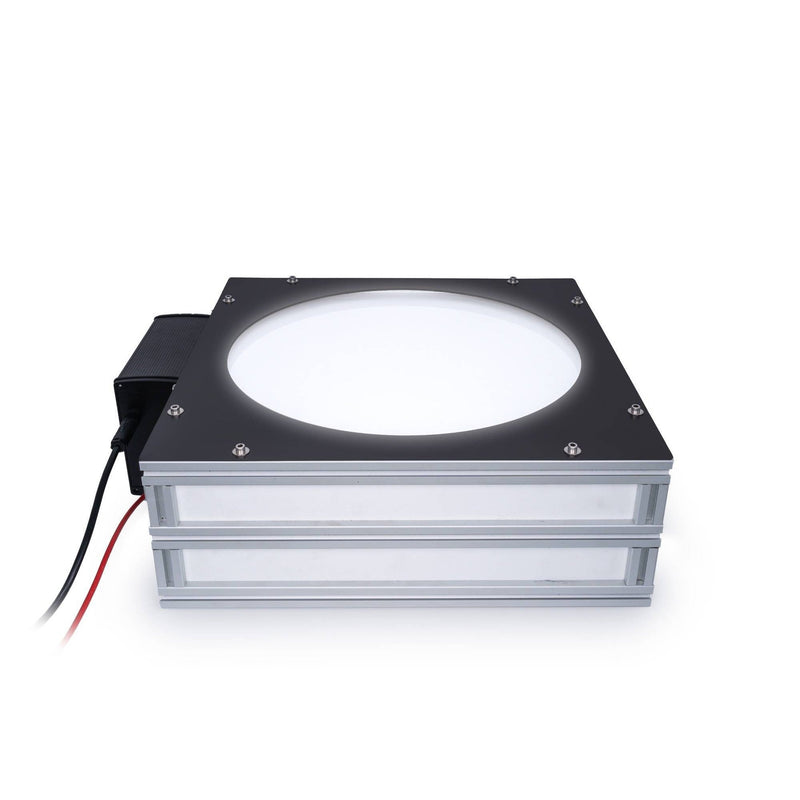

The Baader FFB uses a specially engineered illumination technology to create a very even, low-flicker light source across its entire surface. This ensures that every pixel on your camera's sensor receives the same amount of light, which is essential for accurately calibrating out optical train imperfections like dust and vignetting.
Can I use the FFB FlatFieldBox with my narrowband filters like H-alpha and OIII?
Yes. Every FFB is designed with a full-spectrum light source that provides strong, even illumination across the wavelengths used by common narrowband filters (e.g., H-alpha, OIII, SII) as well as standard broadband (LRGB) filters. This allows you to create high-quality flat frames for your entire imaging system.
What are the mounting options for the FFB in my observatory?

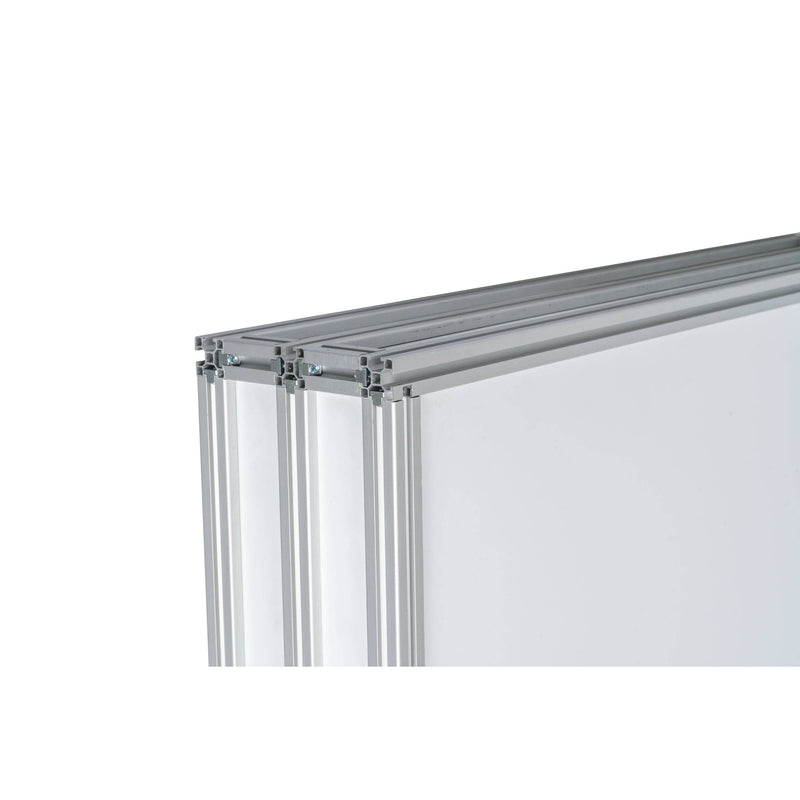

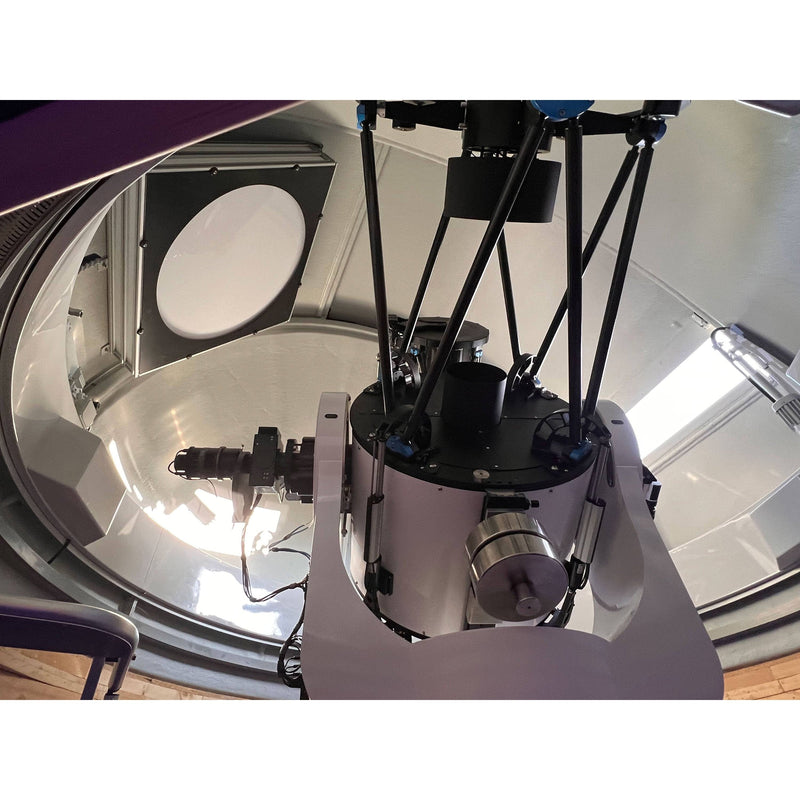

The Baader FFB is built with a robust profile frame designed for flexible, permanent installation. It can be mounted on a wall, placed on a tabletop, or integrated into the structure of a rotating observatory dome, depending on your setup and workflow.
Do I need a special power supply for the Baader FFB?

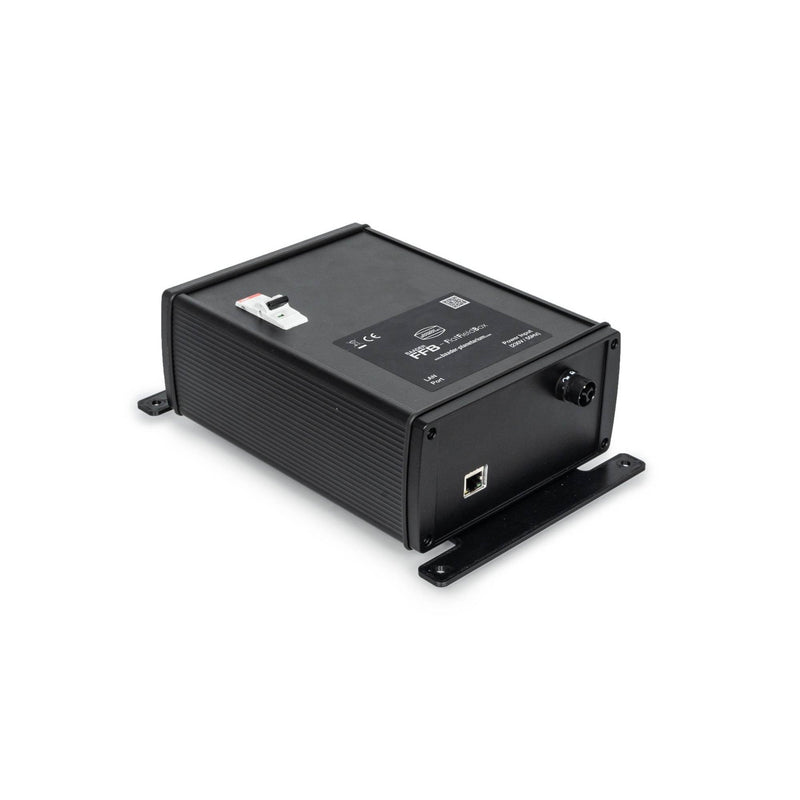

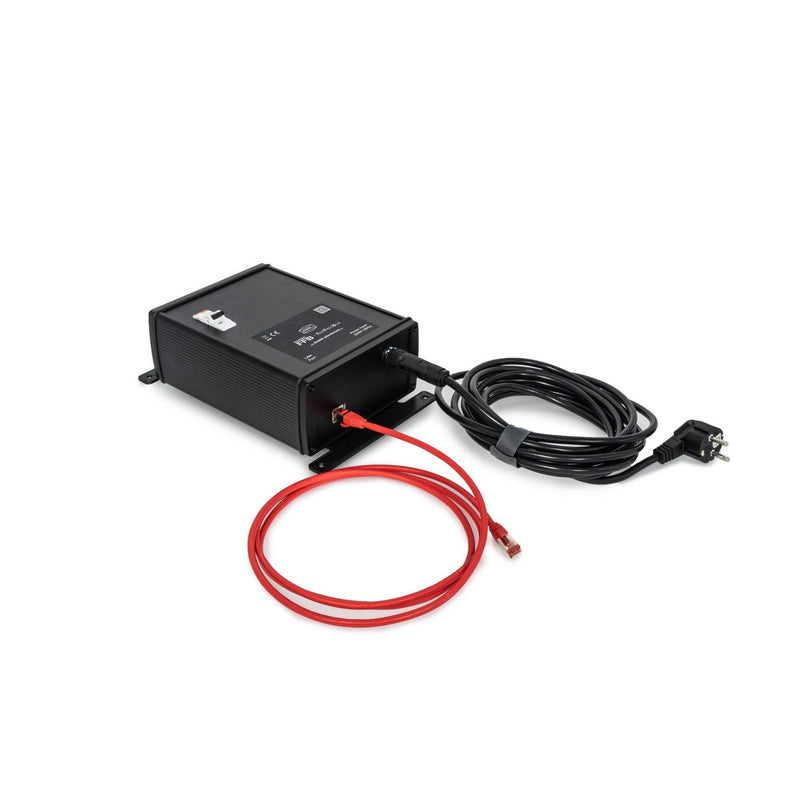

The FFB can be powered in two ways. You can use a standalone power supply (available separately) for static installations or integrate it directly with an Observatory Management System (OMS) for remote control. It uses safe, low-voltage XT60 connectors for power.

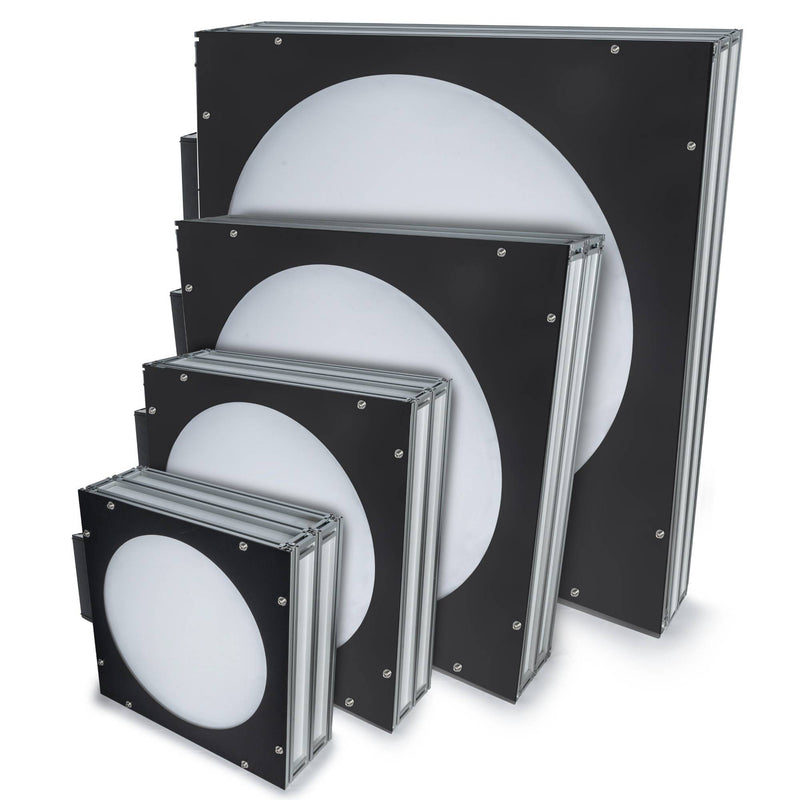

Which FFB clear aperture do I need for my telescope?

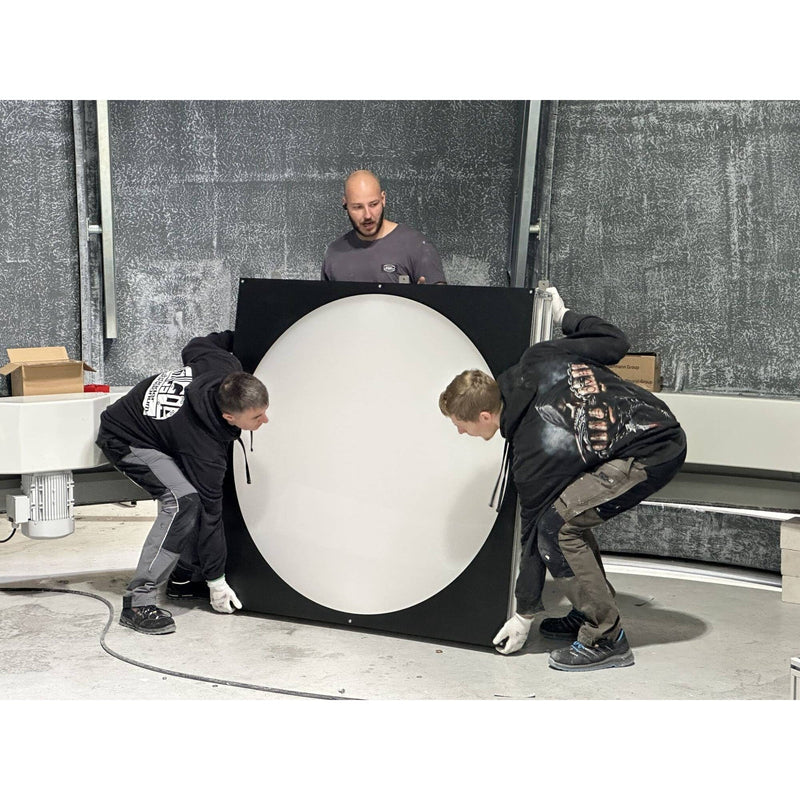

Choose a clear aperture that fully covers your telescope. With 450mm (approximately 17.7 inches), the FFB 450 is more than capable of fully illuminating a 14-inch (356mm) Schmidt-Cassegrain Telescope. The FFB 650 and FFB 850 accommodate larger systems such as big Ritchey-Chrétiens or large refractors, and the 1250mm FFB is designed for 1-meter class telescopes.
Why is a low-flicker light source important for taking flats with the FFB?
A low-flicker light source matters for modern CMOS astrophotography cameras when flat frames use short exposures. The FFB allows exposures down to 1 ms, though Baader recommends exposures of several seconds for best results. Any flicker in the light source can cause banding or inconsistent illumination from one frame to the next. Its dimmable output lets you lengthen flat exposures when needed.
