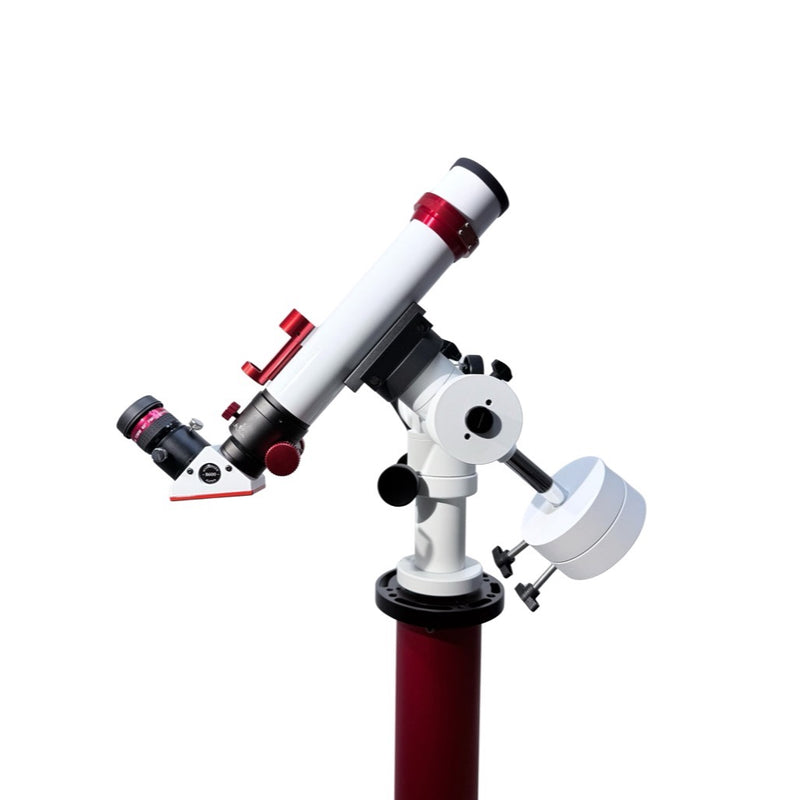

Lunt LS40THa H-Alpha Solar Telescope - Enhanced Kit

40mm Aperture: Your Portable Window to the Chromosphere

The LS40THa is built around a 40mm singlet objective lens with a 400mm focal length. This f/10 system is intentionally designed for portability and performance under typical daytime seeing conditions. Atmospheric turbulence often limits the useful resolution of larger solar telescopes, allowing this compact instrument to deliver sharp, high-contrast views on days when bigger scopes struggle.

This aperture is ideal for observing the full solar disk in one field of view. It provides the perfect image scale to watch prominences erupt from the limb and track the evolution of active regions as they crawl across the sun's face. Its light weight means it can be mounted on any simple photo tripod or a small equatorial mount for easy tracking.

Tilt-Tuned Etalon for High-Contrast Views

The heart of the LS40THa is its internal, front-mounted solid etalon. This precision filter is factory-set to a bandpass of less than 0.55 Angstroms, isolating the specific wavelength of hydrogen-alpha light. This narrow bandpass extinguishes the brilliant, overwhelming light from the photosphere, allowing the much fainter details of the chromosphere to become visible.

To fine-tune the filter for maximum contrast on different features, the telescope uses a simple and robust tilt-tuning mechanism. A small thumbwheel on the side of the optical tube physically tilts the etalon. This allows you to shift the filter's bandpass slightly, which causes surface features like filaments and plage to "pop" into view or enhances the delicate structure of prominences against the blackness of space.

The B600 Blocking Filter Advantage

The Enhanced Kit includes the upgraded B600 blocking filter, a critical component housed within the 90-degree star diagonal. This secondary filter provides the final, essential stage of energy rejection for safe observing. The "600" designation refers to its 6mm aperture, which is a significant step up from the standard B500 filter.

This larger clear aperture provides a wider, unvignetted field of view at the eyepiece. For visual observers, this results in a more evenly illuminated view of the full solar disk. For imagers, it is a mandatory upgrade, ensuring your camera sensor is fully illuminated edge-to-edge, preventing dimming in the corners of your solar images.

Upgraded 1:1 Rack & Pinion Focuser

Another key feature of the Enhanced Kit is the 1:1 rack and pinion focuser. This is a direct upgrade from the helical focuser found in the standard package, offering a more stable and precise focusing experience. The motion is smoother, making it easier to find that perfect point of sharp focus, especially at higher magnifications.

The rack and pinion design is also better at handling the weight of cameras and larger eyepieces without slipping or shifting. This non-rotating mechanism ensures your camera remains oriented correctly as you focus, eliminating the need to re-frame your shot after each adjustment. It is a practical upgrade that significantly improves the telescope's usability, particularly for imaging.

Observing with the LS40THa: A Live View of Solar Fury

With the included 12mm eyepiece, the LS40THa operates at 33x magnification, a perfect power for framing the entire sun. After using the SunLock finder to safely center the disk, you will see a deep, ruby-red ball. As your eye adapts, the view transforms. Along the limb, you might see a hedgerow prominence, a wall of plasma arcing tens of thousands of miles into space, its structure changing over minutes.

By adjusting the tilt-tuner, the bright active regions on the surface darken, revealing the intricate, web-like structure of filaments snaking across the disk. One trade-off of the simple tilt-tune system is that it can create a slight brightness gradient, but this is easily managed by keeping your target of interest in the "on-band" sweet spot. This instrument makes observing the sun an active, engaging experience, not a passive one.

LS40THa Kit Comparison: Finding Your Fit

Lunt offers the LS40THa in several packages to match different observer goals. Understanding the trade-offs helps you make the right choice.

• Standard Kit: This entry-level package includes the same optics but uses a B500 blocking filter and a helical focuser. It's a capable choice for purely visual, casual solar observing where minimizing cost is the top priority.
• Enhanced Kit (This Model): By upgrading to the B600 blocking filter and the rack & pinion focuser, this kit offers a better visual experience and a solid foundation for basic solar imaging. It represents the sweet spot for performance and value.
• Premium PLUS Kit: This package includes the B600 filter, R&P focuser, and adds an external LS40FHa double-stack etalon. Double-stacking narrows the bandpass to <0.35Å, dramatically increasing surface contrast and making the chromosphere's texture appear almost three-dimensional. It is the ultimate choice for dedicated solar enthusiasts who demand the highest level of detail.
