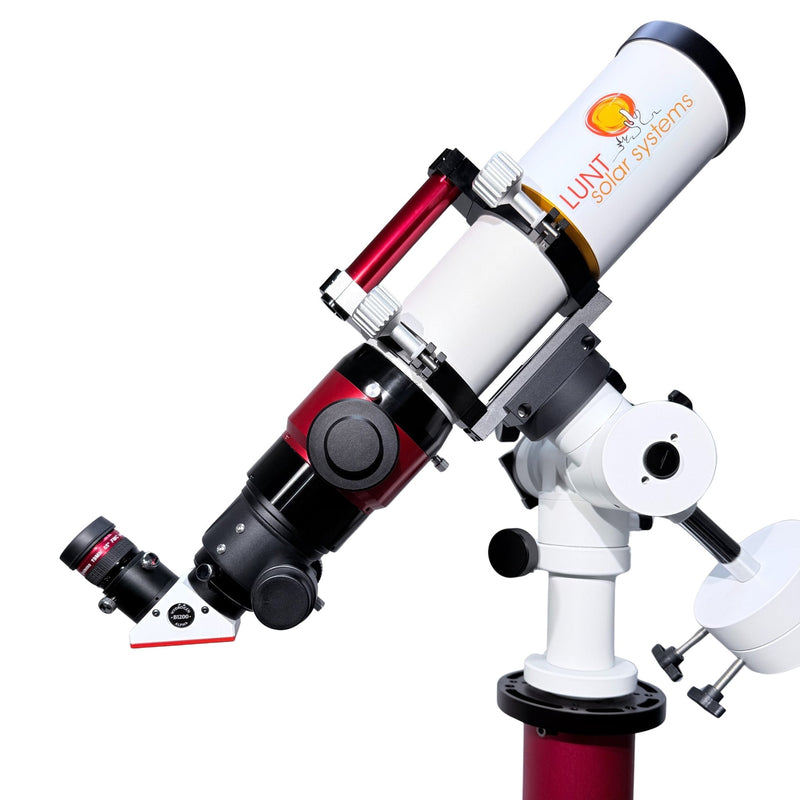

Lunt LS80MT H-Alpha Solar Telescope - Standard Kit

Aperture and Resolution: The 80mm ED Objective

At the heart of the LS80MT is an 80mm F/7 ED doublet objective lens. The use of FPL51 extra-low dispersion glass minimizes chromatic aberration, resulting in a sharp, high-contrast image. This level of optical correction is critical not only for resolving fine structures in the Sun's chromosphere but also for providing color-pure views of planets and deep-sky objects when the telescope is converted for nighttime use.

The 80mm aperture represents a significant step up in resolving power from smaller 60mm instruments. This increase allows you to resolve finer details within solar filaments and see more complex structures in large prominence groups. Under steady seeing conditions, the image remains bright and detailed, even when pushing magnification to observe the texture of active regions.

Doppler True Tuning: The Pressure-Tuned Etalon

Lunt's internal, solid-etalon filter is the core of its solar performance, delivering a narrow bandpass of ≤0.45 Ångströms. Unlike tilt-tuned systems that can introduce uniformity issues, Lunt’s Doppler True Tuning (DTT) system uses air pressure to change the refractive index in the etalon cavity. This method tunes the filter's bandpass evenly across the entire field of view, ensuring maximum contrast and detail from edge to edge.

This precise tuning allows you to shift the bandpass slightly off the central H-alpha line. For an observer, this means you can track the velocity of plasma moving towards or away from you, enhancing the visibility of doppler-shifted events like solar flares. The pressure system maintains its tuning without mechanical stress, providing consistent, drift-free performance through long observing sessions.

The B1200 Blocking Filter for Visual and Imaging

This Standard Kit includes the B1200 blocking filter, housed within a 1.25" star diagonal. The 12mm diameter of this filter provides a generous, fully illuminated field of view for visual observation with most eyepieces. It ensures that the entire solar disk appears bright and evenly lit, without any dimming at the edges.

For imagers using smaller-chip solar cameras, the B1200 provides an optimal balance, illuminating the sensor fully while keeping the optical path efficient. While larger blocking filters are available for full-frame sensors, the B1200 is a versatile choice for those who prioritize visual astronomy or are starting with planetary-style cameras.

Stable and Precise Dual-Speed Focuser

The LS80MT is equipped with a robust dual-speed rack and pinion focuser. This design is more rigid than a Crayford-style focuser, making it better suited to handling the weight of cameras and binoviewers without slipping or tilting. The coarse focus knob gets you into the general vicinity quickly, while the 10:1 fine-focus knob allows for the critical, minute adjustments needed to snap solar surface detail into perfect sharpness.

Modular Design for Day and Night Astronomy

A key feature of the MT (Modular Telescope) series is its ability to convert from a dedicated H-alpha solar telescope to a conventional nighttime refractor. By unscrewing the H-alpha module and installing the optional nighttime conversion kit (sold separately), the LS80MT becomes a high-performance 80mm ED apo refractor. This versatility makes it an excellent choice for observers who want one high-quality instrument for all their astronomical pursuits, from solar observing to planetary imaging and wide-field astrophotography.

Observing with the LS80MT

With a medium-power eyepiece, the full solar disk is framed with a deep black background. After tuning the etalon, the chromosphere resolves from a flat, orange ball into a textured surface with bright plage and dark, snaking filaments. Prominences erupting from the limb are not just simple spikes of light; the 80mm aperture and narrow bandpass reveal delicate loops, feathery structures, and detached clouds of hydrogen plasma.

The true advantage of the pressure tuner becomes apparent as you slightly de-tune the etalon. A filament that was a dark, static line can suddenly show internal motion and brightness changes, revealing the dynamic, three-dimensional nature of the Sun. This is an instrument that rewards patient observation, allowing you to witness solar weather in real-time.

System Context and Trade-Offs

The LS80MT Standard Kit is an ideal balance of aperture, performance, and portability. While it offers significantly more resolution than a 60mm scope, it is lighter and requires a less substantial mount than the larger LS100MT. The primary trade-off in the Standard Kit is the B1200 blocking filter; while excellent for visual use, imagers with larger sensors might eventually consider upgrading to the B1800 for a wider, fully illuminated imaging circle.

Lunt LS80MT vs. Other Lunt Telescopes

Choosing the right solar telescope involves balancing aperture, features, and budget. Here is how the LS80MT Standard Kit fits into the Lunt family:

• vs. LS60MT: The LS80MT provides almost 80% more light-gathering area than the LS60MT. This translates directly to a brighter image and the ability to resolve finer details at higher magnifications. If your primary goal is high-resolution views of surface detail and complex prominences, the 80mm aperture is a significant advantage.
• vs. LS100MT: The LS100MT is a step up in resolving power, capable of revealing even finer granulation and filamentary detail under excellent seeing conditions. However, the LS80MT is considerably more portable, cools down faster, and can be supported by lighter, more affordable mounts, making it a more practical choice for many observers.
• vs. LS80MT Enhanced/Premium Kits: The primary difference is the blocking filter and included accessories. The Enhanced Kit upgrades to a B1800 blocking filter for a larger imaging field, while the Premium PLUS kit adds an internal double-stack module for the highest possible contrast on surface detail. The Standard Kit is the perfect entry point, with a clear upgrade path for the future.
