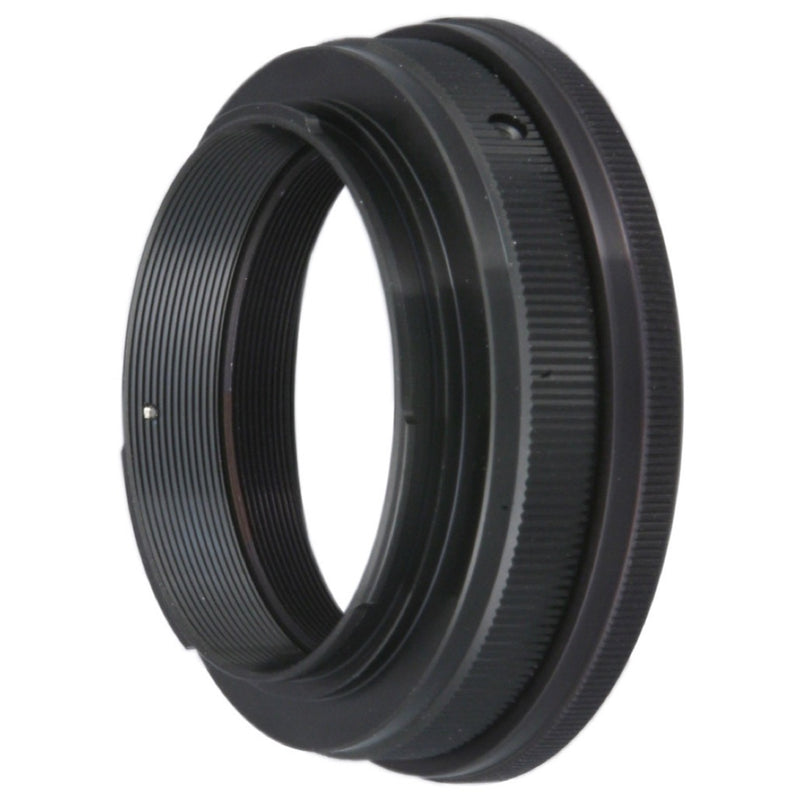

Tele Vue Canon Wide T Adapter w-Bayonet for 2.4"

A Wider Path for Unobstructed Light

A standard T-ring, with its 42mm T-thread opening, acts as a bottleneck, constricting the light path from your telescope's focuser to the camera sensor. This effect, known as vignetting, darkens the corners of your images and discards valuable signal. The Tele Vue Canon Wide T Adapter solves this by providing a 25% larger clear aperture, taking full advantage of the wide Canon bayonet mount to deliver even illumination from edge to edge.

For imagers using full-frame DSLRs or mirrorless bodies, this is not a minor improvement. It is the difference between a fully usable frame and one that requires aggressive cropping and flat-field correction. With this adapter, the faint outer details of galaxies and nebulae are preserved across the entire field of view, just as the telescope's optics intended.

Engineered for the Tele Vue Imaging System

This adapter is designed to integrate flawlessly into the Tele Vue ecosystem. The telescope side features the robust 2.4-inch thread common to all Tele Vue "is" refractors (like the NP-101is and NP-127is) and their family of Imaging System accessories. This threaded connection provides a rigid, flexure-free attachment point that is critical for long-exposure astrophotography.

By maintaining a secure, threaded train, you eliminate the potential for tilt and misalignment that can occur with slip-fit or compression-ring adapters. The result is a consistently sharp field with round stars, ensuring your optical system performs at its diffraction-limited best. The adapter connects directly to accessories like the Large Field Corrector (LCL-1069) or the 0.8x Reducer (NPR-2073) to achieve the correct back focus.

Native Canon EOS Bayonet Connection

The camera side of the adapter is a precisely machined Canon EF bayonet mount. This allows your camera body to click and lock into place with the same security as a native Canon lens. No separate, generic T-ring is required, reducing complexity and potential sources of mechanical play in your imaging train.

This native connection is a significant upgrade over two-part T-ring and T-adapter combinations. The solid, one-piece design ensures your camera sensor remains perfectly orthogonal to the optical axis, a fundamental requirement for achieving sharp focus across the entire sensor. It is compatible with all Canon EOS DSLR cameras and mirrorless models when using a standard EF-to-RF mount adapter.

Maximized Contrast Through Stray Light Control

Like all Tele Vue components, the interior of the Canon Wide T Adapter is engineered for maximum contrast. The internal surfaces are blackened and feature anti-reflection micro-baffles. This design traps stray light before it can reach the sensor and reduce the subtle contrast in faint deep-sky objects.

This attention to detail ensures that the high-contrast performance of your Tele Vue refractor is not degraded by internal reflections within the adapter. The background of your images will remain dark and neutral, allowing the faintest structures in your target to be captured with clarity.

Choosing Your Camera Adapter

Tele Vue offers several adapters for their Imaging System, and choosing the right one depends on your camera and goals.

• Canon Wide T Adapter (CWT-2070): The ideal choice for any Canon EOS user with a Tele Vue "is" scope or 2.4" accessory. It provides the largest possible aperture to prevent vignetting, especially on full-frame sensors.
• Standard T-Ring Adapter (TRG-1072): A more universal option that accepts any brand-specific 42mm T-ring. However, it will introduce some degree of vignetting on sensors larger than APS-C format due to the smaller T-thread diameter. It is a workable solution but not optimal for full-frame cameras.
• Nikon F Wide T Adapter (NWT-2073): This is the direct equivalent of the CWT-2070, but designed for the Nikon F-mount. It provides the same anti-vignetting benefits for Nikon DSLR and Z-series (with FTZ adapter) users.

For Canon imagers seeking to extract the maximum performance from their Tele Vue optics, the CWT-2070 is the definitive connection.
