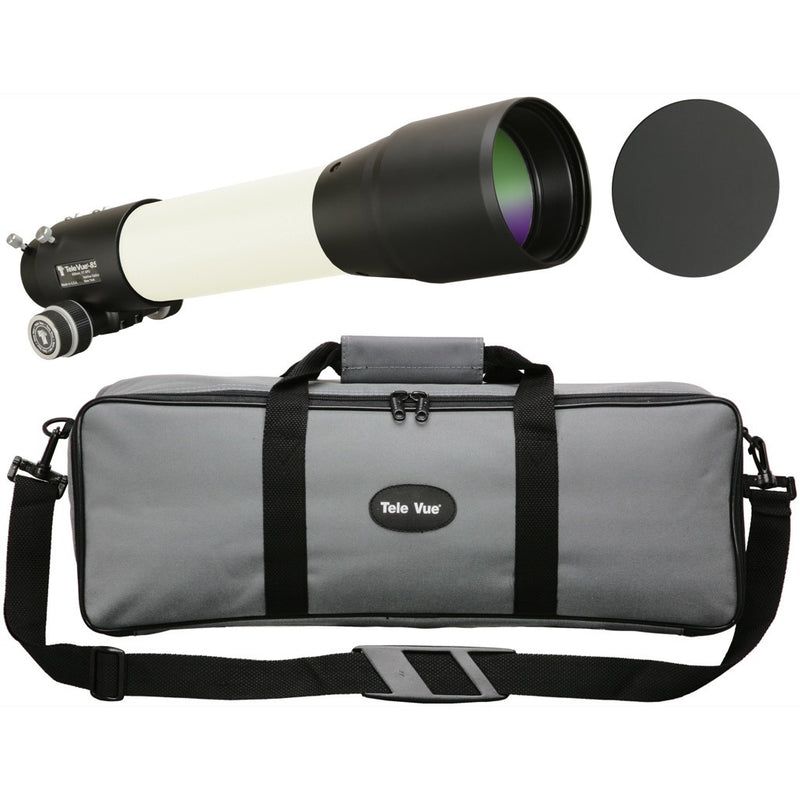

Tele Vue TV-85 OTA - White

The 85mm APO Doublet Objective

At the heart of the TV-85 is an 85mm, 600mm focal length (f/7) air-spaced apochromatic doublet lens. This is not simply an ED or semi-APO design. The lens elements and their multi-coatings are specified to eliminate false color (chromatic aberration), which preserves the highest levels of sharpness and contrast. The practical result is a view free from distracting purple halos around bright stars, lunar limbs, and planets.

This color fidelity means you perceive the subtle cream and tan hues in Saturn's rings and the true ruddy color of Mars's surface without a wash of unfocused blue light. On deep-sky targets, the pinpoint stars of open clusters like the Pleiades or the Double Cluster in Perseus are rendered as sharp, intense points of light against a black, velvety background. The high-contrast optics reveal faint structures in nebulae that would be lost in a less-corrected system.

Precision Focus with the 10:1 Dual-Speed Focuser

The TV-85 features a 2-inch, 10:1 dual-speed rack-and-pinion focuser, a mechanism chosen for its ability to handle heavy imaging loads without slipping. The large, coarse-focus knobs get you close to the mark quickly, but the magic happens with the fine-focus knob. This 10:1 reduction allows for minute, controlled adjustments, which are essential for snapping planetary details into perfect focus at high magnification.

When you are observing Jupiter's cloud bands or trying to split a tight double star, that final hair's breadth of focus travel is the difference between a soft image and a sharp, detailed view. For imagers, this precision is non-negotiable. It allows you to nail critical focus on your camera sensor, ensuring your exposures capture the finest possible detail without drift or backlash.

Contrast-Optimizing Tube and Baffling

An excellent objective lens can be compromised by stray light. The TV-85's optical tube is constructed from powder-coated aluminum and features a fully baffled interior. These internal knife-edge baffles are strategically placed to intercept off-axis light that enters the telescope, preventing it from reaching the eyepiece or camera sensor.

The inside of the tube is finished in an ultra-flat black to absorb any remaining reflections. This meticulous attention to stray light control produces a noticeably darker background sky. This enhances the visibility of faint, extended objects like the Andromeda Galaxy's dust lanes or the wispy outer regions of the Orion Nebula, making them stand out with greater clarity and dimension.

Field-Ready Mechanics: Dew Shield and Mount

Practicality in the field is a core tenet of the TV-85's design. The smoothly sliding dew shield extends to prevent the formation of late-night moisture on the objective lens, preserving your view through changing temperatures. It also serves as a lens hood, blocking stray light from nearby sources to further improve image contrast.

The telescope includes a robust mounting ring, which provides a secure, non-marring grip on the optical tube. This ring is attached to a standard Vixen-style dovetail bar, ensuring out-of-the-box compatibility with a wide range of popular astronomical mounts. This lets you move the scope from a lightweight photo tripod for birding to a serious German equatorial mount for imaging with ease.

A Note on Aperture and Seeing Conditions

While larger telescopes have higher theoretical resolution, the TV-85's 85mm aperture is often a significant advantage under typical observing conditions. On nights with turbulent atmospheric "seeing," a larger scope can be overwhelmed, producing a blurry, swimming image. The TV-85's aperture is less susceptible to this turbulence, often delivering a steadier, sharper, and more consistently pleasing view of planets and the Moon than a larger instrument operating below its potential.

This makes the TV-85 a reliable workhorse. You can count on it to provide high-quality views on nights when larger, more specialized instruments must remain covered. It trades away the light-gathering power of a massive aperture for the ability to deliver its full performance potential on a more frequent basis.

The TV-85 Experience: Splitting the Double Double

Center the star Epsilon Lyrae in a medium-power eyepiece. At first glance with the TV-85, it resolves cleanly into two bright, white stars. Now, increase the magnification to around 120x with a 5mm eyepiece. As your eye settles and the seeing steadies, the true nature of the system is revealed. Each of the two stars splits again into its own impossibly tight companion, forming a stunning quadruple system—the famous "Double Double."

This is where the TV-85's apochromatic optics and precise focuser demonstrate their value. The stars are perfect, concentric diffraction rings with no distracting color smear, allowing you to cleanly separate the components. It's a classic test of optical quality that this portable refractor passes with ease, delivering a view that is both technically perfect and deeply satisfying.

Choosing Your Tele Vue Refractor

Tele Vue offers a family of refractors, each optimized for a specific purpose. Understanding the trade-offs helps you find the right instrument for your observing style.

• Tele Vue TV-76 vs. TV-85: The TV-76 is the ultimate in airline portability, being slightly smaller, lighter, and more compact. The TV-85, with its 85mm aperture, gathers 28% more light and offers higher resolution. This translates to brighter nebula views and the ability to use higher magnification on planets, making the TV-85 the choice for observers who want more performance while retaining grab-and-go convenience.
• Tele Vue TV-85 vs. NP-101is: The NP-101is is a 4-inch, Petzval-design astrograph, built from the ground up for wide-field imaging with a perfectly flat field. The TV-85 is a more versatile visual instrument that is also a capable imager, especially on solar system targets. The NP-101is is the superior choice for serious wide-field astrophotography, while the TV-85 is a more portable, all-around visual performer at a more accessible price point.
