What kind of telescope is needed for the ZWO ASI461MM Pro?

To take full advantage of the ASI461MM Pro's 44mm x 33mm medium format sensor, you need a telescope with a large, flat, and well-corrected image circle (ideally 55mm or greater). Premium instruments like large refractors with dedicated flatteners (e.g., Takahashi FSQ-106) or high-end reflectors like Ritchey-Chrétiens are required to achieve sharp stars across the entire field.

Is the ASI461MM Pro good for imaging the Andromeda Galaxy (M31) with a wide-field refractor?

Absolutely. The ASI461MM Pro is an ideal camera for capturing the Andromeda Galaxy (M31) in a single frame with a short focal length refractor (e.g., 400-600mm). The massive sensor can capture the full extent of the galaxy's spiral arms and faint outer halo, while the 3.76µm pixels will resolve immense detail in its dust lanes and star-forming regions.

How does the 16-bit ADC on the ASI461MM Pro affect my images?

The 16-bit Analog-to-Digital Converter (ADC) captures image data with 65,536 brightness levels per pixel. This is a significant increase over 12-bit or 14-bit cameras and results in incredibly smooth gradients and tonal transitions, especially in bright, continuous structures like the core of the Orion Nebula (M42) or the wisps of the Veil Nebula.

What do the 17.5mm and 22.5mm back focus options let me do?

These two built-in back focus distances provide flexibility when building your imaging train. The choice between 17.5mm and 22.5mm allows you to achieve the standard 55mm back focus distance when using different combinations of ZWO accessories, such as their electronic filter wheels and off-axis guiders, without needing a complex array of custom spacers.

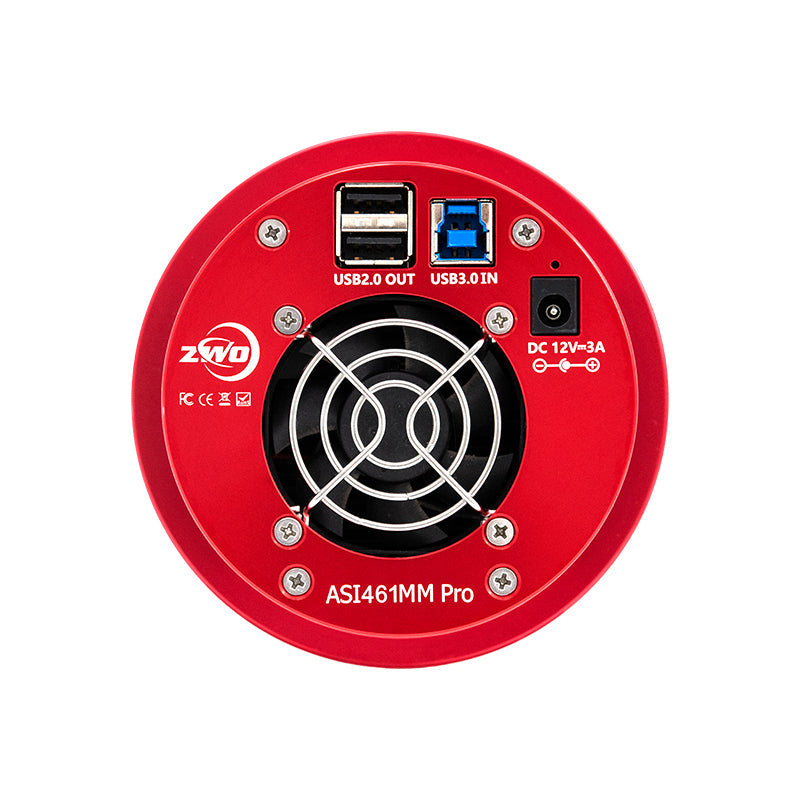

Do I need an external power supply for the ZWO ASI461MM Pro?

Yes. To power the two-stage TEC cooling system and the anti-dew heater, you must connect a 12V 3A DC power supply. The USB 3.0 connection alone does not provide enough power for these features; it only powers the sensor and data transfer.

What is the trade-off of having such small 3.76µm pixels on the ASI461MM Pro?

While the 3.76µm pixels deliver extremely high resolution, they can be a demanding match for atmospheric seeing conditions and telescope optics. This pixel size may lead to "oversampling" (resolving more detail than the atmosphere allows), which can result in softer-looking images if seeing is poor. However, this high resolution is a major advantage during nights of excellent seeing or when using advanced processing techniques like deconvolution.
