What is the Baader UFC S70/M48(F) Adapter used for?

This adapter connects accessories with a male M48 thread (like a field flattener or coma corrector) to the telescope side of the Baader Universal Filter Changer (UFC) base. It acts as the bridge between your telescope's optical corrector and the filter system.

Which side of the Baader UFC S70/M48 Adapter faces the telescope?

The side with the internal female M48 thread faces the telescope. It is designed to screw onto the male M48 thread of your flattener, reducer, or other accessory coming from the focuser.

What does this Baader UFC adapter connect to on the filter changer side?

The adapter connects to the Baader UFC Base (the main filter chamber component) using its integrated S70 dovetail. This provides a secure, non-threaded connection that prevents flexure.

How do I attach my coma corrector with M48 threads to the Baader UFC system using this adapter?

You would thread the male M48 output of your coma corrector directly into the female M48 threads of this adapter. Then, you can slide the S70 dovetail side of the adapter into the UFC Base and lock it in place, positioning your filter wheel correctly behind the corrector.

Can I use the Baader UFC S70/M48 adapter to attach a ZWO camera with M48 threads?

No, this is a telescope-side adapter. It has a female M48 thread to accept a corrector. To attach a camera with a female M48 thread, you would need a corresponding camera-side UFC adapter with a male M48 thread, not this telescope-side component.

Why choose the S70 dovetail system on this Baader UFC adapter over a fully threaded connection?

The S70 dovetail system offers a more rigid and stable connection than simple threads. It prevents the UFC body from rotating or sagging under the weight of a camera, which is crucial for maintaining optical alignment and achieving sharp, consistent focus across the entire imaging field.

Baader Adaptateur UFC Côté Télescope - S70/M48(F)

par Baader Planetarium

UGC BAA-2459129

CA$37.00 - CA$37.00

CA$37.00

CA$37.00 - CA$37.00

CA$37.00

Égalisation de prix!

En rupture temporaire

Alerte de retour en stock

Info disponibilité

Quantité

Calculateur de vignettage

Votre train d’imagerie vignette-t-il ?

Vérifiez quelles tailles de filtres et d'adaptateurs dégagent le capteur avec Baader Adaptateur UFC Côté Télescope - S70/M48(F), et la lumière perdue dans les coins.

Vérifier le vignettage

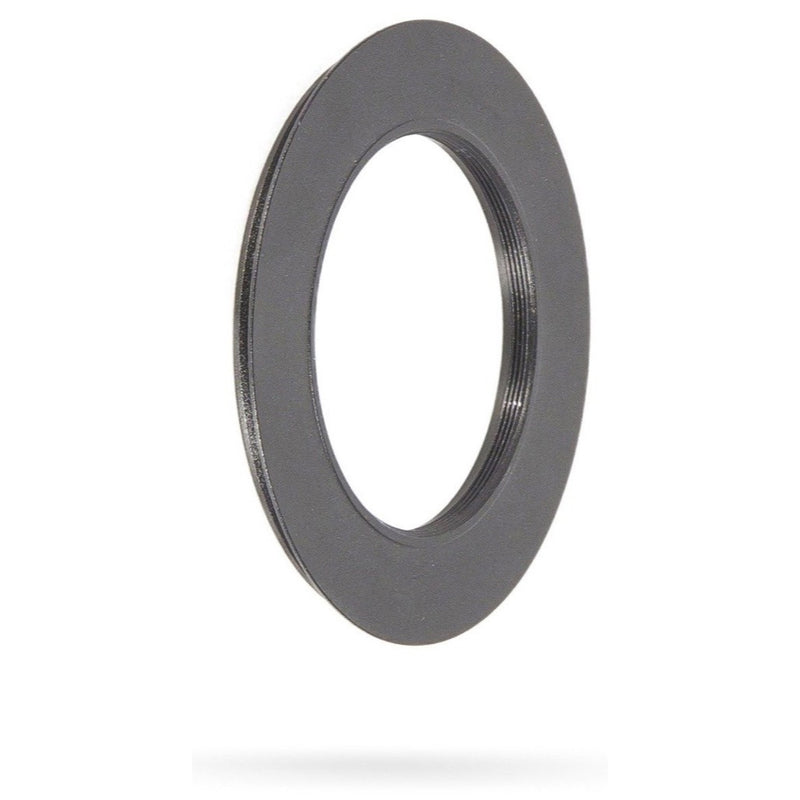

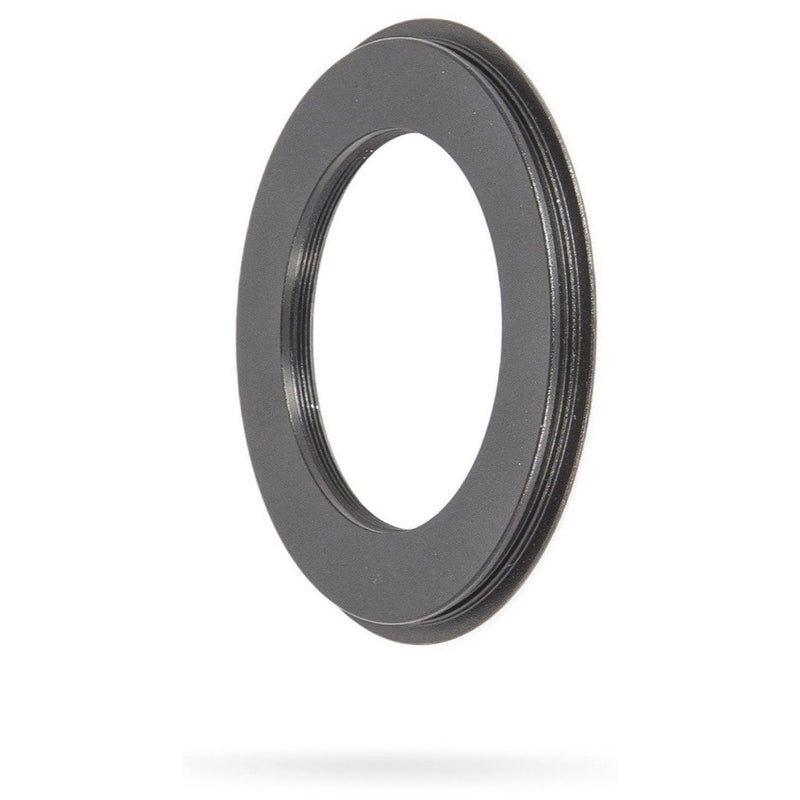

Adaptateur Baader UFC S70 / M48 (int)
côté télescope : filetage intérieur M48
côté caméra : avec queue d'aronde S70
adaptable via la queue d'aronde S70 à la base de filtre UFC #2459110 ainsi qu'aux extensions UFC

Caractéristiques

FABRICANT	Planétarium Baader
UGS (#)	2459129
LONGUEUR OPTIQUE (MM)	1
DIAMÈTRE INTÉRIEUR / FENÊTRE (MM)	47 millimètres
DIAMÈTRE EXTÉRIEUR	75 millimètres
CONNEXION INTÉRIEURE (CÔTÉ LENTILLE)	Filetage, M48
CONNEXION EXTÉRIEURE (OCULAIRE/CÔTÉ CAMÉRA)	Bague queue d'aronde, S70
TYPE D'ADAPTATEUR	Changeur Adaptateur

Baader Universal Filter Changer (UFC) - Dessins techniques

Rapport de test ATT 1/2018 Baader-UFC - le couteau suisse de la technologie de filtrage
