QHYCCD PCIE Grabber Card Kit

QHYCCD PCIE Grabber Card Kit

par QHYCCD
UGC QHY-090043
CA$2,352.00 - CA$2,352.00
CA$2,352.00
CA$2,352.00 - CA$2,352.00
CA$2,352.00
Égalisation de prix!
  • Enables 2x10Gbps High-Speed Data Transfer
  • Includes PCIE Grabber Card
  • Comes with 4 Fiber Modules
  • Includes two 10-meter Fiber Optic Cables
  • For QHY cameras with a 2 x 10GB interface
En rupture temporaire
Alerte de retour en stock
Info disponibilité
Livraison GRATUITE au Canada
  • Description
  • FAQ
  • Specifications
  • In the Box
  • Downloads
  • Warranty

  • PCIE Grabber Card Kit

    The PCIE Grabber Card Kit enables full-speed 2x10Gbps data transfer from compatible QHY cameras using two included 10-meter fiber optic cables. This kit provides one PCIE card and four fiber modules, creating a complete high-bandwidth connection to handle the massive data rates of professional CMOS sensors without bottlenecks.

    Unlocking 2x10Gbps Transfer Speeds for QHY PRO Cameras

    Modern large-format CMOS sensors can produce an enormous volume of data, overwhelming standard USB connections. This QHY Fiber Grabber Card is a PCIE2.0 x8 solution designed to bypass that limitation, supporting 2x10Gbps optical communication directly between your camera and computer for reliable, high-speed image download.

    A Complete 10-meter Kit for Immediate Installation

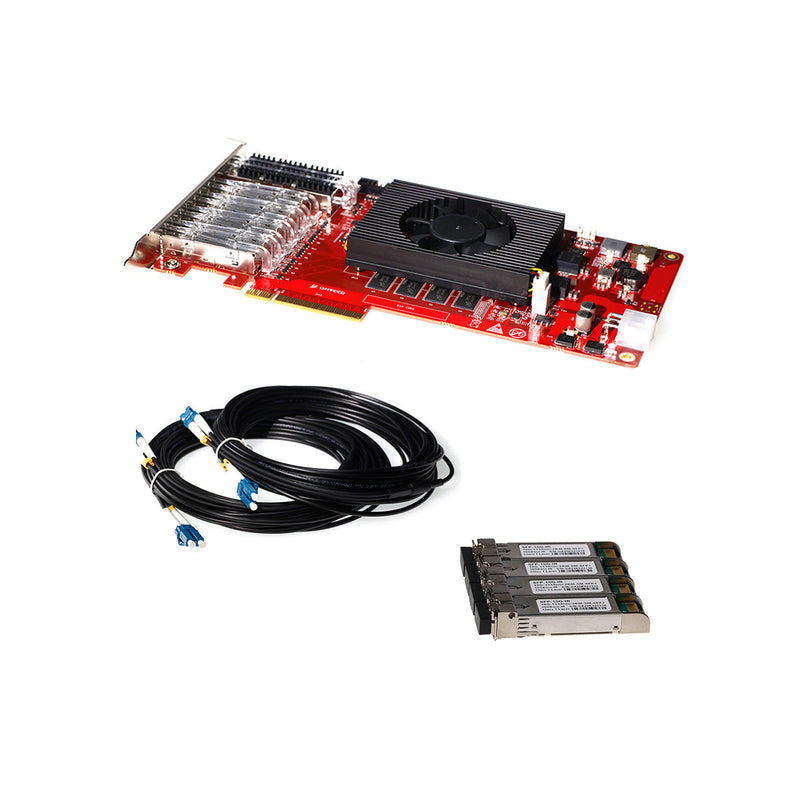

    This kit includes all the necessary components for establishing a fiber optic link. You receive one PCIE data grabber card, four fiber modules, and two 10-meter fiber optic cables, ensuring you can connect your compatible QHY camera right out of the box. This system is required for models with a 2 x 10GB interface, such as the QHY268PRO, QHY600PRO, QHY461, QHY411, and QHY4040PRO.

  • What is the purpose of the PCIE Grabber Card Kit?

    The PCIE Grabber Card Kit is designed to transfer image data from high-resolution QHY cameras to a computer at extremely high speeds. It uses a 2x10Gbps fiber optic connection to prevent data bottlenecks that can occur with standard interfaces, ensuring you can capture frames at the camera's maximum rate.

    Which QHY cameras are compatible with this PCIE Grabber Card Kit?

    This kit is compatible with QHY camera models that feature a 2 x 10GB interface. This includes professional cameras such as the QHY268PRO, QHY600PRO, QHY461, QHY411, and QHY4040PRO.

    Does the PCIE Grabber Card Kit include everything I need to connect my camera?

    Yes, this is a complete kit. It includes:

    • PCIE Card: 1x
    • Fiber Modules: 4x
    • Fiber Optic Cables: 2x (10 meters each)

    My images are misaligned after installing the PCIE Grabber Card Kit. What should I do?

    If you experience misaligned images, the manufacturer suggests checking the physical connections. Power down the system, then carefully reseat the PCIE capture card in its slot and reconnect the fiber optic cables at both the card and camera ends to ensure a secure link.

    I'm using a QHY600PRO for survey work. Will this PCIE Grabber Card Kit prevent data bottlenecks?

    Absolutely. The QHY600PRO is one of the primary cameras this kit is designed for. The 2x10Gbps transfer rate is essential for downloading its large, high-resolution files quickly, making it ideal for high-cadence applications like surveys, lucky imaging, or video astronomy.

    Can I use longer cables with the PCIE Grabber Card Kit for my remote observatory?

    This kit includes two 10-meter cables. While longer fiber optic cables (up to 50 meters) are often available, please contact us to confirm availability and compatibility for your specific remote setup requirements.

  • Product Type Accessories - PCIE Kit; Compatible with models that have 2 x 10GB interface - (Incl. 1 x 090042, 4 x 090041, 2 x 030030)
    Included Components PCIE Card 1x | Fiber Module 4x | Fiber Optic 10m 2x
