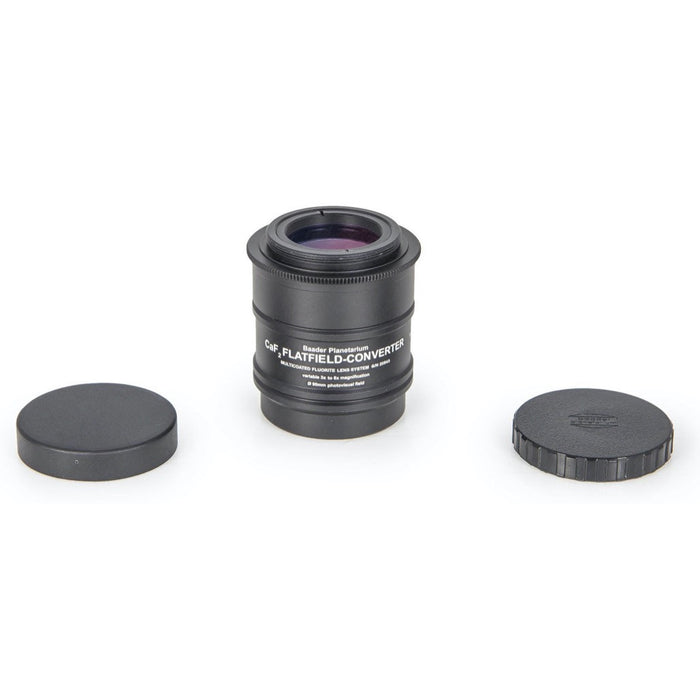

Baader Fluorite Flatfield Converter

A True Fluorite Flatfield Converter: Beyond the Barlow

Unlike a conventional barlow lens which primarily increases magnification, the FFC was designed from the ground up to also eliminate field curvature. This makes it a true "converter," reshaping the optical output of your telescope to produce a perfectly flat focal plane. This is achieved through a sophisticated optical design that required extreme glass types, culminating in the use of genuine CaF2.

The use of Fluorite provides an unparalleled level of sharpness across a very broad spectral range, delivering apochromatic amplification. The result is an optical system with a line resolution far exceeding even legendary eyepiece designs, ensuring the only limit to image sharpness is the main optic of your telescope.

Uncompromised Sharpness Across a Large, Flat Field

Originally designed for the Zeiss APQ apochromats and medium-format film cameras, the FFC produces a fully illuminated and corrected image circle large enough for today's largest CMOS sensors. Even on fast telescopes, the FFC delivers significantly better on-axis sharpness than a classic barlow, which is the deciding factor in planetary and lunar photography.

For the dedicated planetary imager, this means you can exploit the full resolving power of your telescope. The enhanced contrast and resolution allow you to capture finer details in Jupiter's cloud bands or subtle features within the Cassini Division of Saturn's rings, pushing the performance of even relatively small, high-quality telescopes to their absolute limit.

Variable Magnification and Universal T-2 Integration

The FFC offers exceptional flexibility by allowing you to vary the magnification factor simply by changing the distance between the converter and the camera sensor. This allows you to precisely tailor the image scale to match seeing conditions and the target object, from moderate amplification for full-disc lunar shots to extreme magnification for detailed planetary work. The optimal line resolution is achieved at its native design distance, but on-axis sharpness remains diffraction-limited by your telescope even at very high magnifications.

Integration into any imaging train is straightforward. The Baader FFC features a standard T-2 (M42x0.75) thread on the camera side and its main body fits into any 2" focuser or eyepiece clamp. This ensures compatibility with a vast ecosystem of adapters, extension tubes, and off-axis guiders via the Baader Astro T-2 and M68 systems.

Critical Thermal Management for CaF2 Optics

The extraordinary optical properties of Calcium Fluorite come with a significant trade-off: extreme sensitivity to thermal shock. Sudden temperature changes can induce stress in the crystal, potentially causing permanent damage. To preserve this high-end optical system, meticulous care is mandatory.

• Acclimatization is Essential: Never move the FFC from a warm indoor environment directly into cold night air, or vice-versa. Allow it to cool down and warm up gradually inside an insulated case for at least an hour.
• Solar Observing is Forbidden: Do not use the FFC for solar photography. The focused heat can cause rapid, localized temperature changes that will destroy the fluorite elements.
• Warranty Exclusion: Damage caused by thermal stress is detectable and is explicitly excluded from the warranty. This is not a grab-and-go accessory; it is a precision instrument that demands deliberate, careful handling.

FFC vs. Other Baader Barlows: Choosing the Right Amplifier

Baader offers several barlows, each optimized for a different application. The FFC stands at the pinnacle for uncompromising, large-field imaging, but other options may be more suitable for different goals.

• vs. Zeiss Abbe Barlow: The Zeiss Abbe is the premier choice for the common visual magnification range. It offers legendary quality for visual observers who want a compact, high-contrast amplifier without the FFC's large-field correction or thermal sensitivity.
• vs. VIP Barlow: The VIP (Visual and Photographic) is a versatile workhorse calculated for full-frame (35mm) sensors. It's the ideal solution when you need excellent correction for standard camera formats without the cost and handling requirements of the FFC.
• vs. Q-Turret Barlow: This inexpensive and high-quality barlow is designed for flexibility at lower magnifications. Its removable lens element can be threaded directly into eyepieces or camera noses, making it perfect for fine-tuning image scale on planetary cameras with long-focus telescopes.
