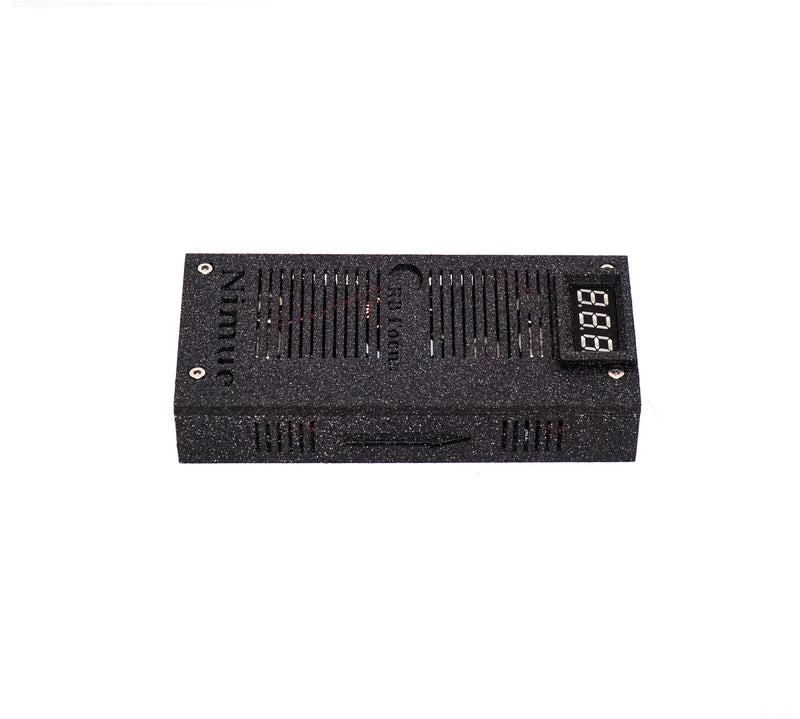

RB Focus Nimue V1.0 12.6V Power Regulator
The RB Focus Nimue V1.0 is a regulator that stabilizes and filters power from a battery or transformer, delivering 12.6V from any input between 10.5V and 35V. It supports a maximum load of 10A, weighs 100 g, and protects against over-discharge and short circuit.
Stable 12.6V Output from a 10.5V to 35V Source
The Nimue V1.0 holds its output at 12.6V whatever the input voltage between 10.5V and 35V, which RB Focus says makes it ideal for running from batteries.
Safely Use Batteries Down to 10.5V
RB Focus says the stabilized output lets you discharge batteries safely down to 10.5V while the equipment keeps a constant supply, avoiding damage or sudden shutdowns as the battery runs down, so you get more hours from smaller batteries. According to RB Focus's own testing, a full night (8 hours) is possible with only a 50 Ah battery, even with cooled cameras.
100g Body with Voltage Display and XT30 Connectors
The Nimue V1.0 measures 105 x 50 x 17 mm and weighs 100 g. A display shows the battery or transformer input voltage in real time. It uses XT30 connectors, rated up to 30A, which RB Focus chose because they carry that load without heating up or loosening.
-
What is the main benefit of using the RB Focus Nimue V1.0 instead of connecting my gear directly to a battery?
It keeps the output at 12.6V as the battery voltage drops, so your equipment gets a constant voltage and avoids sudden shutdowns as the battery runs down.
How does the RB Focus Nimue V1.0 help me get more out of my field battery?
It allows you to safely discharge your battery down to 10.5V while still providing a constant 12.6V to your gear. This lets you use your battery's full charge capacity without worrying about voltage sag causing equipment to shut down prematurely.
Can the Nimue V1.0 power a cooled camera and mount all night?
RB Focus says that in its tests a full night (8 hours) was possible with only a 50 Ah battery, even with cooled cameras. The total load must stay within 10A.
What kind of connectors does the Nimue V1.0 use?
XT30 connectors, rated up to 30A. Two XT30 male connectors are included for making your cables.
Will the RB Focus Nimue V1.0 work with a 24V power source?
Yes. The regulator accepts any input voltage between 10.5V and 35V, so a 24V supply or battery works; the output is 12.6V.
What happens if my battery voltage drops below 10.5V while using the Nimue V1.0?
RB Focus states over-discharge protection and that batteries can be discharged safely down to 10.5V; it gives no further detail on what the unit does below that.
-
| Input voltage |
10.5 to 35 V |
| Output voltage |
12.6 V, stabilized |
| Maximum load |
10 A |
| Connectors |
XT30 (rated up to 30 A) |
| Display |
Input voltage meter |
| Protection |
Over-discharge and short circuit |
| Weight |
100 g |
| Dimensions (L x W x H) |
105 x 50 x 17 mm |
-
-
RB Focus Nimue V1.0 (12.6V)
× 1
-
-
RB Focus 2-Year Warranty
