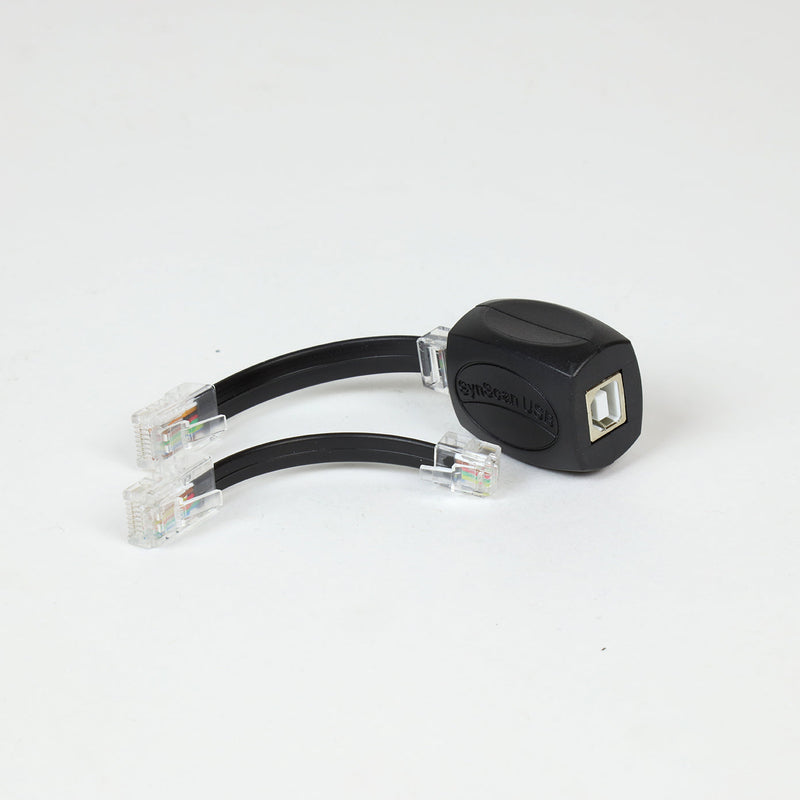

Sky-Watcher SynScan USB Adapter

Sky-Watcher SynScan USB Adapter

by Sky-Watcher
SKU SW-S30107
Sold out
$30.00 - $30.00
$30.00
$30.00 - $30.00
$30.00
Price Match Policy!
  • Converts a Sky-Watcher GoTo mount's serial connection to a USB-B port
  • USB 2.0 connection to your PC
  • Controls the mount directly, without the hand controller
  • Works with the SynScan Pro App for Windows
  • Lets you update the mount's motor control firmware
  • Includes EQ (8-pin to 8-pin) and AZ (8-pin to 6-pin) cables
Out of stock
Qualifies for FREE Shipping in CONUS on orders over $350.
  • Description
  • FAQ
  • Specifications
  • In the Box
  • Downloads
  • Warranty

  • Sky-Watcher SynScan USB Adapter

    The Sky-Watcher SynScan USB Adapter lets you connect a Sky-Watcher GoTo mount that has a serial port to a PC through a USB-B port, replacing outdated serial connections. Over its USB 2.0 link, you can control the mount directly from the SynScan Pro App for Windows or your astrophotography software, without the hand controller, and update the mount's motor control firmware. Both cables are included: an EQ cable (8-pin to 8-pin) and an AZ cable (8-pin to 6-pin).

    Direct PC Control Without the Hand Controller

    Plug the adapter into your mount and your computer, and the PC takes over GoTo and tracking commands. You can run the SynScan Pro App for Windows or the astrophotography software you already use for imaging sessions, and keep the hand controller in the case.

    2 Cables Included for EQ and AZ Mounts

    The EQ cable (8-pin to 8-pin) connects to Sky-Watcher equatorial mounts, and the AZ cable (8-pin to 6-pin) connects to alt-azimuth mounts. With both cables in the box, the same adapter works across most SynScan mounts in your collection.

  • Which mounts does the SynScan USB Adapter work with?

    It is designed for Sky-Watcher GoTo mounts with a serial port and works with most SynScan mounts. Use the EQ cable (8-pin to 8-pin) for equatorial mounts and the AZ cable (8-pin to 6-pin) for alt-azimuth mounts.

    Do I still need the hand controller?

    No. The adapter connects the mount directly to your PC, so you can control it without the hand controller.

    Which software can I use with it?

    Sky-Watcher designed it for the SynScan Pro App for Windows, and it also lets you control the mount from astrophotography software on your PC.

    Can I update my mount's firmware with this adapter?

    Yes. Sky-Watcher lists updating the mount's motor control firmware as one of the adapter's uses.

    Do I need this adapter if my mount already has a USB port?

    No. The adapter is intended for mounts with a serial port. Mounts that already include a USB port, such as the EQ8-R, connect to a PC directly.

  • UPC 050234301077
    Connectivity
    Computer Connection USB 2.0 (USB-B port)
    Mount Connection Serial port, via the EQ or AZ cable
    EQ Cable 8-pin to 8-pin
    AZ Cable 8-pin to 6-pin
    Compatibility
    Mounts Sky-Watcher GoTo mounts with a serial port (most SynScan mounts)
    Software SynScan Pro App for Windows
    Hand Controller Required No

    • SynScan USB Adapter

      × 1

    • EQ Cable (8-pin to 8-pin)

      × 1

    • AZ Cable (8-pin to 6-pin)

      × 1

  • Sky-Watcher 2-Year Limited Warranty
