SVBONY F9134 Professional Geological Compass Pocket Transit
SVBONY Professional Geological Compass Pocket Transit - Black
SVBONY Professional Geological Compass Pocket Transit - Black
SVBONY F9134 Professional Geological Compass Pocket Transit

SVBONY Professional Geological Compass Pocket Transit - Black

by SVBONY
SKU SV-F9134A
$15.77 - $15.77
$15.77
$15.77 - $15.77
$15.77
Price Match Policy!
  • Professional Geological Pocket Transit
  • Lightweight at 106g (3.7oz)
  • Compact Dimensions: 80mm x 70mm x 32mm
  • Integrated Clinometer for Vertical Angles
  • Sighting Mirror with Lubber Line
  • Durable Plastic and Glass Construction
Backordered
Request Stock Alert
Availability Info
Qualifies for FREE Shipping in CONUS on orders over $350.
  • Description
  • FAQ
  • Specifications
  • In the Box
  • Downloads
  • Warranty

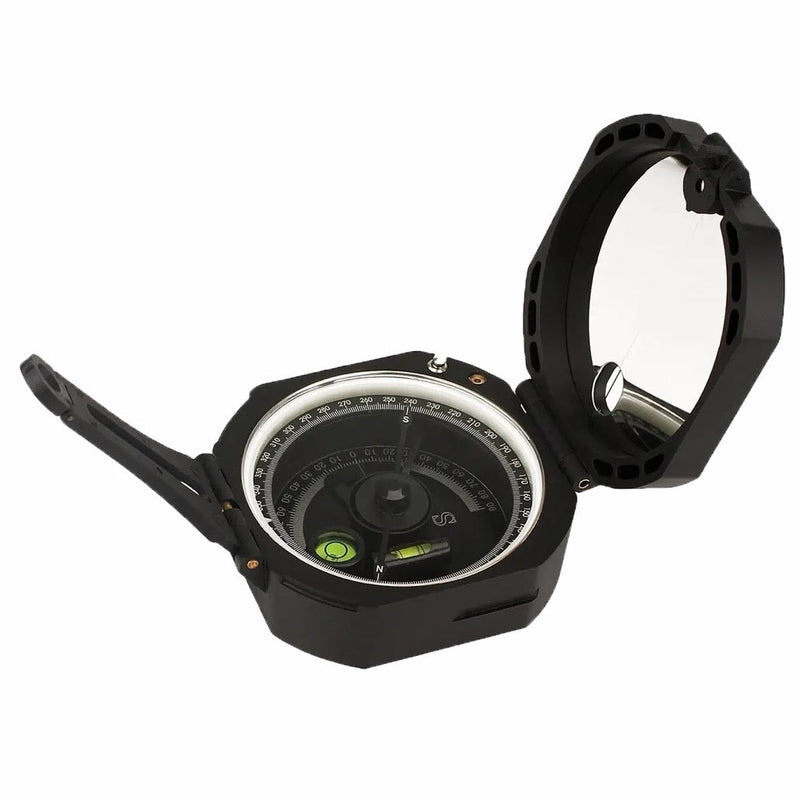

  • SVBONY F9134 Professional Geological Compass Pocket Transit

    The SVBONY F9134 Professional Geological Compass is engineered for geologists, surveyors, and engineers who require a reliable navigation and measurement tool in a compact form. Weighing just 106g, its durable plastic and glass housing measures 80mm long by 70mm wide, creating a true pocket transit for demanding fieldwork.

    A 106g Professional Transit Compass with Needle Lock

    Designed for professional use, the F9134 features a dry compass capsule with a quick-dampening needle for fast, stable readings. A gear-driven adjustable declination allows for simple compensated bearings. To protect the instrument's accuracy between measurements, a needle-lock mechanism secures the compass assembly during transit.

    Integrated Clinometer in a 70mm Wide Body

    Beyond directional bearings, this transit includes a vertical angle clinometer for measuring inclination and dip. The sighting system is enhanced with a sighting mirror, lubber line, and adjustable sighting points for taking precise bearings on distant objects. A dedicated clinometer level and compass bubble level ensure your measurements are always properly referenced.

    Compact 80mm x 32mm Design for Fieldwork

    The entire instrument is built for portability and functionality in the field. Its total weight of 106g (3.7oz) makes it unnoticeable in a pack or pocket, reducing fatigue during long surveys. While the plastic housing keeps the compass exceptionally light, it requires more careful handling than heavier metal-bodied transits to ensure long-term reliability.

  • What is the main purpose of the SVBONY F9134 compass?

    The SVBONY F9134 is a professional-grade pocket transit designed for geologists, surveyors, mining engineers, and civil engineers. It is used for taking precise directional bearings, measuring vertical angles (dip and strike), and general field navigation.

    How does the needle-lock on the SVBONY F9134 protect the compass?

    The needle-lock is a crucial feature that secures the compass needle when the instrument is not in use or is being transported. This prevents the delicate needle assembly from damage due to shock or vibration, preserving the compass's accuracy over time.

    Is the SVBONY F9134 compass suitable for geological fieldwork in rough terrain?

    Yes. Its lightweight 106g design and compact 80mm x 70mm x 32mm dimensions make it ideal for carrying in rough terrain. The durable plastic construction is built for field use, and features like the needle-lock and bubble levels are essential for obtaining accurate data in challenging environments.

    What are the sighting mirror and lubber line on the SVBONY F9134 used for?

    The sighting mirror on the SVBONY F9134 allows you to view the compass dial while simultaneously sighting a distant landmark through the sighting notch. The lubber line is a fixed line on the mirror that you align with the target, ensuring you are reading the exact bearing of the object you are sighting.

    Can I use the SVBONY F9134 to measure the dip of a rock stratum?

    Absolutely. The SVBONY F9134 includes an integrated clinometer specifically for this purpose. By placing the side of the compass flat against the rock layer, you can directly read the angle of dip using the clinometer scale, making it an essential tool for structural geology.

    How heavy is the SVBONY F9134 compass?

    The SVBONY F9134 is very lightweight, weighing only 106 grams (3.7 ounces). This makes it easy to carry in a pocket or on a lanyard all day without causing fatigue.

  • Material Plastic, glass
    Length 80mm
    Width 70mm
    Height 32mm
    Weight 106g / 3.7oz
    Color Black

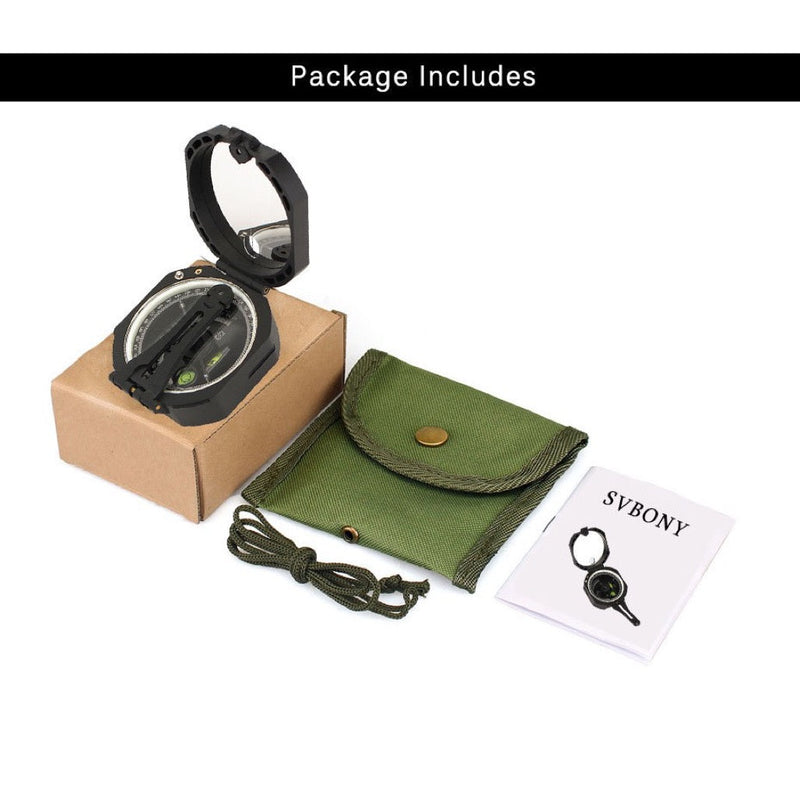

    • SVBONY F9134 Compass

      × 1
