SVBONY SV208 8x50 Correct-Image Illuminated Finder Scope
- 50mm Aperture
- 8x Magnification
- 7.3° Field of View
- Correct-Image Orientation
- Illuminated Crosshair Reticle

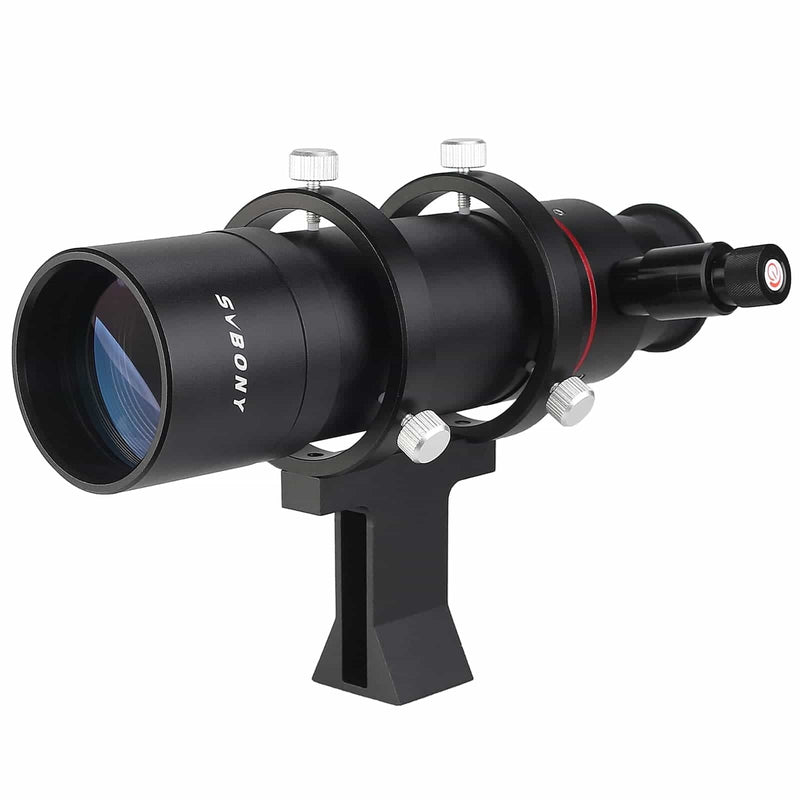

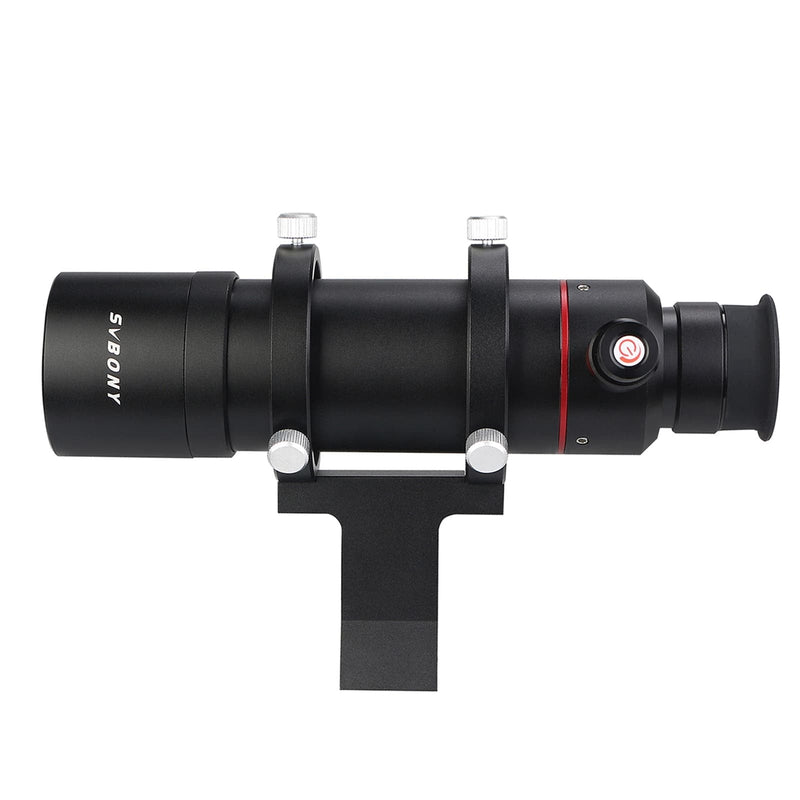

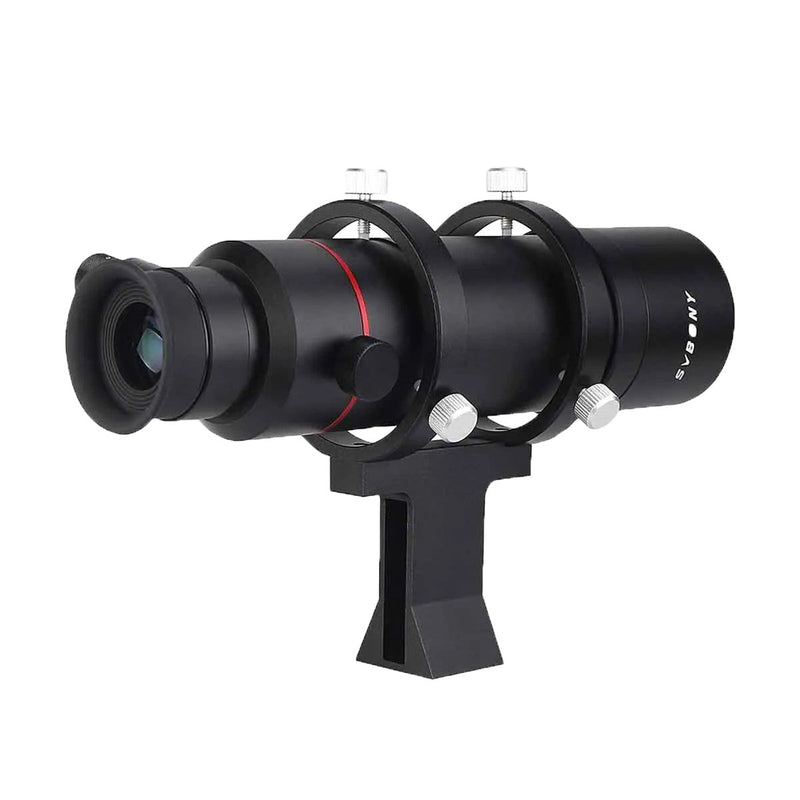

The SVBONY SV208 8x50 Correct-Image Illuminated Finder Scope combines a large 50mm achromatic objective with 8x magnification to pull in faint guide stars that smaller finders miss. Its expansive 7.3° field of view makes it easy to frame entire asterisms for navigation, while the 6.25mm exit pupil delivers a bright image. With a comfortable 21mm of eye relief, this 632.5g finder provides intuitive, correct-image aiming for any telescope.
The SV208's 50mm aperture gathers significantly more light than standard 30mm or 40mm finders, revealing dimmer stars necessary for locating faint deep-sky objects. The fully multi-coated, 2-element achromatic objective ensures these star fields are sharp and high-contrast. This light-gathering power is paired with a generous 7.3° true field of view, wide enough to encompass large star patterns like the pointers of the Big Dipper or the entirety of the Pleiades (M45), simplifying your alignment process.
Unlike standard astronomical finders that present an inverted or mirrored view, the SV208 features a correct-image orientation. What you see through the eyepiece matches the view of the naked eye and star charts, eliminating the mental gymnastics of reversing directions. This makes star-hopping from a known star to your target a direct and intuitive process. For precise centering, an illuminated optical crosshair reticle stands out against the dark sky without washing out faint stars.
While a right-angle correct-image (RACI) finder offers more comfortable viewing angles for objects near the zenith, the SV208's straight-through design has a distinct advantage in pointing accuracy. Looking directly along the telescope's optical axis makes it easier and more intuitive to aim the entire instrument at a target, especially when initially slewing to a new region of the sky. This design is often preferred by imagers and those who value precise, rapid alignment over viewing comfort for extended periods.
The primary advantage is intuitive navigation. The correct-image orientation means the view is not flipped or mirrored, so up is up and left is left, just like with binoculars or your naked eye. This makes it much easier to compare the view to a star chart and "hop" from one star to the next to find your target without confusion.

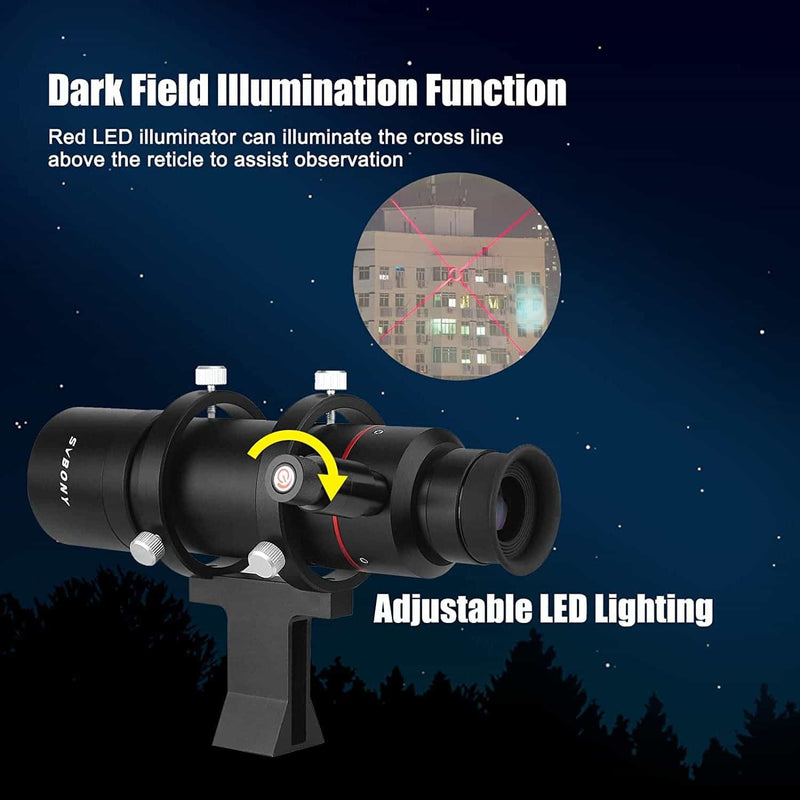

The illuminated crosshair allows you to see the reticle clearly against a dark sky background. This is crucial for accurately centering a faint guide star or deep-sky object. Without illumination, a black crosshair can be difficult or impossible to see, making precise alignment challenging.

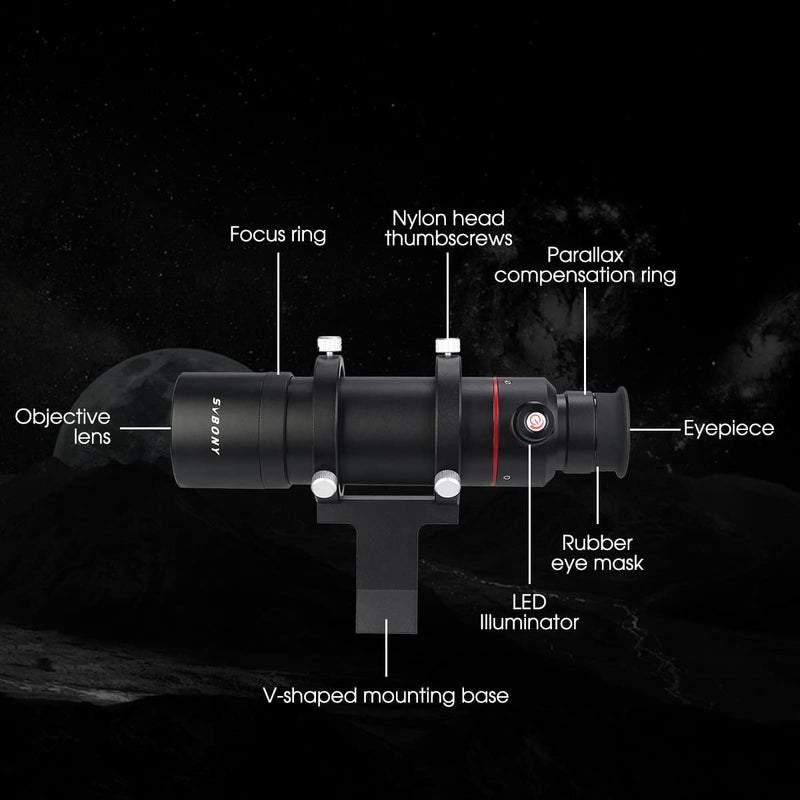

The SV208 features an adjustable objective lens for focusing. You can achieve a sharp focus on the crosshair reticle by adjusting the eyepiece, and then focus on distant stars by turning the main objective lens cell at the front of the finder. Once set for your vision, it typically does not need frequent readjustment.

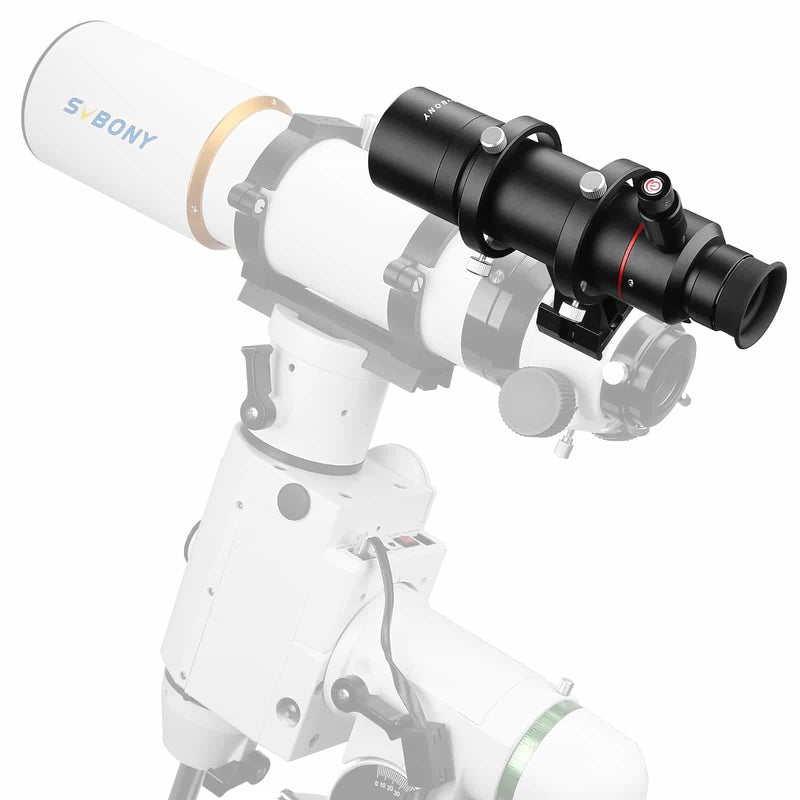

The SV208 is designed to be a universal finder scope. It typically mounts to a telescope using a standard dovetail-style finder bracket. Most commercial telescopes from brands like Celestron, Sky-Watcher, and Explore Scientific come with a compatible finder shoe, making installation straightforward.
Yes, the SV208 is an excellent choice for an 8" Dobsonian. Its 50mm aperture will help you spot the faint stars of the Lyra constellation needed to locate the Ring Nebula (M57). The 7.3° field of view is wide enough to frame the entire constellation, and the correct-image view makes hopping from Vega to the parallelogram of Lyra simple and direct.
Absolutely. Because the SV208 provides a correct image, it works perfectly for terrestrial spotting during the day. When attached to an SCT, it acts as a low-power, wide-field spotting scope, making it easy to locate distant objects like ships, birds, or landmarks before switching to the high-power view of the main telescope.
| Objective Lens Diameter | 50mm |
| Magnification | 8x |
| Focal Length | 185mm |
| Field of View | 7.3° |
| Exit Pupil | 6.25mm |
| Eye Relief | 21mm |
| Image Orientation | Correct-image |
| Objective Design | Achromatic 2-Element |
| Lens Coating | Fully Multi-Coated (FMC) |
| Reticle | Optical Cross-hair |
| Illumination | Yes |
| Focus Adjustment | Yes |
| Angle Adjustment | Yes |
| Net Weight | 632.5g / 23.21oz |
