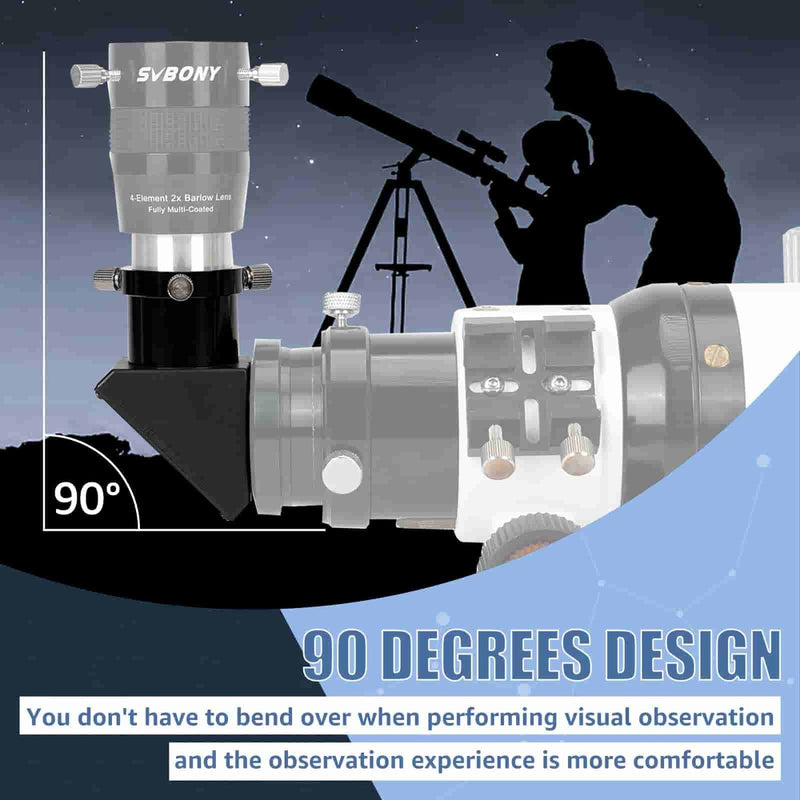

What is the main purpose of the SVBONY SV221 diagonal?
The SVBONY SV221 is a 90° mirror diagonal designed for refractor and Schmidt-Cassegrain telescopes. Its primary purpose is to bend the light path at a right angle, allowing you to observe comfortably, especially when the telescope is pointing towards the zenith (straight up).

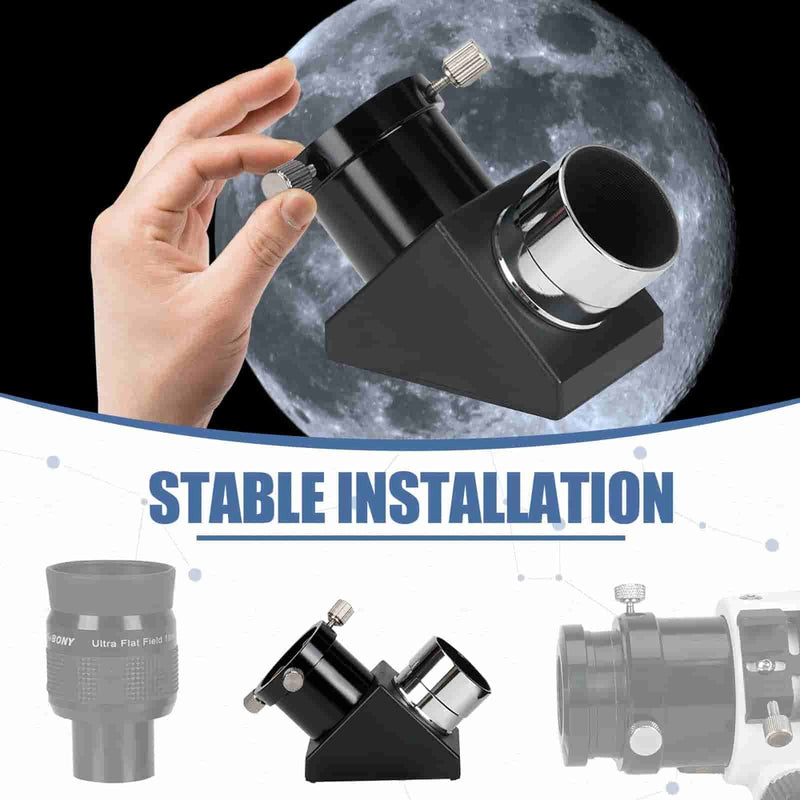

How does the brass pressure ring on the SV221 protect my eyepieces?
The brass compression ring provides a significant advantage over simple set-screw designs. When you tighten the clamp, the soft brass ring gently and evenly squeezes the eyepiece barrel. This holds it securely in place without the screw tip digging into the barrel, which prevents the scratches and gouges common with lower-quality diagonals.

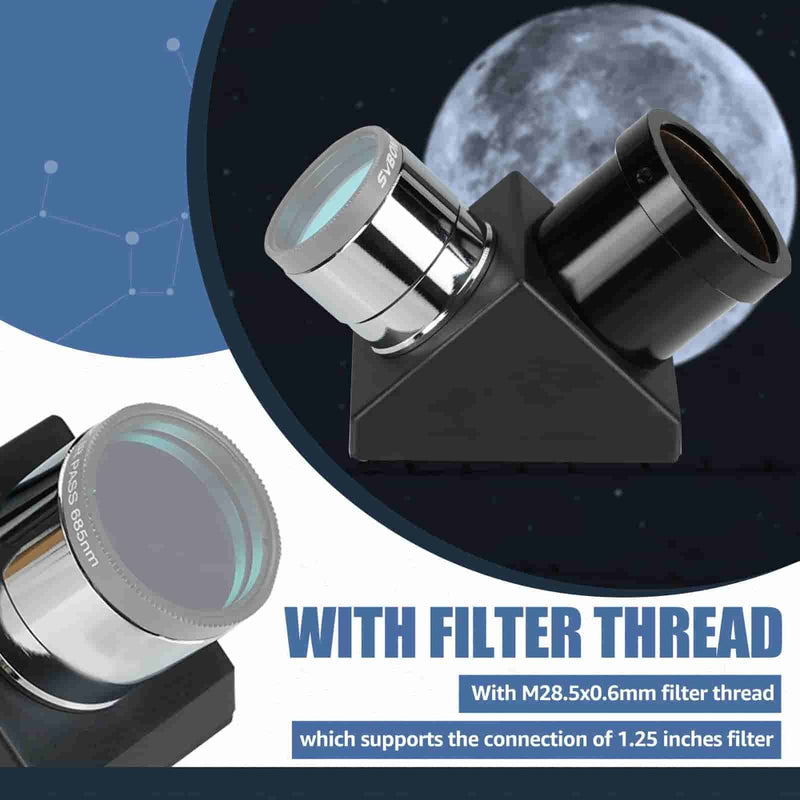

Can I use 1.25" filters with the SVBONY SV221?
Yes. The 1.25" nosepiece of the SVBONY SV221 has standard M28.5x0.6 threads. This allows you to screw any standard 1.25" filter, such as a moon filter or a nebula filter, directly onto the diagonal itself.
Is the SVBONY SV221 suitable for observing Jupiter with my 80mm refractor?
Absolutely. The SVBONY SV221 is an excellent choice for planetary viewing with an 80mm refractor. Its >92% reflectivity ensures that the bright image of Jupiter (and its moons) reaches your eyepiece with minimal light loss, preserving contrast and detail in the planet's cloud bands. The 90° angle will make observing much more comfortable as Jupiter climbs higher in the sky.
What does "Erect Image, Mirror Inverted" mean for the view through the SV221?
This describes the image orientation. "Erect Image" means the view is right-side up, but "Mirror Inverted" means it is flipped left-to-right. For astronomy, this is perfectly acceptable as there is no "up" or "down" in space. However, it means that text or terrestrial objects would appear backward, making it less suitable for daytime terrestrial viewing.
I find it difficult to look through my refractor when it's pointed at the zenith. Will the SVBONY SV221 diagonal help?
Yes, this is exactly what the SVBONY SV221 is designed for. By redirecting the light path by 90°, it allows you to look down into the eyepiece from a comfortable standing or seated position, even when the telescope is aimed directly overhead. This completely solves the issue of having to crouch or kneel to use your refractor.
