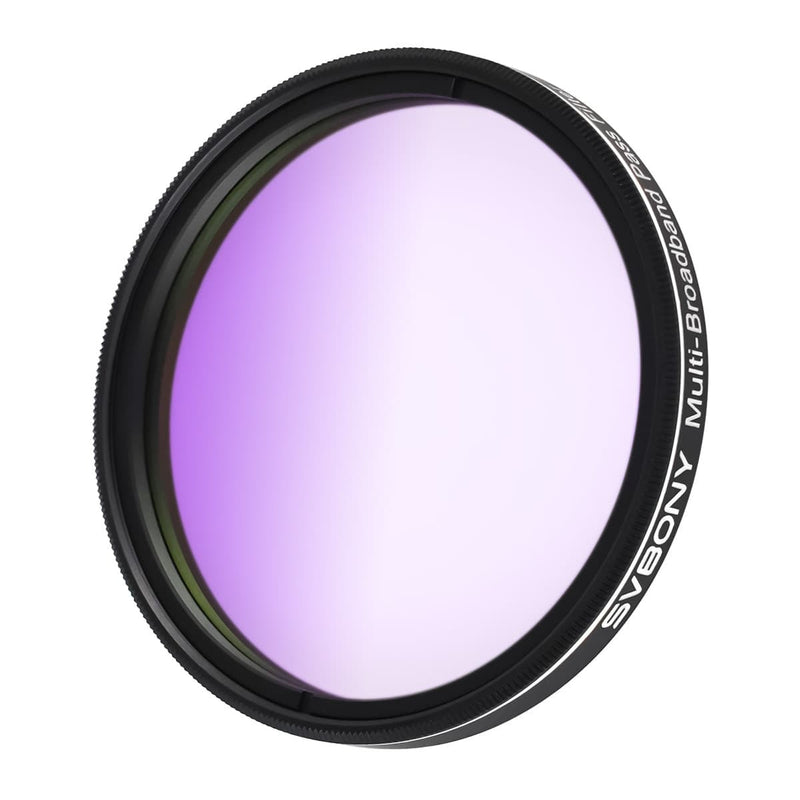

SVBONY SV260 5-Bandpass Light Pollution Filter - 2"

OD4 Blocking: Isolating Specific Light Pollution Sources

The SV260's primary function is to surgically remove the most common wavelengths of artificial skyglow. It achieves an Optical Density (OD) of 4 or greater in the 350-400nm and 720-1100nm ranges, effectively blocking over 99.99% of unwanted light from these sources. Specific high-pressure sodium (Na) and mercury (Hg) vapor streetlight emissions are heavily suppressed, darkening the image background and dramatically increasing contrast on your target.

5-Bandpass Design: Capturing Full-Spectrum Color at 90% Transmittance

Unlike narrowband filters that isolate single emission lines, the SV260 passes light in five distinct bands across the spectrum. This approach allows the faint, continuous spectra of broadband targets—such as the dusty arms of a galaxy or the blue glow of a reflection nebula—to reach your sensor. With a peak transmittance of over 90%, the filter maximizes the signal you want to capture, resulting in shorter total integration times and images with more accurate, vibrant color balance.

Optical Build: A 44mm Clear Aperture for Modern Sensors

Engineered for modern imaging systems, the SV260 is built into a standard 2-inch filter cell with M48x0.75 threads for universal compatibility with filter wheels and camera nosepieces. The filter features a generous 44mm clear aperture, which is critical for preventing vignetting on cameras with APS-C or larger sensors. The 2mm substrate thickness maintains optical precision, with a surface parallelism of 1/2λ to avoid introducing distortions into the light path.

SV260 vs. Narrowband Filters: Choosing Natural Color Over Maximum Contrast

An imager's choice of filter depends entirely on the target. The SV260 excels where narrowband filters fall short.

• Broadband Targets: For galaxies like Andromeda (M31), reflection nebulae like the Pleiades (M45), and globular clusters like M13, the SV260 is the correct tool. It preserves the natural stellar colors and faint outer structures that narrowband imaging completely misses.
• Emission Nebulae: For targets dominated by Hydrogen-alpha and Oxygen-III, such as the North American Nebula (NGC 7000), a dedicated narrowband or dual-band filter will provide higher contrast. The trade-off is the loss of natural star color and the need for complex color mapping in processing.

The SV260 is designed for one-shot-color cameras, delivering a more authentic representation of the night sky directly from your data, making it an essential tool for capturing the full diversity of deep-sky objects.
