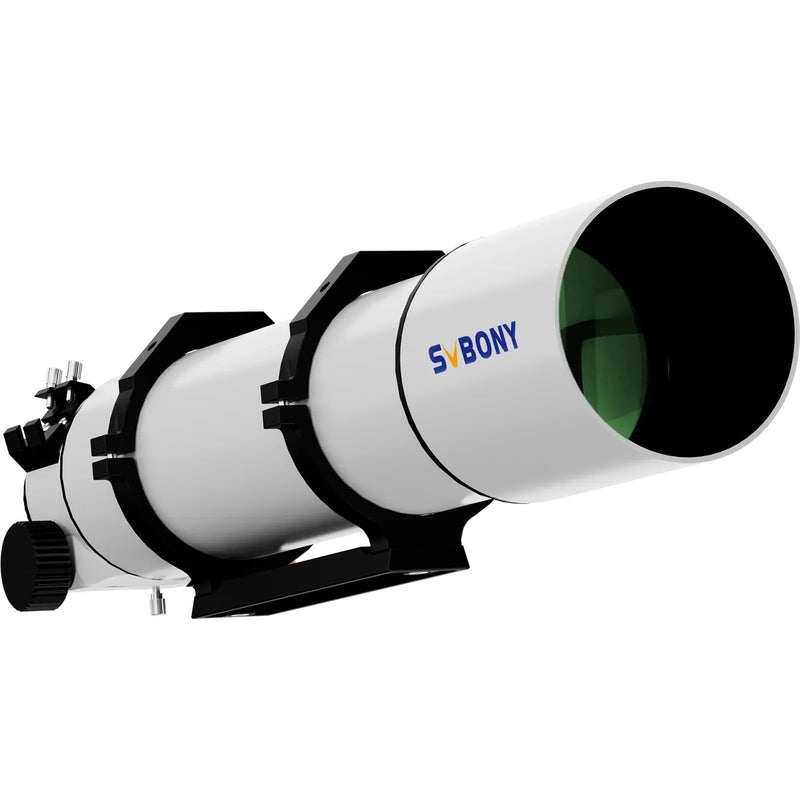

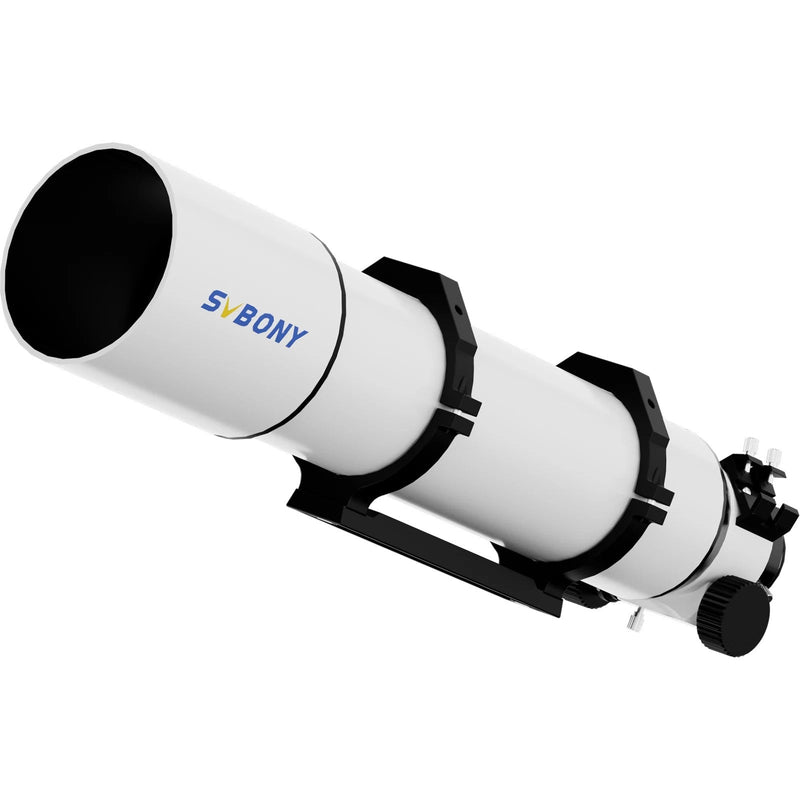

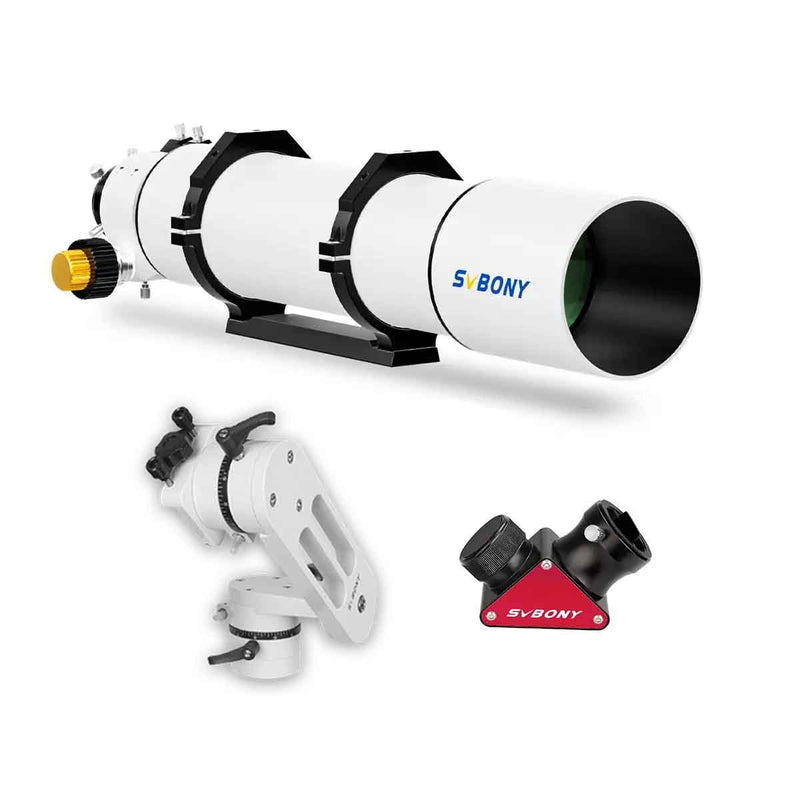

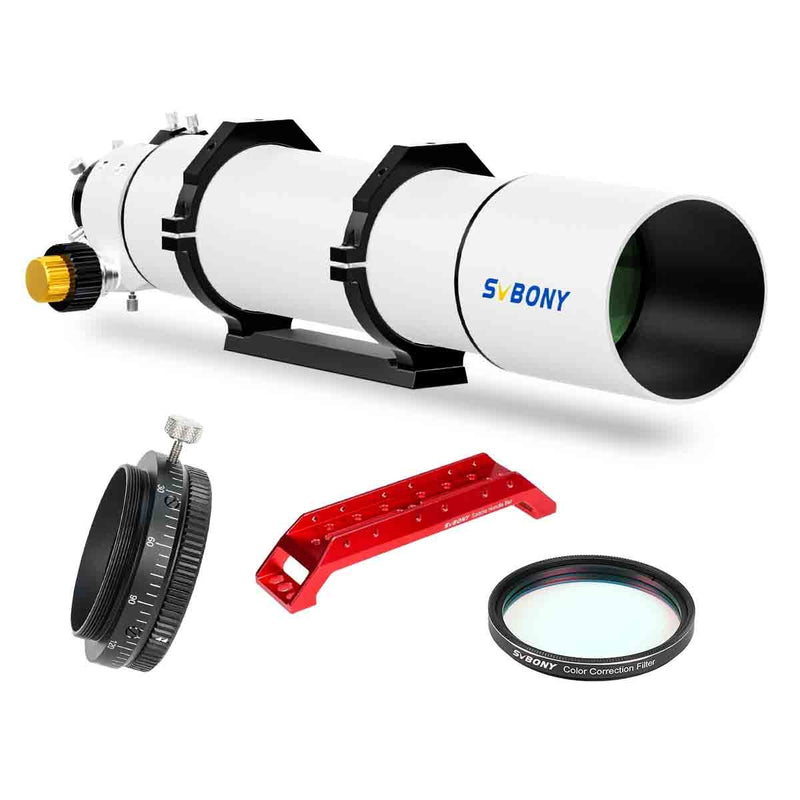

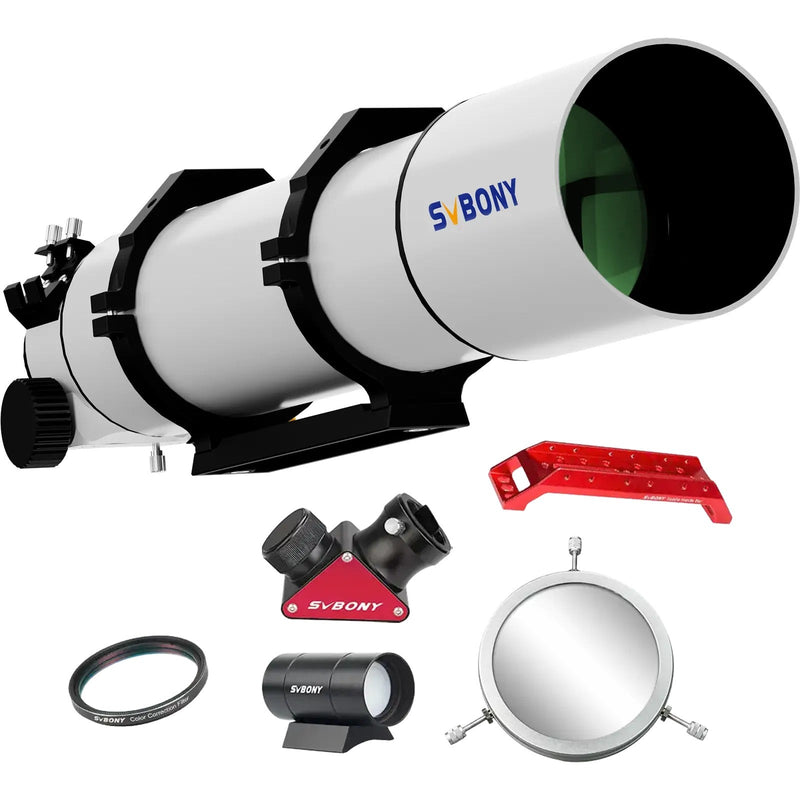

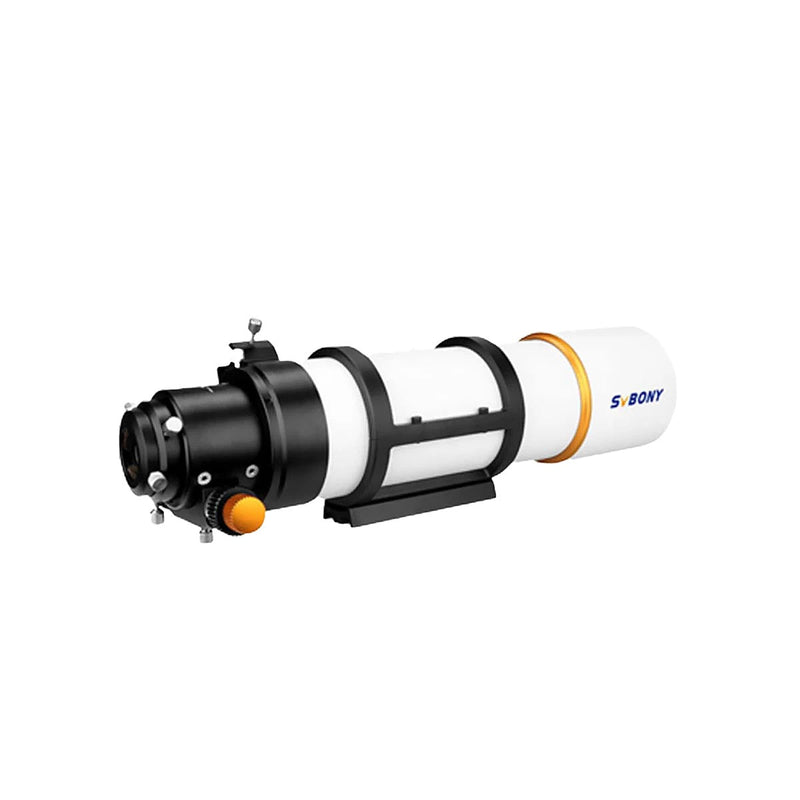

SVBONY SV48P 102mm f/6.5 Achromatic Refractor Telescope OTA
- 102mm Aperture
- 663mm Focal Length (f/6.5)
- Achromatic Doublet Lens
- 2.5-inch Dual-Speed RAP Focuser
- 210mm Vixen-Style Dovetail
The Svbony SV48P refractor combines a 102mm air-spaced doublet objective with a versatile f/6.5 focal ratio, making it an excellent instrument for wide-field views of deep-sky objects. With a focal length of 663mm, this telescope delivers bright images of nebulae and galaxies, while its heavy-duty 2.5-inch dual-speed Rack and Pinion (RAP) focuser provides the stability and precision required for both visual astronomy and imaging.
The heart of the SV48P is its 102mm objective lens, which gathers significantly more light than smaller beginner refractors, resolving finer detail in star clusters and brighter nebulae. The f/6.5 focal ratio strikes a balance between the fast, wide fields of a rich-field telescope and the higher magnification potential of a longer instrument, making it well-suited for observing large targets like the Andromeda Galaxy (M31) or the Orion Nebula (M42).
Unlike standard entry-level focusers, the SV48P is equipped with a 2.5-inch dual-speed Rack and Pinion unit. This larger, more robust design prevents flexure and wobble when using heavy 2-inch eyepieces or a DSLR camera. The dual-speed control allows for rapid coarse adjustments to find initial focus, while the fine-focus knob enables critical, tack-sharp adjustments for high-magnification viewing or imaging.
The SV48P's 102mm aperture and f/6.5 focal ratio make it ideal for wide-field deep-sky objects. It excels at framing large open star clusters like the Pleiades (M45), diffuse nebulae like the North American Nebula (NGC 7000), and large galaxies like the Andromeda Galaxy (M31).
Yes, as a doublet achromatic refractor, the SV48P will exhibit some chromatic aberration (false color, typically a purple fringe) on very bright objects. This will be most noticeable on the limb of the Moon, planets like Jupiter and Venus, and bright stars. This is an expected trade-off for the affordability and simplicity of this optical design.
The telescope has a net weight of 3400g (7.5 lbs). You will need a sturdy astronomical mount with a Vixen-style saddle that is rated to carry at least 10-12 lbs to ensure stability. An equatorial mount like a Celestron AVX or Sky-Watcher EQM-35 would be a good match for both visual use and entry-level astrophotography.

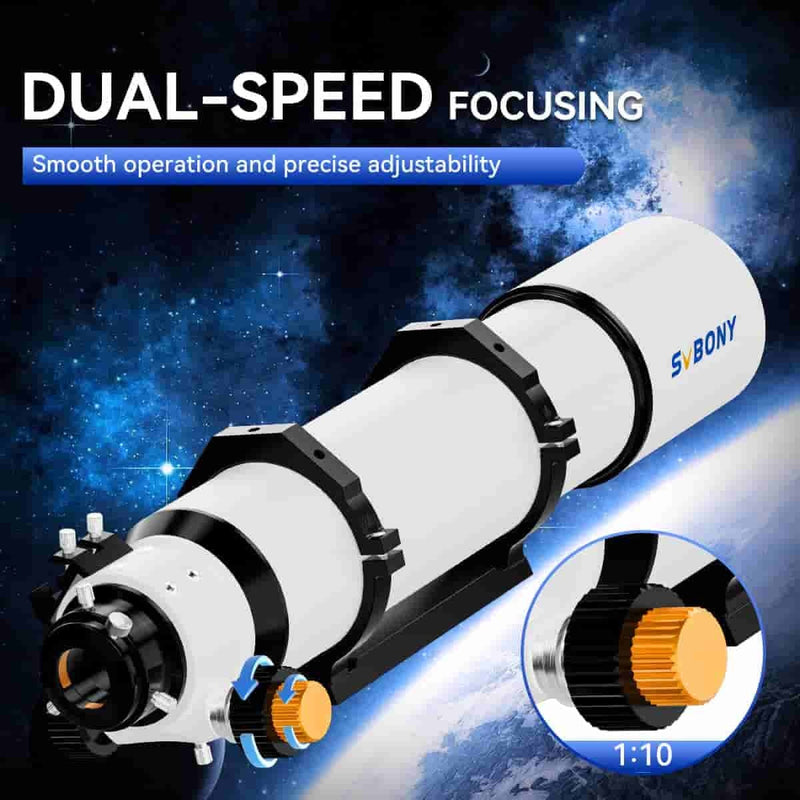

The 2.5-inch dual-speed RAP focuser offers two main advantages. The large diameter provides a rigid, stable platform for heavy accessories like 2-inch eyepieces or cameras, preventing image shift. The dual-speed control allows you to make large focus changes quickly with the coarse knob and then use the 10:1 fine-focus knob to achieve critical sharpness, which is essential for astrophotography.
From a typical suburban location, the SV48P's 102mm objective will easily reveal the bright core of the Orion Nebula, including the four prominent stars of the Trapezium. With a low-power 2-inch eyepiece, you can frame the entire "sword" region. The f/6.5 optics will provide a bright enough image to show the extended nebulosity and wispy "wings" of M42, especially when using a UHC or light pollution filter.

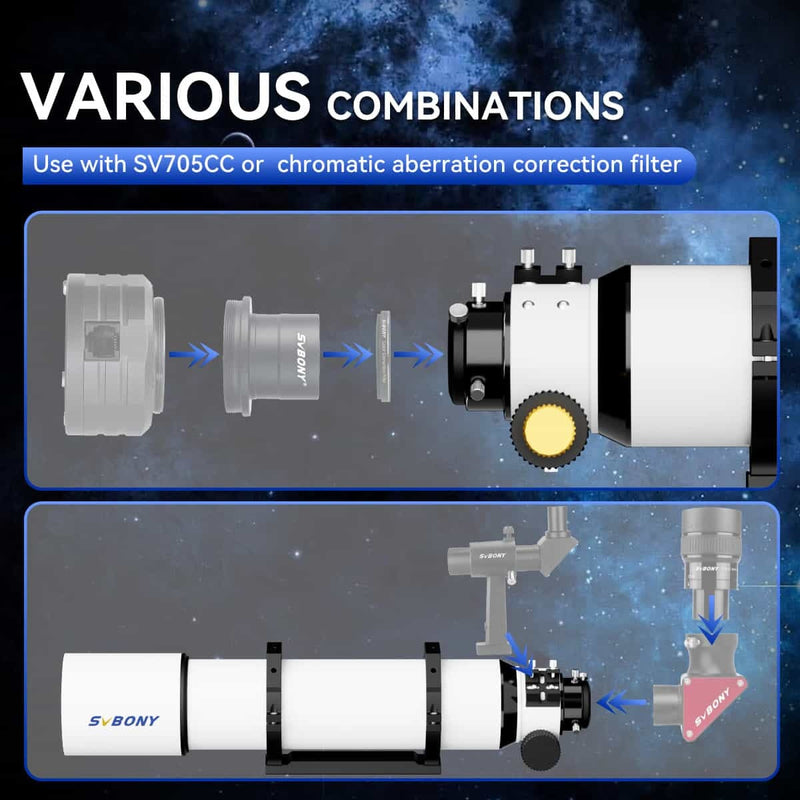

Yes, the SV48P is a capable telescope for starting in astrophotography, particularly for wider-field images of star clusters and large nebulae. Its robust 2.5-inch focuser can handle the weight of a DSLR or a dedicated astronomy camera. For best results, pairing it with a field flattener is recommended to correct for field curvature at the edges of the image.
| Brand | SVBONY |
| Optical Design | Refractor |
| Aperture | 102mm |
| Focal Length | 663mm |
| Focal Ratio | F/6.5 |
| Objective Lens | Doublet air spaced achromatic design |

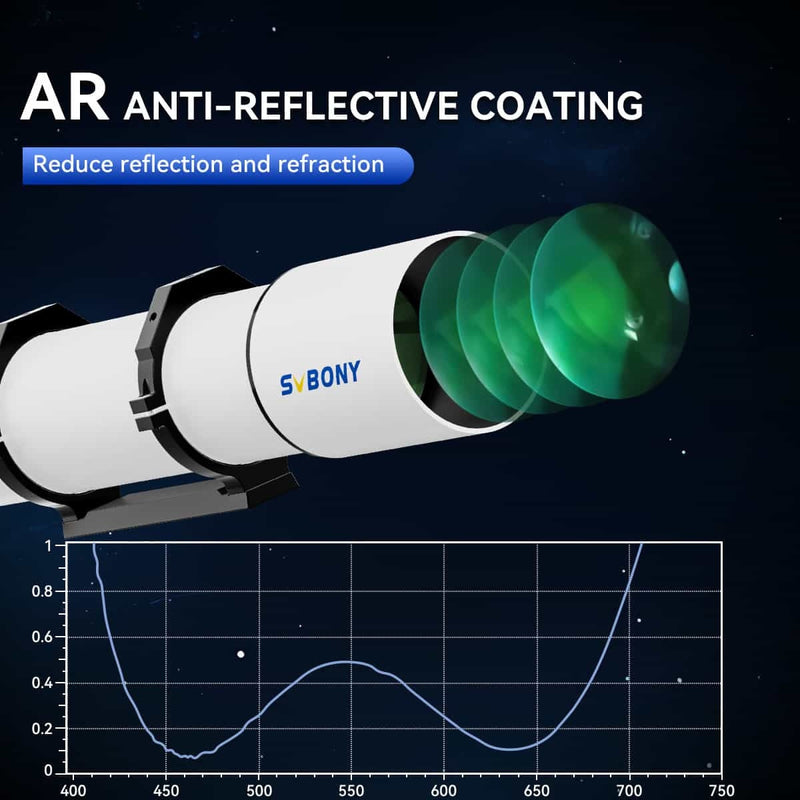

| Optical Coatings | Fully Multi-Coated (FMC) |
| Focuser | 2.5-inch RAP Double Speed Focuser |

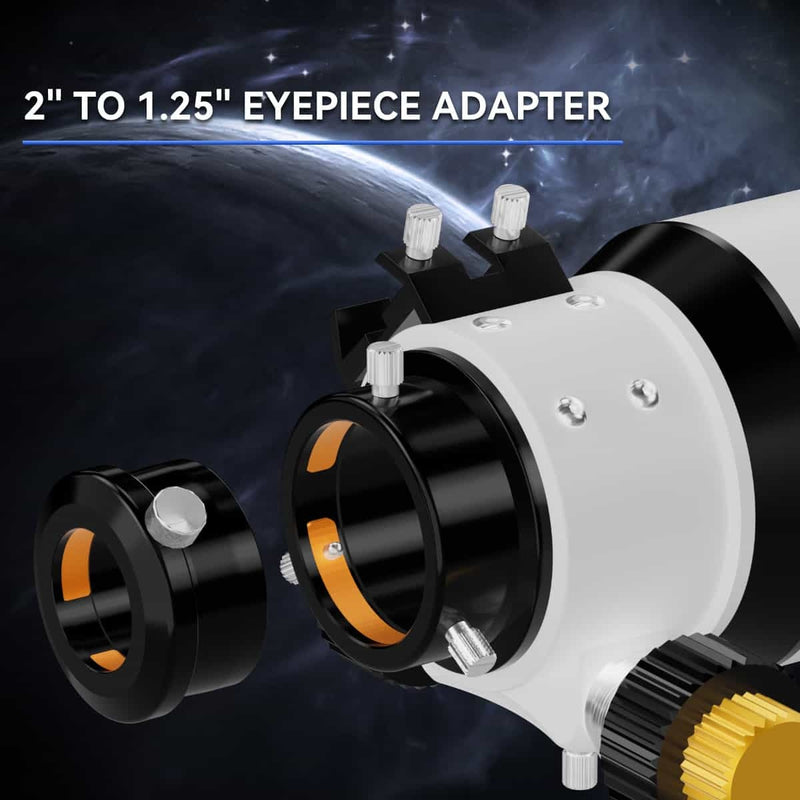

| Eyepiece Barrel Diameter | 2-inch (with 1.25-inch adapter) |
| Drawtube Markings | Yes, millimeter markings |
| Focuser Rotation | No |
| Mount Type | Vixen-style Dovetail Plate |
| Dovetail Plate Length | 210mm |
| Finder Scope Bracket | Yes |
| Included Dust Plug | One 1.25" dust plug |
| Net Weight | 3400g |
| Dimensions | 720 x 270 x 230mm |
