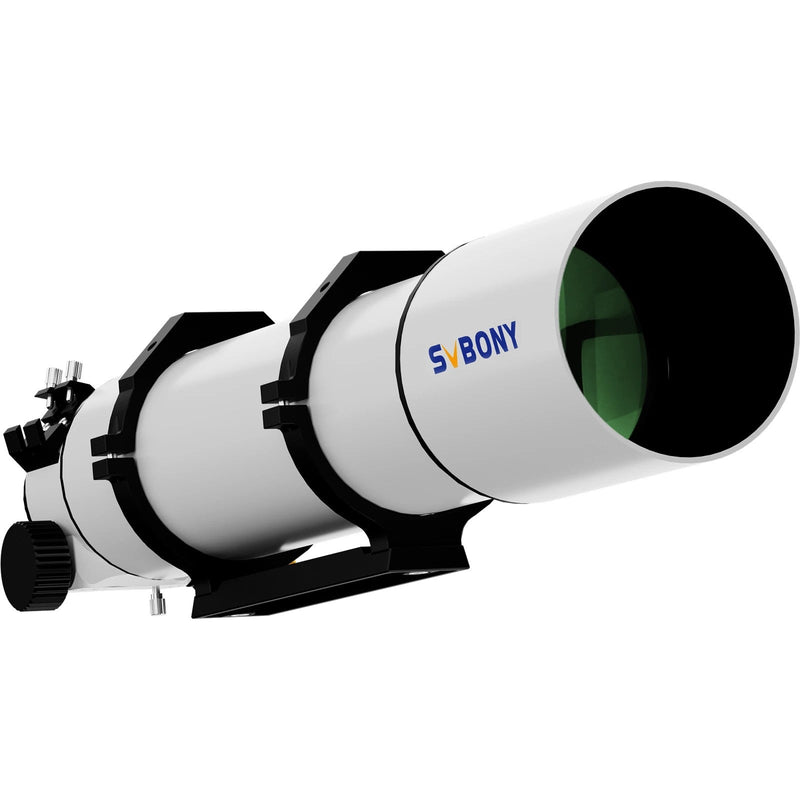

SVBONY SV48P 90mm f/5.5 Achromatic Refractor Telescope OTA

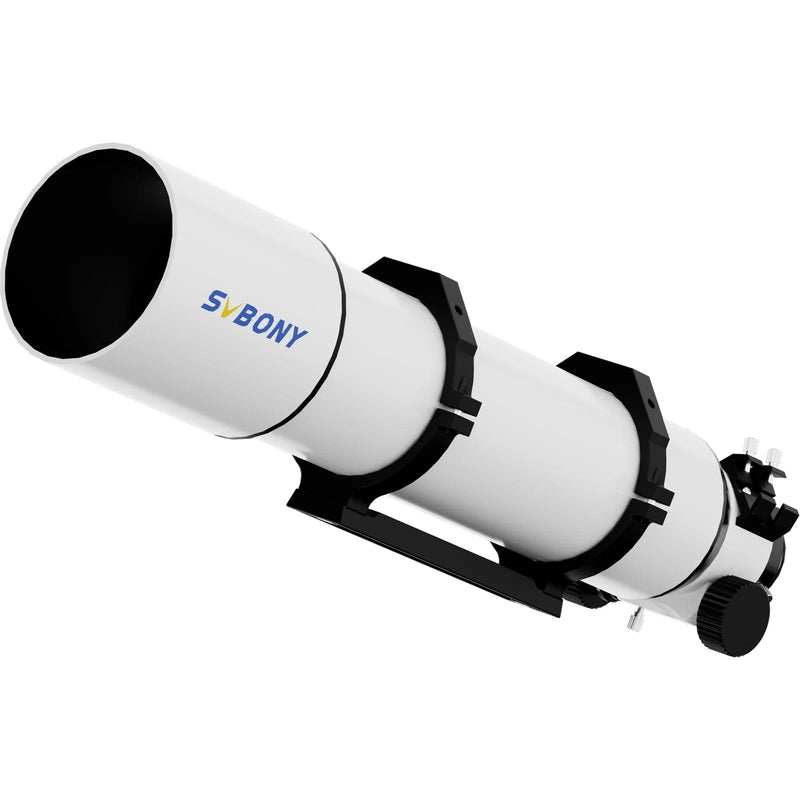

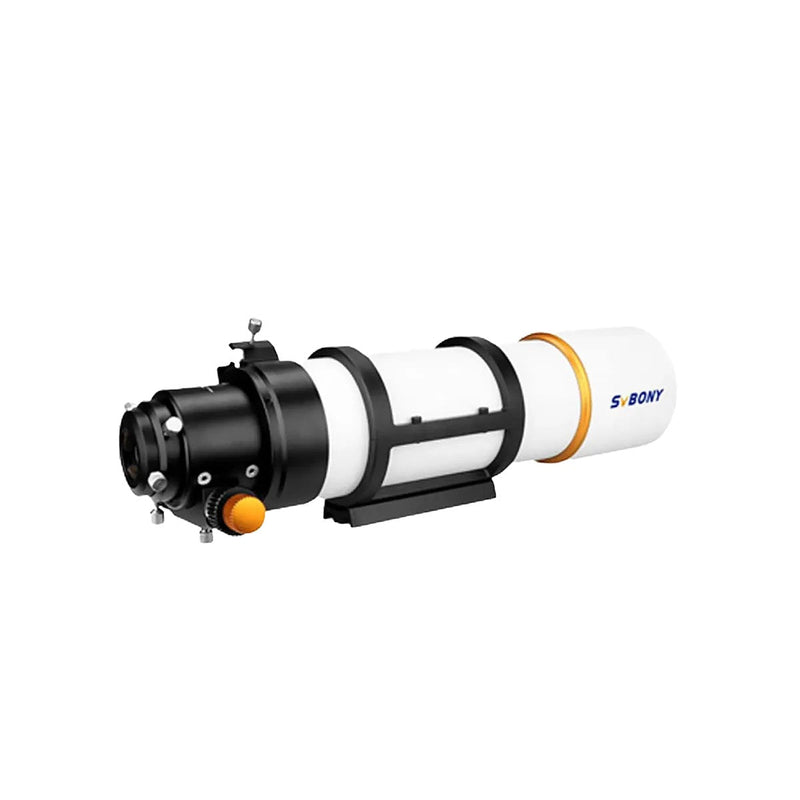

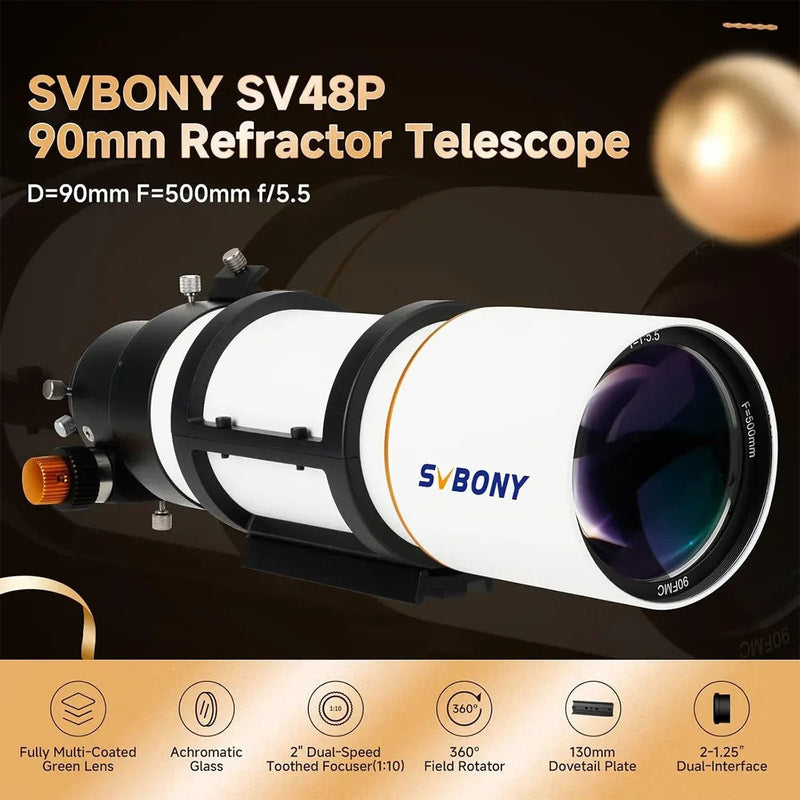

SVBONY SV48P: A 90mm f/5.5 Wide-Field Imaging OTA

The SV48P is engineered as an accessible entry point into deep-sky astrophotography. Its optical design centers on capturing large areas of the night sky, suited to framing expansive targets that are too large for longer focal length instruments. The 90mm objective lens and fast f/5.5 optical system deliver a bright image scale well-suited for nebulae, large galaxies, and dense star clusters.

The SV48P also works as a rich-field visual telescope. When paired with a low-power 2-inch eyepiece, it provides sweeping views of the Milky Way, making it a versatile instrument for both photographers and observers who prioritize a wide field of view.

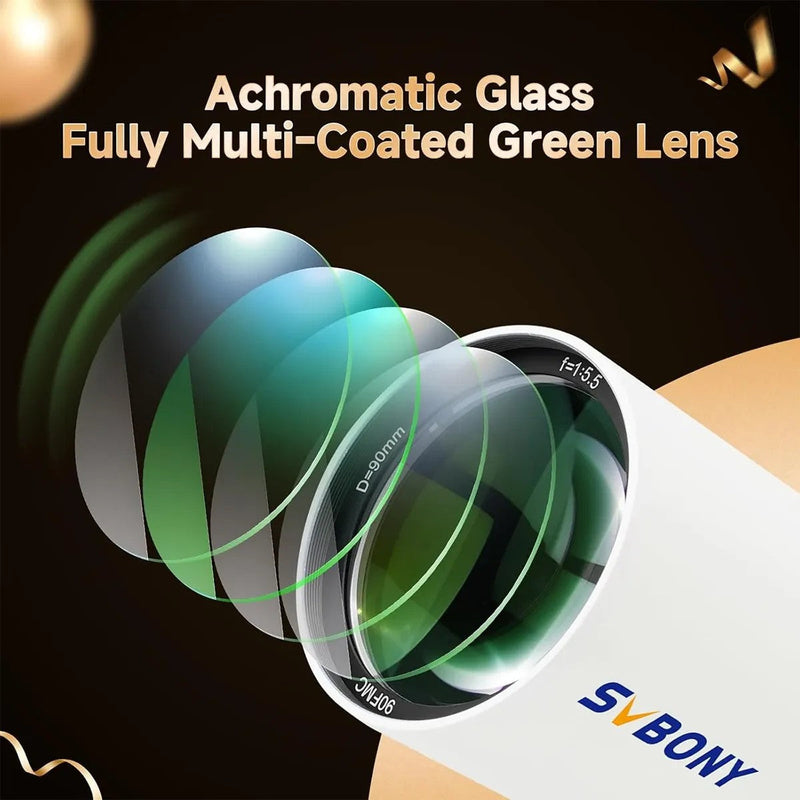

The SV48P's Air-Spaced Doublet: ZF4/K9 Glass and FMC Optics

At the heart of the SV48P is a doublet air-spaced achromatic objective lens. This design uses two glass elements, made from ZF4 and K9 optical glass, to bring the primary colors of the visual spectrum to a focus. The air gap between the lenses provides an additional degree of freedom for the optical designer to control aberrations compared to a cemented doublet.

All air-to-glass surfaces feature Fully Multi-Coated (FMC) optics to maximize light transmission and reduce internal reflections. This ensures that the maximum amount of light from your target reaches the eyepiece or camera sensor, resulting in higher contrast and brighter images, which is especially important when imaging faint deep-sky objects.

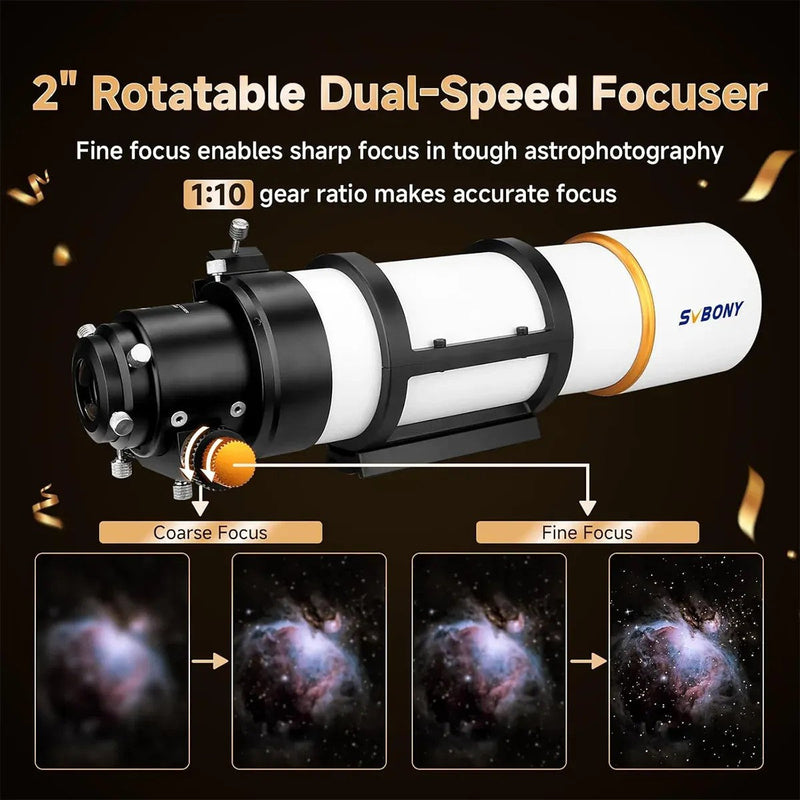

A 2-inch, 1:10 Dual-Speed Rack-and-Pinion Focuser

Achieving tack-sharp focus is non-negotiable in astrophotography, and the SV48P is equipped with a robust 2-inch rack-and-pinion (RAP) focuser to meet this demand. The dual-speed mechanism features a 1:10 reduction ratio, allowing you to make extremely fine adjustments with the smaller knob to bring stars to sharp points. This level of control is crucial when using DSLRs or dedicated astronomy cameras with small pixels.

• 2-inch Barrel: Accommodates wide-field 2-inch eyepieces, diagonals, and camera adapters for maximum flexibility and illumination of larger sensors.

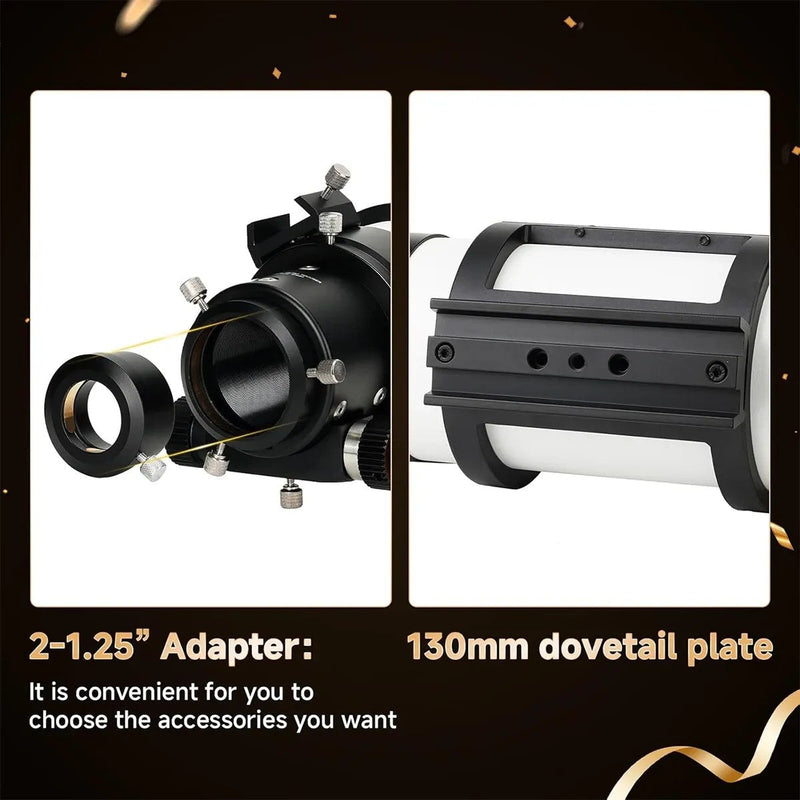

• 1.25-inch Adapter: An included step-down adapter provides compatibility with the vast majority of standard eyepieces and accessories.

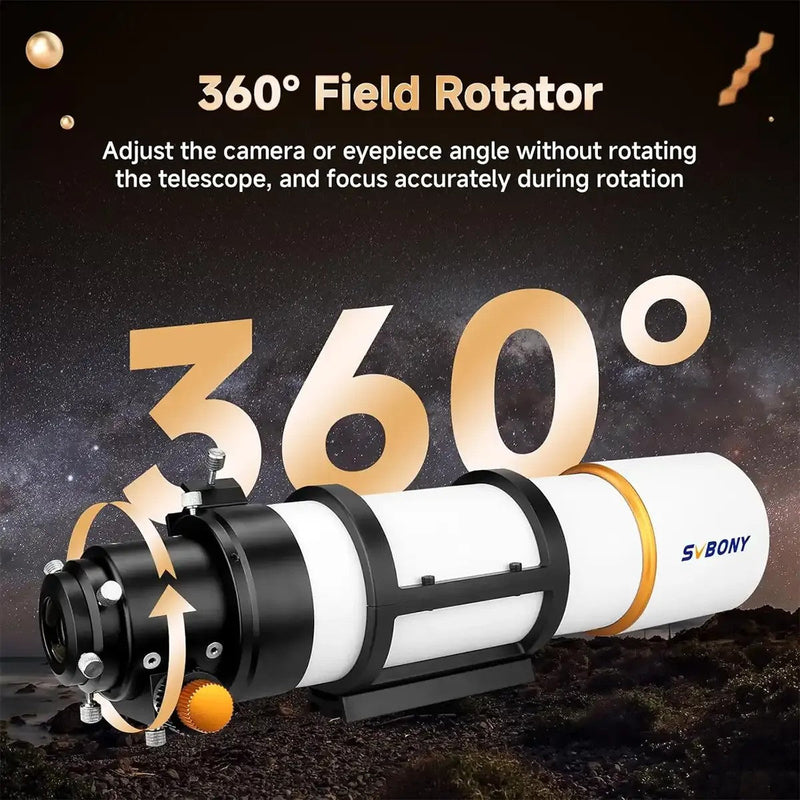

• 360° Rotation: The focuser rotates 360°, allowing you to easily frame your astrophotography target without rotating the entire optical tube in its rings.

Prime-Focus Astrophotography with the SV48P

The SV48P is designed for prime-focus imaging, where a camera is attached directly to the telescope's focuser. The 500mm focal length is forgiving for many entry-level equatorial mounts, making it easier to achieve round stars during long exposures. The fast f/5.5 focal ratio helps capture more signal in less time, reducing the total integration time needed for faint nebulae.

To connect a DSLR or dedicated astronomy camera, you will typically need a T-ring specific to your camera brand and a 2-inch T-adapter. A clear focus scale helps you return to an approximate focus position quickly when switching between different cameras or accessories.

Rich-Field Views Through a 500mm Focal Length

For visual observers, the SV48P's 500mm focal length excels at providing low-magnification, wide-field views of the sky. When used with a 2-inch diagonal and a long-focal-length 2-inch eyepiece, this telescope becomes a "rich-field" instrument, suited to scanning the star clouds of Cygnus or framing the entirety of the Pleiades (M45) star cluster in a single field.

While its primary strength is low-power sweeping, it is also capable of higher-magnification views of the Moon and planets. Using 1.25-inch eyepieces will reveal craters on the Moon and the primary cloud belts of Jupiter, though some false color will be present on these bright objects due to the achromatic design.

A 2730g OTA Designed for Portable Mounts

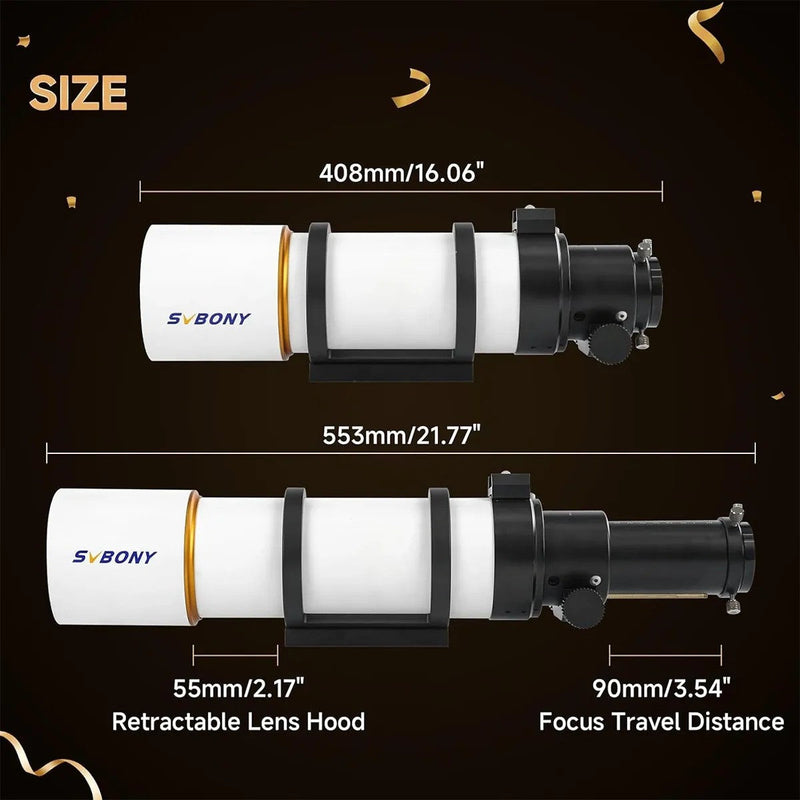

At a net body weight of just 2730g (96.3 oz), the SV48P optical tube assembly is light for its 90mm aperture. This suits a "grab-and-go" imaging rig or for traveling to dark-sky sites. Its low weight makes it compatible with a wide range of entry-level and portable equatorial mounts.

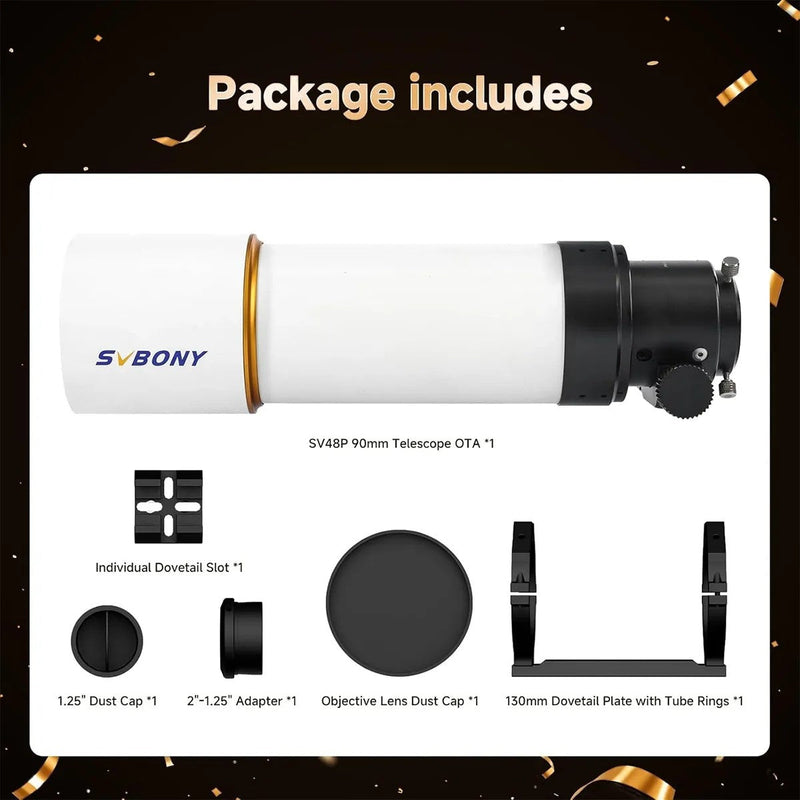

The optical tube has an outer diameter of 108mm, allowing for easy mounting with common tube ring sizes if you choose to upgrade from the included mounting hardware. A dovetail plate is included to simplify attachment to most modern equatorial and alt-azimuth mounts right out of the box.

Managing Chromatic Aberration in an f/5.5 Achromat

As an achromatic refractor, the SV48P gathers plenty of light for its size, but it's important to understand the optical trade-offs. Its doublet lens corrects for red and blue light but does not bring all wavelengths to the same perfect focus. This results in a degree of chromatic aberration, which appears as a faint purple or blue halo around the brightest stars and the limb of the Moon.

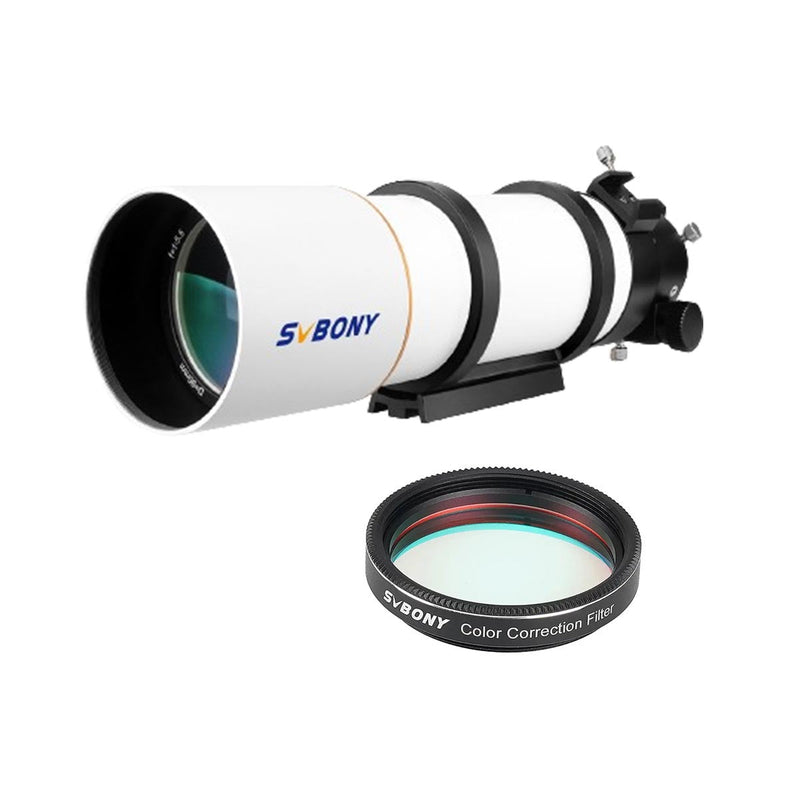

This is a normal characteristic of all achromatic designs, and it is more pronounced in fast focal ratio scopes like this f/5.5 instrument. For astrophotography, this effect can be significantly reduced with "minus-violet" filters or during post-processing. For visual use, it is most noticeable at high magnifications on very bright objects and is less of a factor when observing faint deep-sky targets.

SVBONY SV48P vs. 80mm ED Doublets: 90mm of Aperture vs. Color Purity

When considering the SV48P, a common comparison is against an 80mm ED doublet refractor. The choice between them depends on your primary goal.

• The ED Refractor's Advantage: An 80mm scope using Extra-low Dispersion (ED) glass will virtually eliminate the chromatic aberration seen in the SV48P. This results in higher-fidelity color on bright stars and is a significant optical advantage for color purity.
• The SV48P's Advantage: The SV48P offers a larger 90mm aperture, which translates to more light-gathering power than an 80mm scope. This allows for slightly shorter exposures on faint nebulae.
