SVBONY SV503 70mm f/6.78 Quadruplet ED Flatfield Refractor Telescope OTA

The SV503 70mm f/6.78 Quadruplet: A Dedicated Astrograph

SVBONY designs the SV503 70 for astrophotography with its built-in flat field, and also describes visual use with a diagonal or extension tube. The integrated corrector removes the separate flattener from the imaging train.

At 2685g with accessories, it suits compact equatorial mounts and travel to dark-sky sites.

4-Element Optics: FPL51 and Lanthanum ED Glass

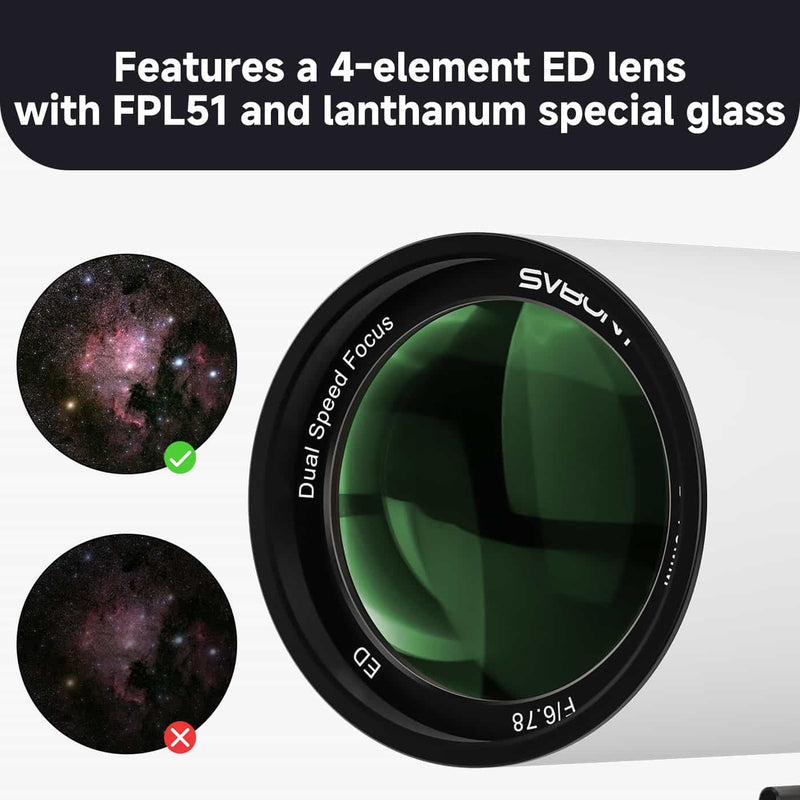

At the heart of the SV503 70 is a quadruplet optical system. The front objective is a 2-element design utilizing FPL51 Extra-low Dispersion (ED) glass paired with a lanthanum element. This combination reduces chromatic dispersion and improves contrast.

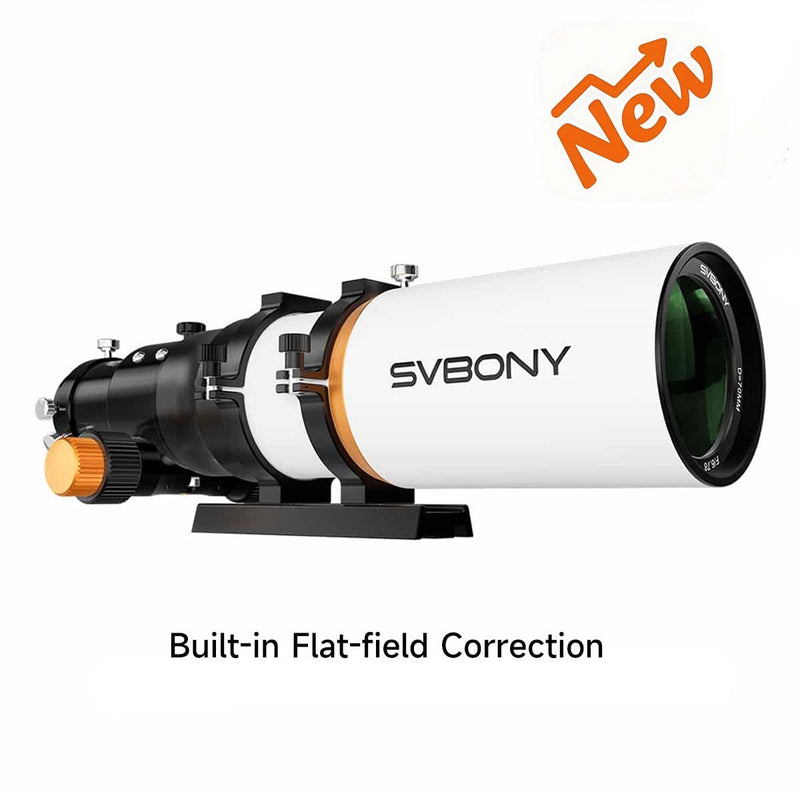

This objective works in conjunction with a 2-element corrector permanently installed further down the optical tube. The corrector removes field curvature for a flat field without edge blur.

70mm Aperture & 474mm Focal Length: Wide-Field Imaging

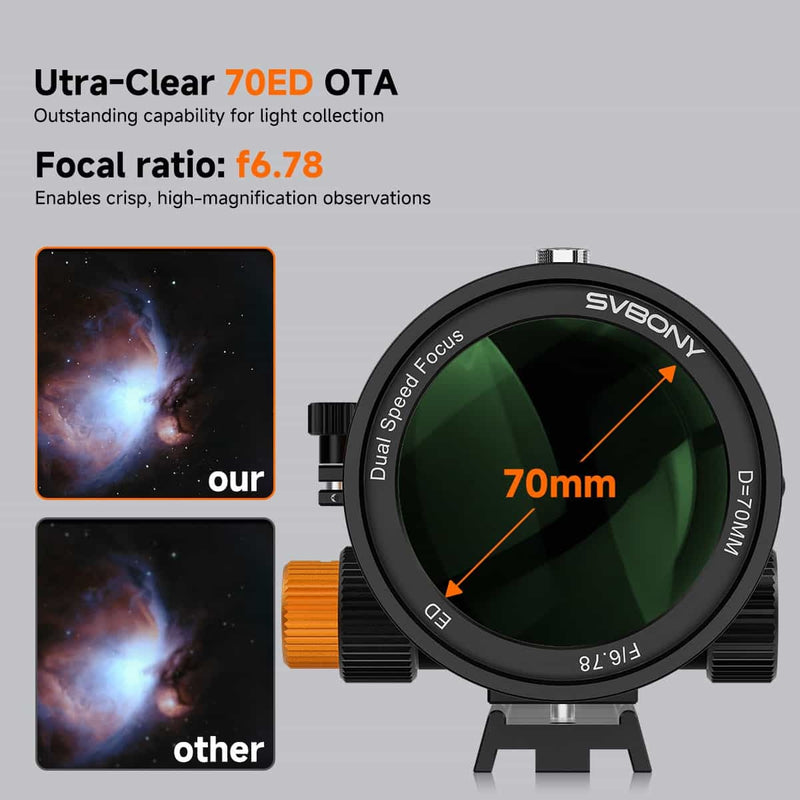

The telescope's 70mm aperture and 474mm focal length result in a native f/6.78 focal ratio. This combination suits wide-field imaging, with a field of view large enough to frame entire nebulae complexes and expansive star clusters that are too large for longer focal length instruments.

The f/6.78 ratio offers a good balance between light-gathering speed and image scale. It is a fast design for bright wide-field views of nebulae, galaxies and star clusters.

The 32mm Corrected Image Circle: Edge-to-Edge Sharpness

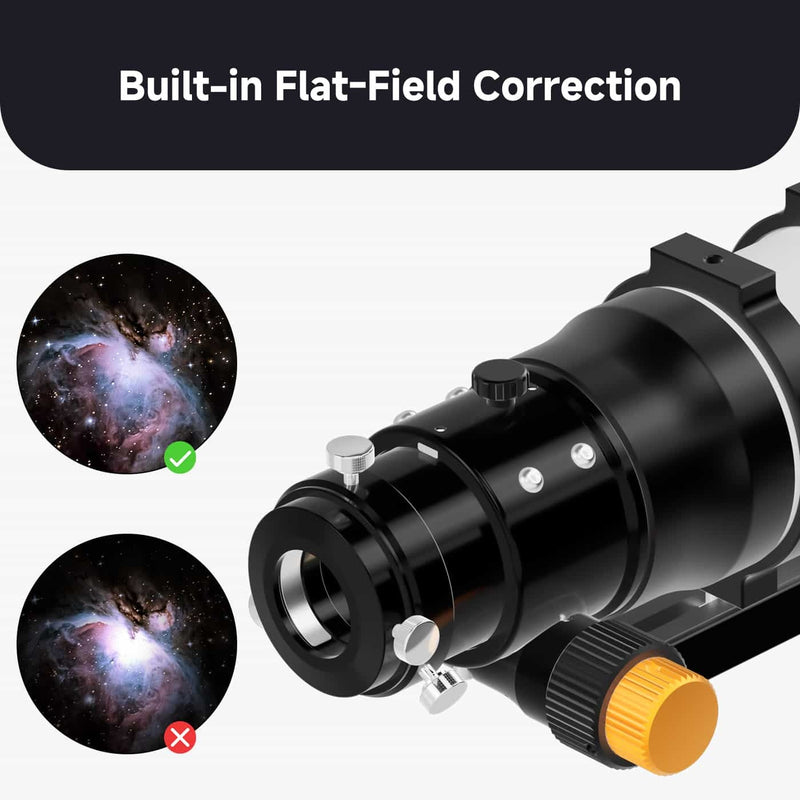

The key photographic feature of the SV503 70 is its built-in field flattener, which produces a 32mm corrected image circle. In standard refractors, stars at the edge of the field can appear elongated or out of focus due to field curvature. The built-in corrector eliminates that curvature.

The 32mm circle is rated at 100% correction, which covers an APS-C sensor (about 28mm diagonal) and any smaller sensor.

Imaging Mechanics: The 2.5-inch Rack-and-Pinion Focuser

The SV503 70 is equipped with a 2.5" rack-and-pinion (RAP) focuser with a 2" reduction adapter and an M54x0.75 female thread.

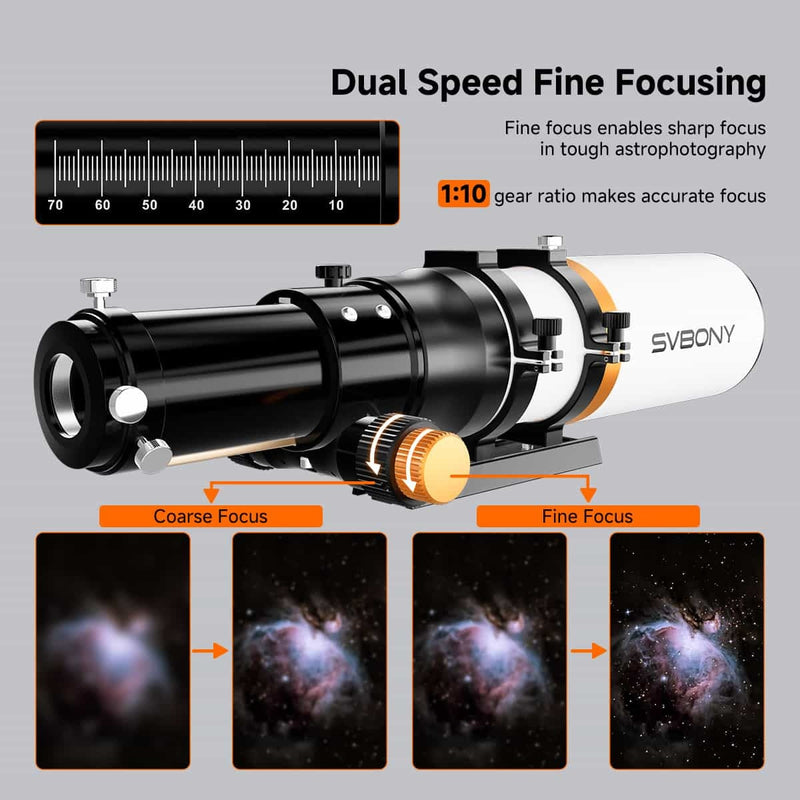

The focuser includes a 1:10 dual-speed knob for making precise focus adjustments, which is essential for achieving critical sharpness.

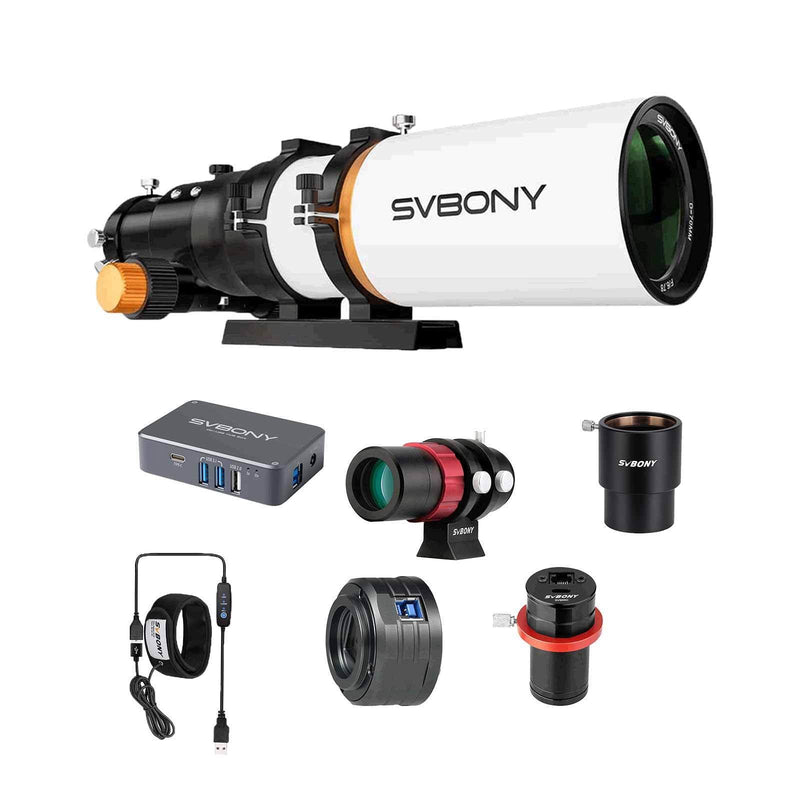

127.5mm Back Focus: Integrating Your Full Imaging Train

A critical specification for any astrograph is its available back focus, and the SV503 70 has a working distance of 127.5mm (5"). This is the distance from the 2" receptacle on the focuser to the focal plane, providing ample room to install a complete imaging train.

This working distance leaves room for accessories between the telescope and your camera, such as:

• Filter Wheels: Accommodates standard filter wheels for LRGB or narrowband imaging.
• Off-Axis Guiders (OAGs): Provides enough room for an OAG to pick off guide stars at the edge of the field.
• Threaded Connections: The focuser's M54x0.75 female thread gives a threaded attachment point for accessories instead of the 2" adapter.

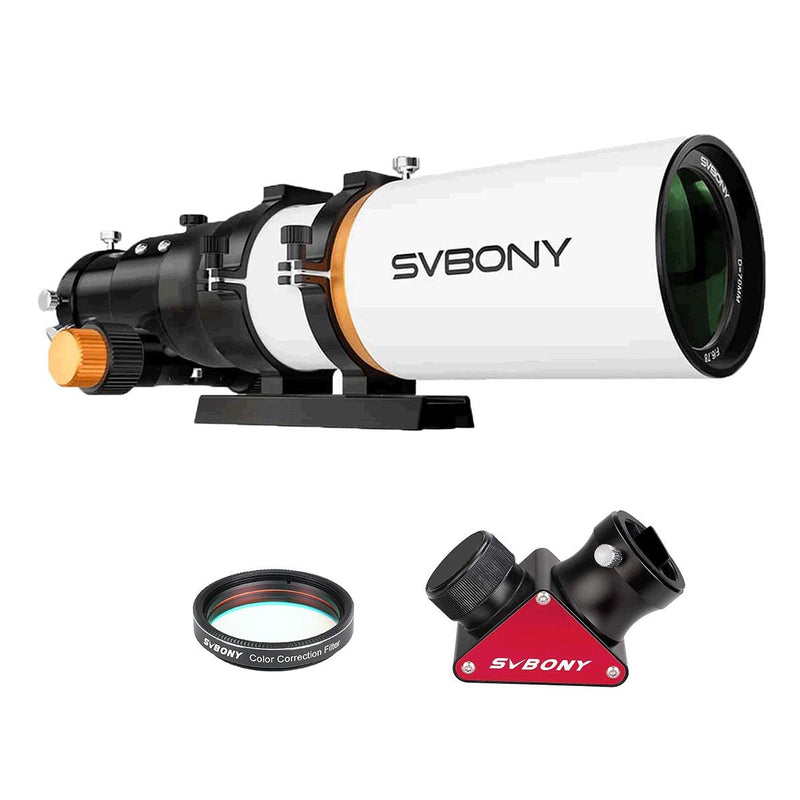

Adapting for Visual Use with 1.25" and 2" Eyepieces

The SV503 70 also suits visual observation of star fields and bright deep-sky objects. It needs a diagonal or an extension tube to reach focus with an eyepiece.

To use it visually, you must add either a 2" star diagonal or a 2" extension tube into the optical path. This moves the eyepiece far enough back to intercept the focal plane. The telescope includes a 2" to 1.25" adapter, allowing you to use both standard eyepiece sizes once a diagonal or extension is in place.

Prime-Focus Imaging: Capturing M31 with an APS-C Sensor

The 474mm focal length suits large targets. With an APS-C sensor the field is about 2.8 by 1.9 degrees, enough for most of the Andromeda Galaxy (M31) with its satellite galaxies M32 and M110.

This field also suits other large objects like the North American Nebula (NGC 7000) in Cygnus or the Heart and Soul Nebulae (IC 1805 and IC 1848) in Cassiopeia.

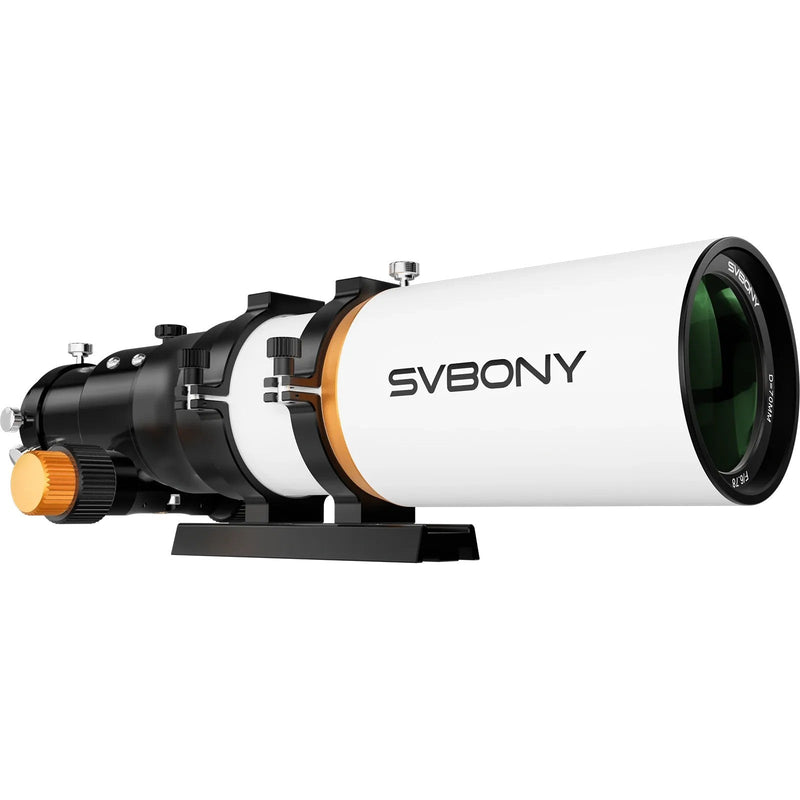

Build & Ergonomics: A 5.9 lb CNC-Machined OTA

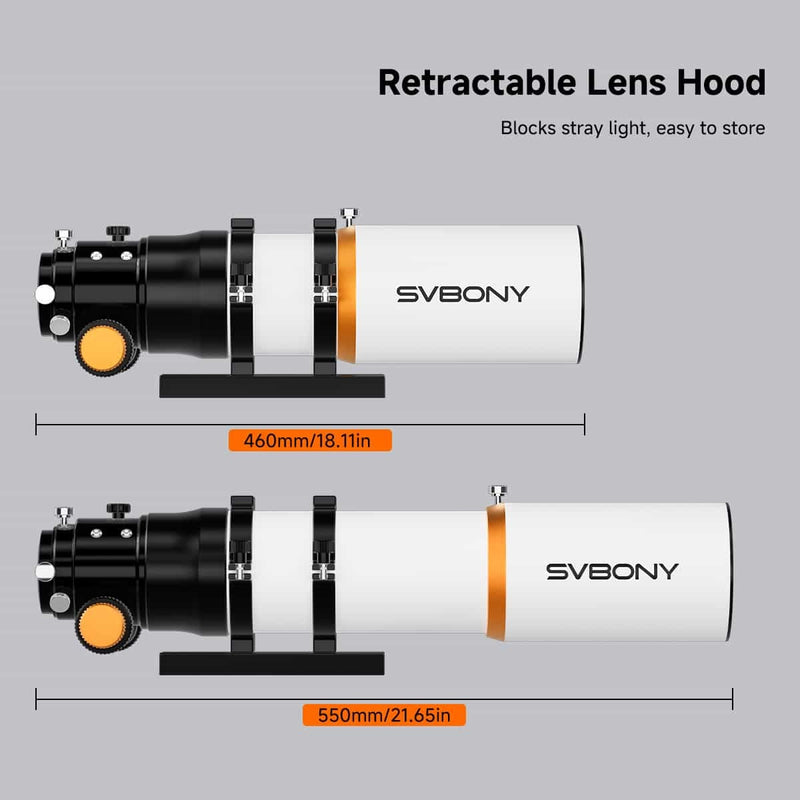

CNC machining gives a precise fit for threads and bayonets and helps prevent optical axis deviation. The tube weighs 2685g (5.9 lb) including accessories. The tube itself has a diameter of 82mm and a minimum length of 365mm with the dew shield retracted.

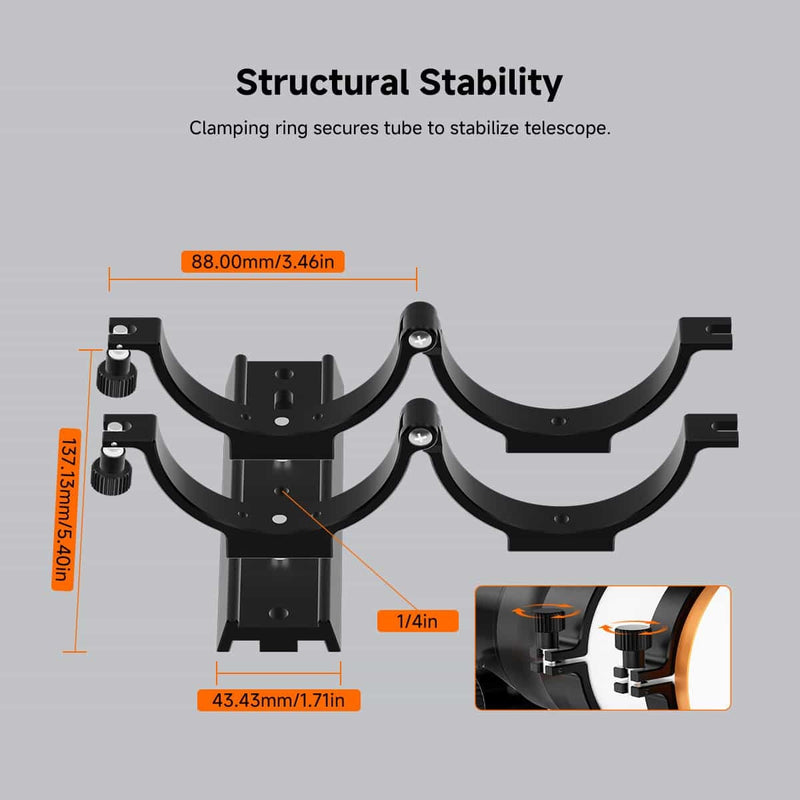

Key physical features include a retractable dew shield (93mm diameter) to block stray light and reduce dew formation on the objective lens. The OTA comes with a pair of tube rings and a dovetail plate.

SV503 70 vs. a Standard ED Doublet: The Integrated Flattener Advantage

A 70mm ED doublet needs a separate field flattener for a flat photographic field; the SV503 70 has its 2-element corrector built in.

• Fewer Connections: A shorter imaging train has fewer threaded joints to check for tilt.

Unboxing the SV503 70: What's Included and What You Need

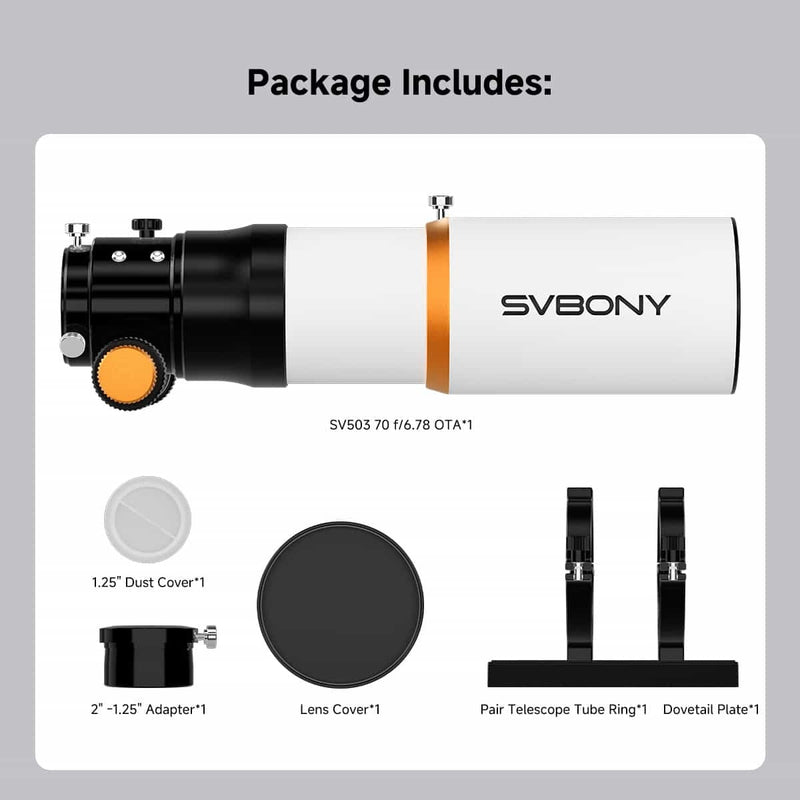

The SVBONY SV503 70mm OTA package includes the core components needed to get started with imaging. In the box, you will find the main optical tube assembly, a pair of tube rings, a dovetail plate, a 2" to 1.25" adapter, a lens cover and a 1.25" dust cover.

To make the telescope operational, you will need to supply several key items. For astrophotography, you will need a stable German equatorial mount, a power source, and your chosen astronomy camera or DSLR. For visual use, you will require a mount, a 2" star diagonal or extension tube, and at least one eyepiece.
