What is the advantage of the SVBONY SV605CC's 9.0MP square sensor?
The 3008x3008 pixel square format of the SV605CC simplifies framing for many deep-sky objects, which are often round or irregular. It eliminates the need to perfectly orient a rectangular sensor, saving time and making it easier to create mosaics. The 9.0 Megapixel resolution provides ample detail for large prints and cropping.

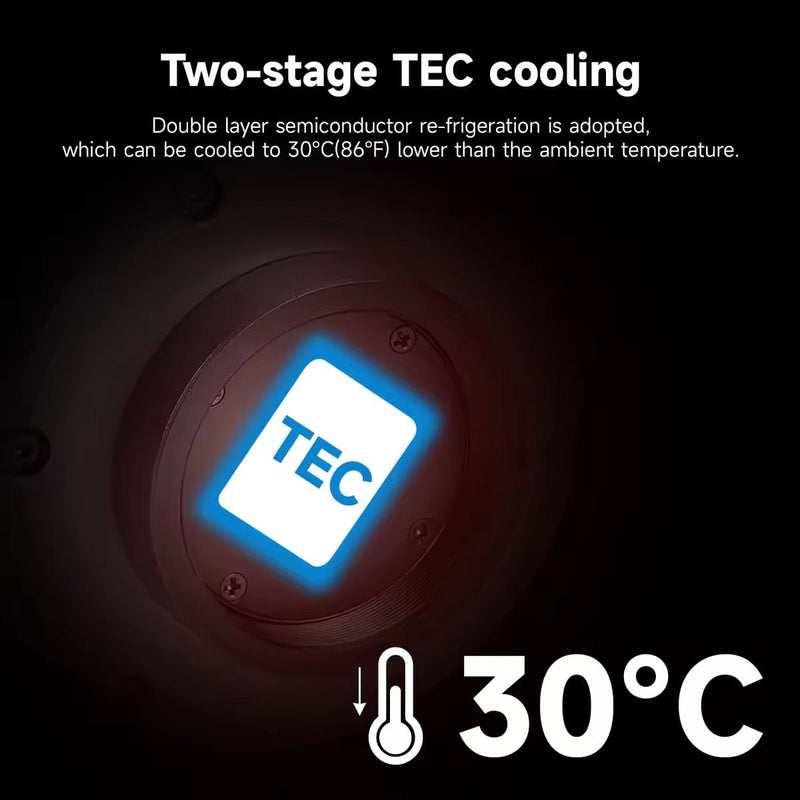

How does the TEC cooling on the SV605CC improve my deep-sky images?

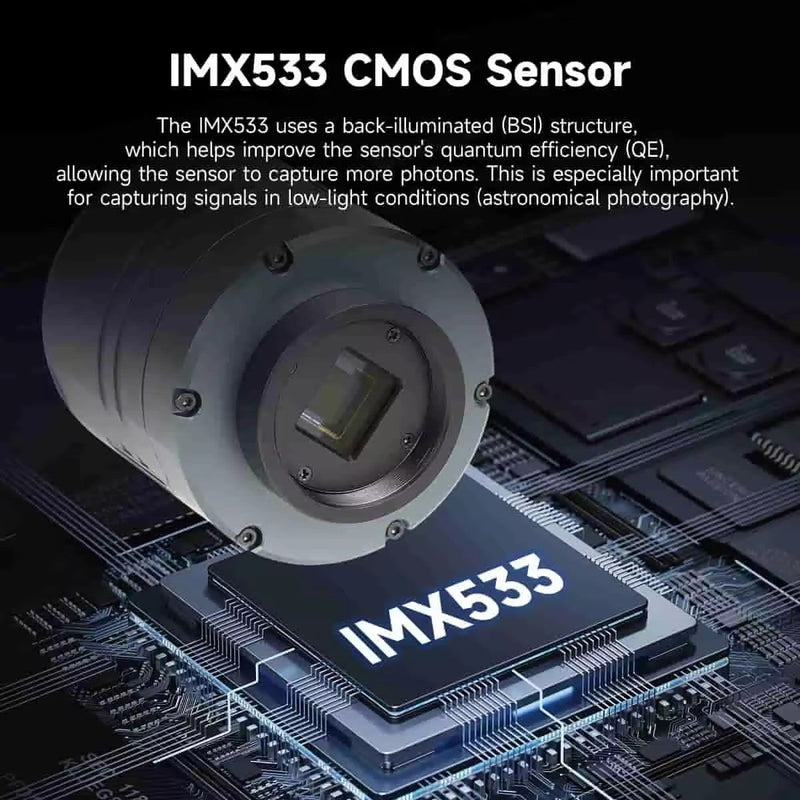

The 2-stage TEC cooling system chills the IMX533 sensor, significantly reducing thermal noise (dark current) that builds up during long exposures. This results in much cleaner, higher signal-to-noise ratio images, allowing the faint details of galaxies and nebulae to stand out against a dark background.
What do the 6.5mm and 17.5mm back focus options on the SV605CC let me do?
The dual back focus distances provide flexibility for connecting different accessories. The 17.5mm distance is standard for configurations that include a filter wheel or off-axis guider. The shorter 6.5mm distance is useful for setups with coma correctors or reducers that have very specific spacing requirements, allowing you to place the sensor at the optimal focal plane without extra adapters.
Can I use the SVBONY SV605CC to image the Orion Nebula (M42) with an 8" SCT at f/10?
Yes, the SV605CC is an excellent choice. The camera's 3.76μm pixels provide good resolution at the long focal length of an f/10 SCT. The high 91% QE will capture the faint outer nebulosity of M42 efficiently, while its 14-bit ADC and 50ke- full well depth will help preserve detail in the bright Trapezium core without saturation, especially when using a series of short exposures.
Is the SVBONY SV605CC suitable for planetary imaging of Jupiter?
While the SV605CC is primarily designed for deep-sky imaging, it can be used for planetary work. Its maximum frame rate of 20 FPS is modest compared to dedicated planetary cameras, but using the Region of Interest (ROI) feature to capture a smaller portion of the sensor will increase this rate significantly. This allows you to "freeze" atmospheric seeing and capture detailed images of Jupiter's cloud bands and Saturn's rings.
What software is compatible with the SVBONY SV605CC?
The SVBONY SV605CC has broad software compatibility. It works with most popular astrophotography acquisition software, including SharpCap, N.I.N.A., TheSkyX, and AstroDMx Capture. It is supported on multiple operating systems, including Windows, Linux, Mac OS, Raspberry Pi, and Chrome OS.
