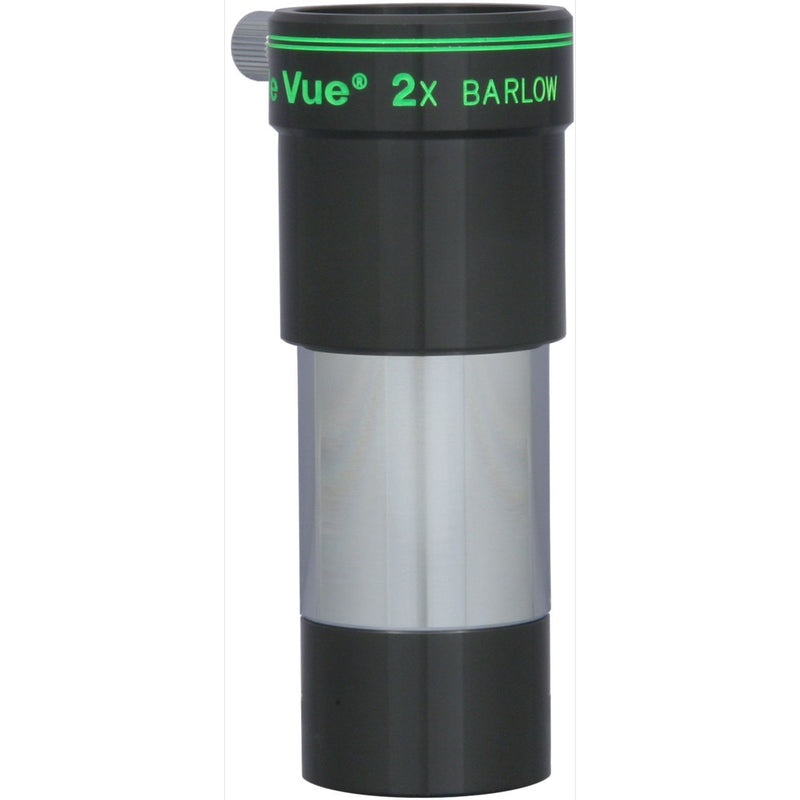

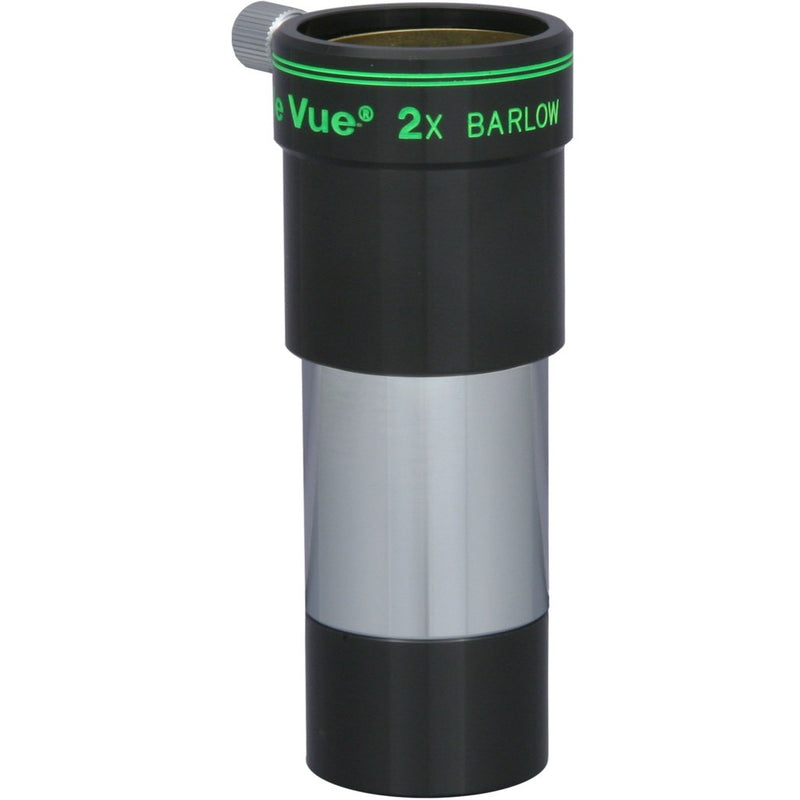

Tele Vue 2x Barlow - 1.25"

A High-Contrast 2-Element Optical System

At the heart of the Tele Vue 2x Barlow is a two-element, fully multi-coated optical design. This is not just a simple magnifier. The lens group is engineered to be a seamless extension of your eyepiece, preserving the sharpness, contrast, and color fidelity of the original view, just at twice the magnification.

The high-transmission coatings on every air-to-glass surface ensure that scattering and reflections are minimized. This results in a darker background sky and allows subtle details on bright objects, like the Cassini Division in Saturn's rings or the delicate banding on Jupiter, to resolve with clarity.

Parfocal Integration with Tele Vue Eyepieces

This Barlow is designed to integrate smoothly into your observing workflow, especially if you use Tele Vue Plössl or Panoptic eyepieces. It is nearly parfocal, meaning you will need little to no refocusing when inserting or removing the Barlow. This is a significant practical advantage in the field.

Imagine you are observing Jupiter with a 25mm Plössl. When you add the 2x Barlow to get a closer look, the planet snaps back into focus with a minimal turn of the knob. This keeps your target centered and your attention on the view, not on the mechanics of the telescope.

The Security of a Brass Compression Ring

Many simple Barlows use a basic thumbscrew that presses directly against your eyepiece barrel, causing scratches and dents over time. The Tele Vue 2x Barlow incorporates a non-marring brass compression ring. When you tighten the thumbscrew, this soft metal ring gently and uniformly tightens around the eyepiece.

This mechanism provides two key benefits. First, it protects your investment in quality eyepieces by preventing cosmetic damage. Second, it ensures a more secure and perfectly centered connection, which is critical for maintaining optical alignment at high power.

Thoughtful Mechanical Design for Field Use

Every mechanical detail is built for reliability. The main barrel features a safety undercut, a groove that catches the focuser's thumbscrew if it loosens unexpectedly. This simple feature can prevent the Barlow and your expensive eyepiece from falling to the ground on a cold, dark night.

The lens element itself is housed in a cell that can be unscrewed from the main barrel. This cell has standard 1.25" filter threads, allowing you to attach a planetary or moon filter directly to the Barlow. This versatility lets you experiment with different optical configurations, including increasing the magnification factor by adding extension tubes.

Observing Jupiter's Great Red Spot

With a 13mm Nagler eyepiece in an 8" f/10 SCT, you have 154x magnification, a good power for general planetary viewing. Now, insert the Tele Vue 2x Barlow. The magnification jumps to 308x, pushing the limits of atmospheric seeing but bringing Jupiter's disk to an impressive size.

As your eye settles, the view is not just larger, it remains sharp. The Great Red Spot, often a subtle salmon-colored oval, now shows hints of internal texture. You can more easily discern smaller, transient storms and the intricate whorls within the North and South Equatorial Belts. This is the difference a high-quality Barlow makes, transforming a good view into a detailed study.

A Foundational Tool for High-Resolution Observing

The primary trade-off with any Barlow is the addition of more glass to the light path. While Tele Vue's design minimizes light loss and reflections, a single long-focal-length eyepiece will theoretically have slightly higher throughput. However, the Tele Vue 2x Barlow provides a level of versatility and optical performance that makes it an indispensable tool for nearly any observer.

For observers who want to get the most out of a curated set of high-quality eyepieces, this Barlow is the right choice. It provides access to the high-power realm required for serious planetary and double-star work without the cost and bulk of a dedicated set of short-focal-length eyepieces.

Choosing the Right Tele Vue Magnifier

Tele Vue offers several magnification solutions. Understanding their design intent helps you choose the right one for your specific needs.

• 2x Barlow: The classic choice for visual observing. It is lightweight, simple, and optimized to deliver high-contrast, high-magnification views with any eyepiece. Its primary purpose is to double the magnification for planetary, lunar, and double star observation.
• 3x Barlow: Offers more power in the same compact form factor. This is an excellent choice for short-focal-length telescopes where achieving very high magnifications for planetary imaging or splitting tight double stars is the main goal.
• Powermate: A more complex 4-element design that acts as a pupil-correcting image amplifier. Powermates are specifically engineered to be telecentric, meaning they do not move the exit pupil or change the eye relief of the eyepiece. This makes them a superior choice for imaging and for use with long-focal-length eyepieces where a standard Barlow might introduce vignetting.
