Used to Fine-Tune the Camera's Imaging Plane
Used to Eliminate Newton Rings During H-Alpha Solar Imaging
T2 (M42*0.75 thread) on both sides.
Compatible with all ASI cameras except ASI071, ASI2600, and ASI6200.
Thickness of 2mm

Availability:

Backordered
Contact us to know when we will receive our next ones!

Free Shipping on most orders above $350*

More information

Description
Diagrams & Ressources
In the Box

ZWO T2 Tilter II - Overview

The ZWO T2 Tilter is a precision tool designed to eliminate Newton rings during H-alpha solar imaging and to fine-tune the camera’s imaging plane. With its enhanced design, multiple screw holes allow seamless compatibility with ZWO 2” EFW filter wheels and versatile astrophotography setups.

Adjustable Design

Equipped with six bolts to fine-tune the sensor plane for improved image quality.

Ideal for eliminating Newton rings in H-alpha solar imaging.

Enhanced Compatibility

Interface: T2 (M42*0.75 thread) on both sides.

Compatible with all ASI cameras except ASI071, ASI2600, and ASI6200.

Compact Build

Main Body Dimensions: Diameter 78mm, thickness 11mm without the T2-T2 adapter.

T2-T2 Adapter Dimensions: 2mm thickness for flexible connections.

Versatile Applications

Suited for cooled cameras such as ASI294, ASI1600, ASI183, ASI533 (no T2-T2 adapter required).

Non-cooled cameras like ASI178, ASI290, ASI224, ASI120 require the T2-T2 adapter for proper connection.

Connection Method - Cooled Cameras

Cooled camera: ASI294/ASI1600/ASI183/ASI533

Connection Method - Non-Cooled Cameras

Non-Cooled camera: ASI294/ASI1600/ASI183/ASI174

These cameras do not need to connect to the T2-T2 adapter

Connection Method - Non-Cooled Cameras

Non-Cooled camera: ASI178/ASI290/ASI224/ASI120

These cameras need to connect to the T2-T2 adapter first.
- T2 Tilter

  × 1
- T2-T2 Adapter

  × 1
- Hexagon Wrench

  × 1

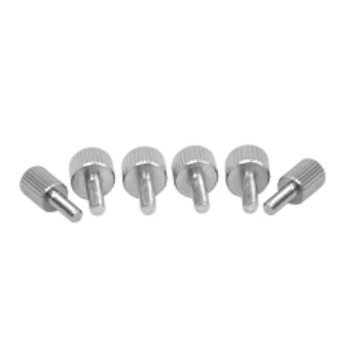

- Screws

  × 6
