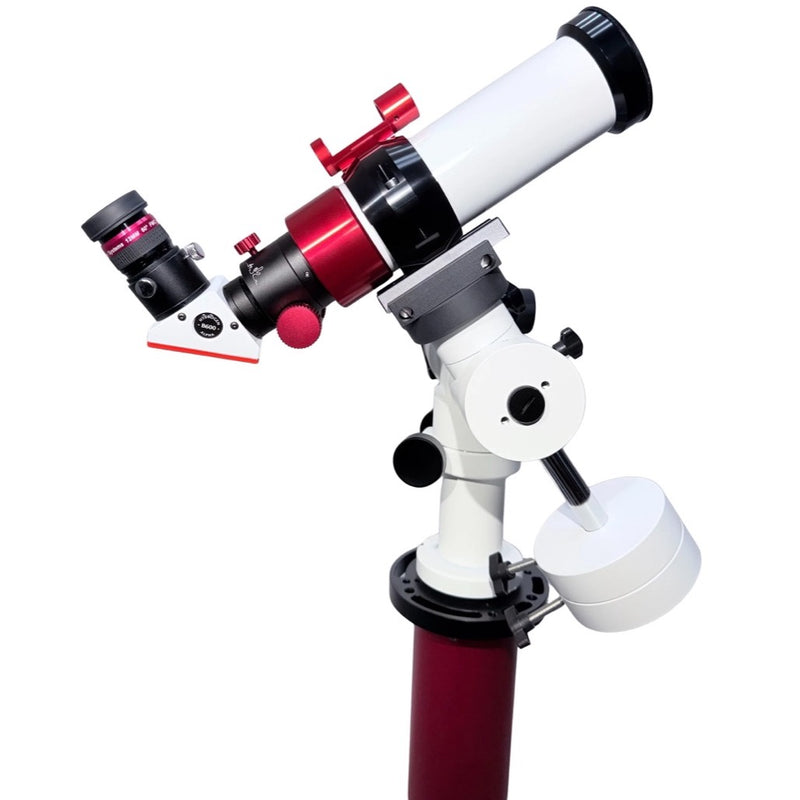

Lunt LS50THa H-Alpha Solar Telescope - Enhanced Kit

The 50mm Hydrogen-alpha Etalon

The heart of the LS50THa is its precision front-mounted etalon, a solid-cavity filter with a bandpass specification of less than 0.6 Angstroms. This narrow window on the spectrum isolates the deep red light of hydrogen-alpha, revealing the Sun not as a bright disc, but as a turbulent body of plasma. The 50mm aperture provides a 25% increase in light-gathering power over 40mm scopes, resulting in brighter images and the ability to use higher magnifications on delicate prominence structures.

Doppler True Tuning with the Lunt Pressure Tuner

Lunt's Doppler True Tuning system uses air pressure to adjust the etalon's bandpass, a method with distinct advantages over mechanical tilt-tuning. Applying pressure changes the refractive index of the air between the etalon plates, shifting the filter's central wavelength without tilting the etalon itself. This maintains a more uniform bandpass across the entire field of view, preventing off-axis hot-spotting and delivering higher-contrast views from edge to edge.

This tuning control is what allows you to see the motion of solar plasma. As a filament or prominence erupts towards or away from you, its light is Doppler-shifted. By adjusting the pressure tuner, you can follow that motion into the "wings" of the H-alpha line, transforming a static view into a dynamic one and revealing the three-dimensional structure of active regions.

The Upgraded 1:1 Rack & Pinion Focuser

The Enhanced Kit replaces the standard helical focuser with a more robust 1:1 Rack & Pinion unit. This is a critical upgrade for detailed observation. The R&P focuser provides smoother, more precise travel with zero image shift, allowing you to achieve and hold critical focus on faint, wispy prominence details that a less stable focuser can struggle with. This makes the observing experience more fluid and less frustrating, especially at higher powers.

B600 Blocking Filter for a Wider Field

This kit includes the 6mm B600 blocking filter, an important step up from the B400 found in the standard package. The larger aperture of the blocking filter provides a wider, fully illuminated field of view, reducing vignetting (dimming at the edges) when using lower-power, wide-field eyepieces. For observers who enjoy framing the entire solar disc with room to spare, or for those starting out with imaging, the B600 provides a more forgiving and complete picture.

Observing the Solar Limb

With a medium-power eyepiece, the LS50THa presents the full solar disc against a truly black background. As your eye adapts, focus on the limb. A small, bright eruption that appears as a detached spike is a classic prominence. Using the pressure tuner, you can subtly adjust the view, watching as the finest thread-like details within the prominence sharpen and seem to float above the edge of the Sun. This ability to fine-tune the contrast is what separates a simple glance from a detailed study.

Ready for Double-Stacking for Ultimate Contrast

The LS50THa is designed to be compatible with the optional LS50C front-mounted double-stack filter. Adding this second etalon is the single most effective upgrade for this telescope. It narrows the system's bandpass to less than 0.30 Angstroms, dramatically increasing contrast on the solar surface. This transforms faint filaments and plage from subtle shadings into bold, high-definition features, revealing the "carpet" of the chromosphere in a way a single-stack system cannot.

The trade-off for this increase in surface detail is a slightly dimmer image, which is why starting with a single-stack system is often recommended. However, the modular design means your investment is secure, with a clear and powerful upgrade path available when you are ready to see the highest possible level of solar detail.
