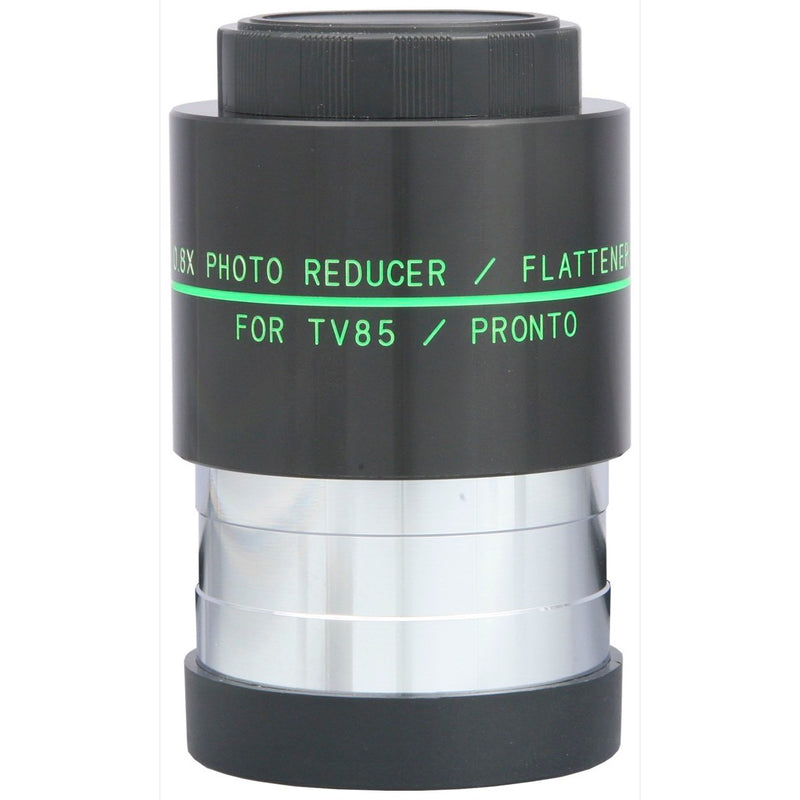

Tele Vue 0.8x Focal Reducer

The 0.8x Reduction Advantage for Deep-Sky Imaging

The core of the TRF-2008 is its 0.8x reduction lens assembly. By shortening your telescope's focal length, it also reduces the focal ratio. A 600mm f/7.5 refractor, for example, becomes a 480mm f/6 system. This "faster" optical system concentrates the same amount of light onto a smaller area of your camera sensor, reducing required exposure times by approximately 36%. This allows you to gather more data in a single night or capture fainter details without pushing your mount's tracking limits.

Achieve Pinpoint Stars Across the Entire Frame

Beyond simple reduction, the TRF-2008 is a dedicated field flattener. Refracting telescopes naturally produce a curved focal plane, which can result in slightly elongated stars at the edges of an image. This reducer incorporates corrective optics that counteract this effect, ensuring that stars remain tight, round points from the center of your sensor to the corners. This is the mechanism that delivers sharp, professional-looking astrophotographs without the need for excessive cropping.

Seamless Integration with Your Imaging Train

Engineered for a perfect fit, the TRF-2008 slides directly into any standard 2-inch focuser drawtube. The barrel is threaded to accept standard 48mm (2-inch) astronomy filters, allowing you to easily incorporate light pollution or narrowband filters into your setup without adding complex adapters. This thoughtful design simplifies your imaging train and maintains a secure, rigid connection between the telescope and your camera.

Standard T-Ring Connection for Universal Camera Compatibility

The camera side of the TRF-2008 features a male M42x0.75 T-thread, the universal standard for attaching imaging equipment. This allows you to connect virtually any DSLR or dedicated CMOS/CCD astronomy camera using a standard T-ring. This direct, threaded connection is far more secure than set-screw or compression ring systems, preventing camera sag or tilt that can ruin a long exposure.

The Critical Role of 56mm Back Focus

For the field-flattening optics to perform correctly, the distance from the reducer's rear flange to your camera's sensor must be 56mm (+/-2mm). This is a critical specification, not a guideline. Most DSLRs with a standard T-ring naturally hit this spacing, but for dedicated astronomy cameras, you may need to use T-threaded extension tubes to achieve this precise distance. Nailing this back focus is the key to unlocking the reducer's edge-to-edge sharpness.

Maximizing Light and Contrast with Multi-Coatings

Every air-to-glass surface in the TRF-2008 optical path is treated with Tele Vue's proprietary multi-coatings. These advanced coatings are designed to maximize light transmission, ensuring that the faint light from distant galaxies and nebulae reaches your sensor. They also serve to suppress internal reflections, which would otherwise reduce image contrast and introduce ghosting artifacts on bright stars.

Designed for Tele Vue Refractors

It is important to note that the TRF-2008's optical prescription is specifically calculated to correct the field curvature of Tele Vue refractors with focal lengths of 400mm to 800mm, like the TV-76 and TV-85. While it may function with other short refractors, performance is not guaranteed. This specialization is its primary trade-off; it exchanges universal compatibility for exceptional performance within its designed system. Using it with a longer focal length scope, like the NP101is or NP127is, will result in vignetting.

Imagine framing the entirety of the Andromeda Galaxy. With a TV-85 at its native 600mm, you can capture the bright core, but the faint outer arms are often cropped. With the TRF-2008, the field expands to 480mm, perfectly framing the galaxy's full, majestic spiral structure. The faster f/5.6 system also brings out the subtle details in the dust lanes with shorter sub-exposures, making the entire imaging process more productive and rewarding.

Choosing the Right Tele Vue Corrector

Tele Vue makes several correctors, and choosing the right one depends entirely on your telescope type and goals.

• TRF-2008 0.8x Reducer: This is the correct choice for astrophotography with Tele Vue refractors having focal lengths between 400mm and 800mm. It provides both focal reduction and field flattening.
• NPR-2073 0.8x Reducer: This reducer is designed specifically for the flat-field Nagler-Petzval optical design of the NP101is and NP127is telescopes. It will not properly flatten the field of a standard doublet refractor.
• Paracorr Type 2: This is not a refractor accessory. The Paracorr is a coma corrector designed exclusively for correcting the optics of fast Newtonian reflectors. It is essential for imaging with Newtonians but is not compatible with refractors.
