Tele Vue 2x Powermate - 2"

The Powermate's Telecentric Optical Advantage

A standard Barlow lens works by diverging the light cone from your telescope's objective, which moves the exit pupil and can introduce spherical aberration, especially in fast telescopes. The Tele Vue Powermate's 4-element design corrects for this. It recaptures the diverging rays and re-collimates them, keeping the exit pupil in its original location and ensuring the light rays exit parallel to the optical axis.

This telecentric correction is what sets the Powermate apart. It means your eyepieces can operate as if they are looking directly at the telescope's objective, preserving their designed performance characteristics. The result is a uniformly sharp field, free of the edge-of-field astigmatism and color fringing that can soften views through a simple Barlow.

Fidelity Through High-Transmission Coatings

Every air-to-glass surface in the 2x Powermate is fully multi-coated with Tele Vue's proprietary index-matched coatings. This meticulous process minimizes light loss from reflection and maximizes transmission across the visual spectrum. The practical benefit is a brighter, higher-contrast image than what typical Barlows can provide.

On a target like Jupiter, this translates to more subtle detail in the cloud bands and a more distinct Great Red Spot. The improved contrast makes it easier to discern low-contrast features, such as festoons and ovals, against the planet's bright disk. There is no false color or "ghosting," just the pure signal from your telescope, amplified.

A Secure, Non-Marring Mechanical Interface

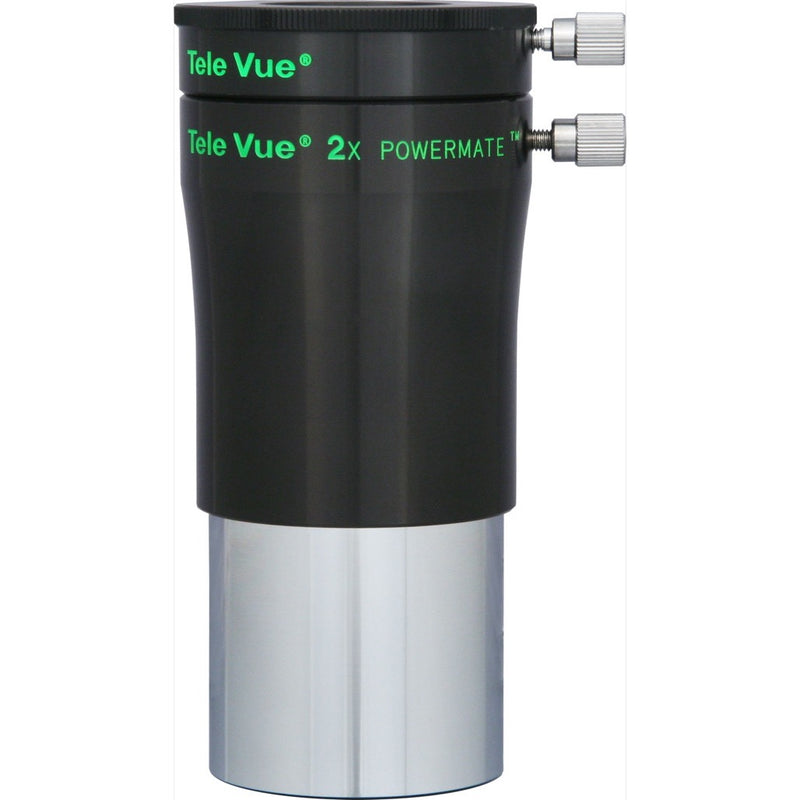

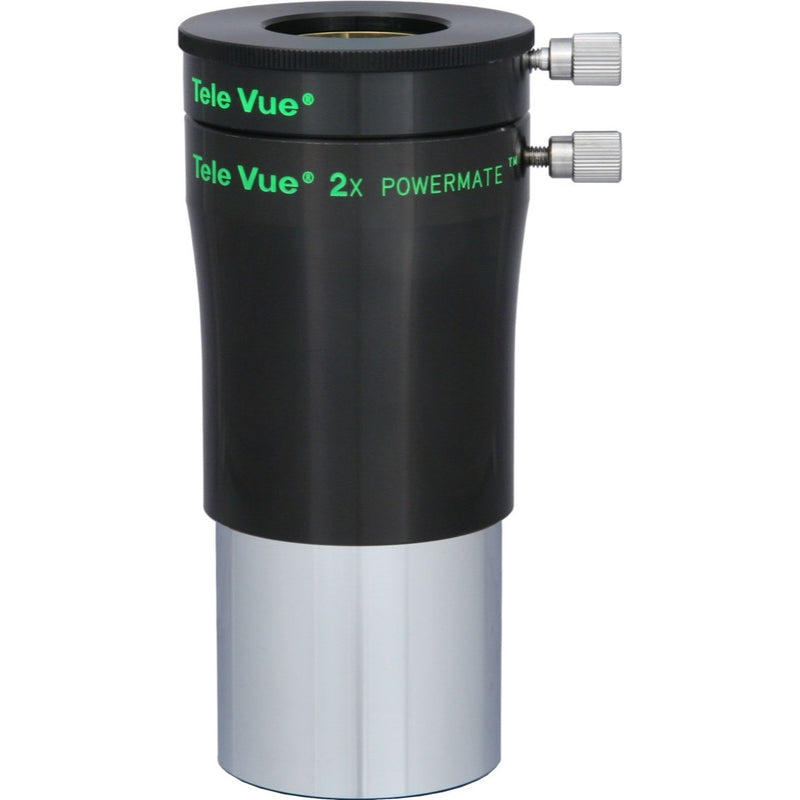

The Powermate's mechanical construction is as robust as its optical design. The 2-inch barrel is machined from solid aluminum and features a chromed sleeve that resists wear and slides smoothly into your focuser. A captive brass clamp ring, tightened by a single oversized thumbscrew, provides a secure grip on your eyepieces or camera nosepiece.

This design prevents the common problem of marred barrels caused by simple set screws. It also ensures a perfectly centered alignment of the eyepiece with the Powermate's optics, which is critical for maintaining optical performance at high magnifications. This solid, repeatable connection gives you confidence that your expensive eyepieces and cameras are held safely.

Integrated 2-Inch Filter Threads

For planetary observers, filters are essential tools for enhancing specific details. The 2x Powermate's barrel is threaded to accept standard 48mm (2-inch) filters. This allows you to attach a Moon filter, a color filter for enhancing planetary features, or even a light pollution filter directly to the Powermate.

Placing the filter before the eyepiece and Powermate optics is often preferable, as it minimizes any potential reflections that could occur between the filter and the eyepiece's field lens. It also simplifies your workflow, allowing you to leave a commonly used filter attached to the Powermate and switch eyepieces without having to re-thread the filter each time.

The View from the Cassini Division

Imagine your 10-inch SCT is aimed at Saturn on a night of steady seeing. With a 24mm wide-field eyepiece, you get a pleasing 83x view, but the rings are just a bright, flat oval. You insert the 2x Powermate, and the magnification jumps to 166x. The planet swells to fill more of the field, and the image remains perfectly sharp.

The first thing you notice is the clean, dark gap of the Cassini Division, now resolved as a distinct black line tracing the circumference of the rings. The subtle shading of the Crepe Ring inside the main rings becomes visible. With a moment of steady air, you can even pick out the faint banding on Saturn's globe itself. This is the Powermate's function: it delivers the magnification needed for fine detail without degrading the image your telescope worked so hard to focus.

Engineered for High-Resolution Imaging

The Powermate's telecentric design makes it an ideal amplifier for imaging. Because it produces parallel light rays, it is much more forgiving of camera sensor placement than a Barlow. This makes it a perfect match for planetary cameras, webcams, and DSLRs used in "eyepiece projection" mode.

With the optional Tele Vue PMT-2200 T-Ring Adapter, you can connect your camera body directly to the Powermate for a secure, threaded connection. This solid imaging train is essential for high-resolution lunar and planetary photography, eliminating the potential for flexure and ensuring your sensor remains perfectly orthogonal to the optical axis.

Powermate vs. Barlow: A Critical Distinction

Choosing the right magnification tool depends on your equipment and goals. The 2-inch 2x Powermate occupies a specific performance niche.

• vs. Tele Vue 2x BIG Barlow: The BIG Barlow is an excellent visual accessory that provides a more affordable path to 2x amplification. However, the Powermate's telecentric correction provides a distinct advantage for imagers and for visual use in very fast (f/4-f/5) telescopes, where it better controls aberrations and maintains eyepiece performance. For critical planetary work, the Powermate is the superior optical tool.
• vs. Tele Vue 4x Powermate: The 4x Powermate is a specialized tool for nights of exceptional seeing or for imagers using large pixels who need to achieve a specific image scale. The 2x Powermate is far more versatile, providing a magnification boost that is usable on average nights with a wider range of telescopes and eyepieces. The 2x is the workhorse of the Powermate family.

The primary trade-off for the Powermate's optical performance is its size, weight, and cost compared to a standard Barlow. At 1.15 lbs, it requires a robust focuser and may necessitate re-balancing your telescope. However, for those who refuse to compromise on image quality, this is a trade-off that delivers a clear, visible return at the eyepiece.
