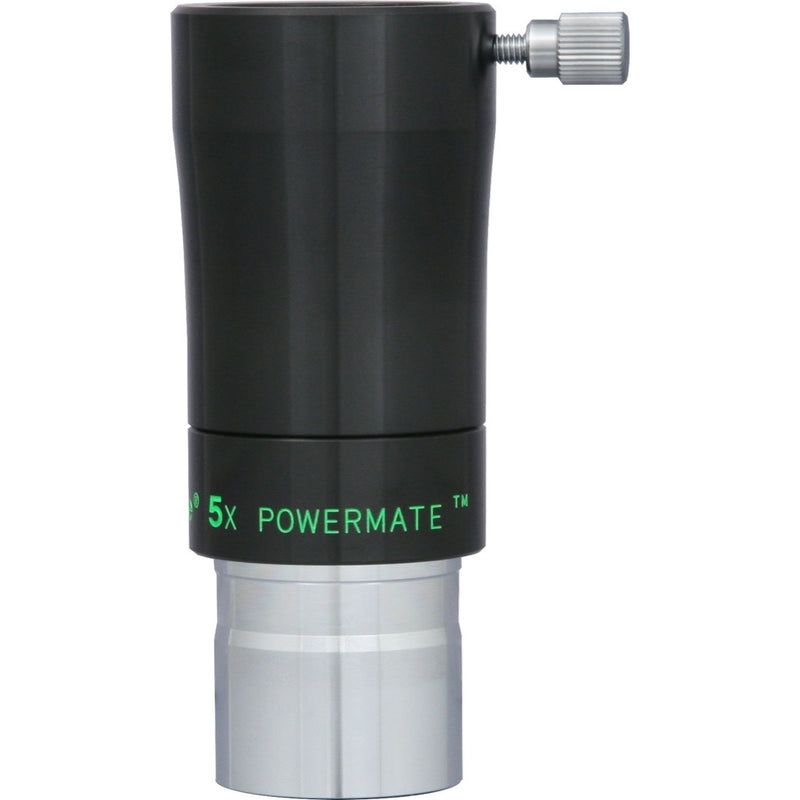

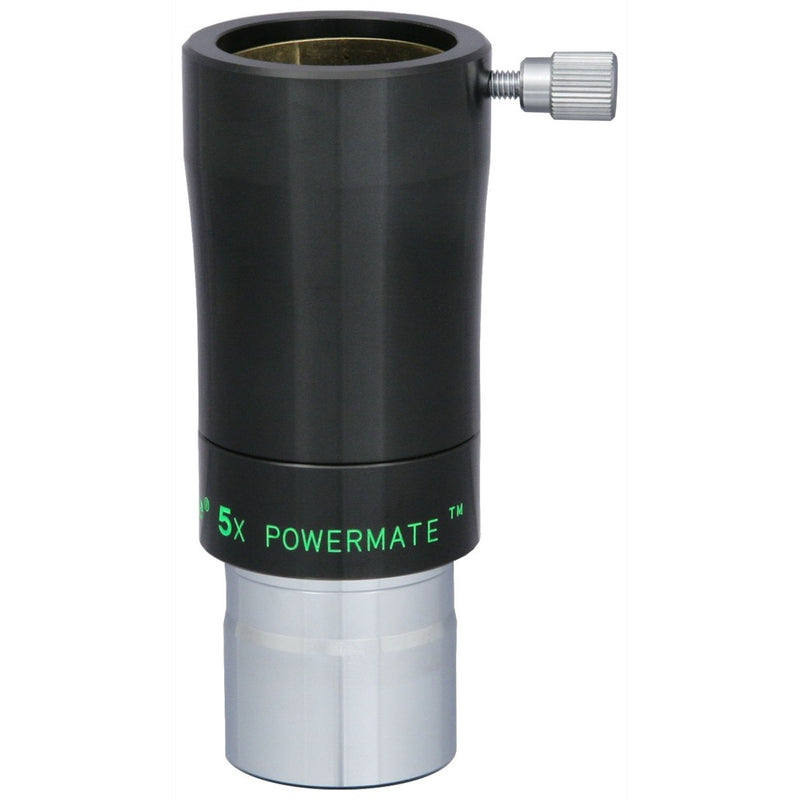

Tele Vue 5x Powermate - 1.25"

A Smarter Approach to High-Power Astronomy

A conventional Barlow lens works by diverging the light cone from the objective, which introduces optical aberrations, particularly with fast f/ratio telescopes. The Powermate's innovative 4-element telecentric design functions differently. It re-images the focal plane with parallel exiting rays, which means the eyepiece performs as if it were simply viewing a much larger, longer focal length telescope.

This telecentric correction results in a view that is sharply focused across the entire field, free of the edge-of-field astigmatism and induced field curvature that can soften the image in a simple Barlow. For you, the observer, this means pinpoint stars to the edge of the field and a consistently sharp planetary disk, even in fast Newtonians or apochromatic refractors.

Designed for Critical Planetary Imaging

The 5x Powermate is an essential tool for high-resolution planetary imaging. Its telecentric output ensures that the focal plane is flat and the image scale remains constant, regardless of the camera's sensor position. This makes it a preferred choice over Barlows for achieving the large image scales needed to resolve fine details on Jupiter, Saturn, and Mars with modern CMOS cameras.

The optical housing is designed to unthread from the barrel, allowing direct connection to a camera via a dedicated Powermate T-Ring Adapter. This rigid, threaded connection eliminates any potential for flexure or tilt that can occur with standard nosepiece setups, preserving the alignment critical for capturing sharp, high-contrast images of subtle planetary features.

The Experience at 5x Magnification

This level of magnification demands steady atmospheric seeing, but when conditions permit, the results are transformative. With a modest telescope like an 8-inch SCT and a 20mm Plössl eyepiece, the 5x Powermate yields 500x. On a good night, Jupiter's Galilean moons resolve from star-like points into distinct, tiny orbs. The Great Red Spot reveals its intricate, swirling texture, and you can trace the subtle festoons and eddies within the equatorial belts.

On Saturn, the Cassini Division becomes a sharp, black gap rather than a faint pencil line. You may even glimpse the much harder Encke Gap in the outer A ring. This is the Powermate's core function: it pushes your telescope to its absolute resolution limit, revealing details that are simply inaccessible at lower powers.

Parfocal and Mechanically Sound

Tele Vue has engineered the Powermate to be nearly parfocal. When you insert it into your diagonal, your eyepiece will require minimal refocusing. This practical feature makes it easy to switch between low-power finding views and high-power detailed views without losing your target.

The physical construction reflects Tele Vue's commitment to quality. The chromed barrel features a safety undercut to prevent it from accidentally slipping out of the focuser, while a non-marring brass clamp ring secures your eyepiece without scratching its barrel. This ensures a secure, perfectly centered optical train every time.

The Limitation: Atmospheric Seeing

The primary constraint for any high-power accessory is the Earth's atmosphere. At 5x magnification, even minor atmospheric turbulence will be amplified, causing the image to shimmer or "boil." This is not a flaw in the Powermate; it is the reality of high-resolution observing. The 5x Powermate is a special-purpose tool, best reserved for those nights of excellent seeing when the air is steady and your telescope can deliver its best performance.

Choosing the Right Powermate

Tele Vue offers a family of Powermates, and selecting the right one depends on your telescope and goals.

• vs. 2.5x Powermate: The 2.5x is a more versatile, all-purpose choice that works well on average nights. The 5x is a specialist's tool, designed to achieve the largest possible image scale for imaging or for visual use on the very best nights with long focal length telescopes.
• vs. 4x Powermate (2"): The 4x offers a similar magnification boost but in a 2-inch format, better suited for large, heavy 2-inch eyepieces. The 1.25" 5x is lighter and designed for the smaller, shorter focal length eyepieces typically used for planetary viewing.
