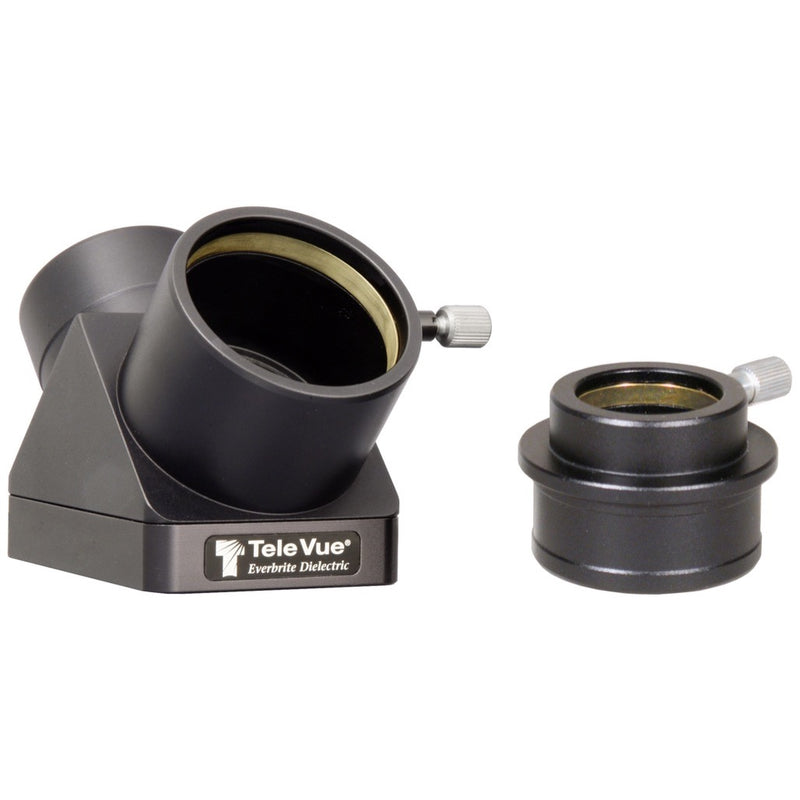

Tele Vue 90º Everbrite Diagonal - 2"

99% Reflectivity Dielectric Coatings

The heart of the Everbrite is its mirror, which features a 50-layer dielectric coating system. This advanced coating provides a certified reflectivity of 99% across the entire visual spectrum. The practical benefit is a visibly brighter image with more vibrant color saturation compared to diagonals using standard aluminum coatings, which typically reflect only 88-92% of light.

This increase in light throughput is most noticeable on faint deep-sky objects. The wispy outer arms of the Triangulum Galaxy (M33) or the faint mottling within the Orion Nebula (M42) gain a subtle but definite boost in contrast and visibility. The coatings are also exceptionally durable, resisting the gradual oxidation that degrades traditional mirror surfaces over years of use.

The Everbrite Protective Over-Coating

To ensure the dielectric layers last a lifetime, Tele Vue applies a proprietary hard over-coating. This Everbrite layer acts as a shield, protecting the delicate underlying coatings from airborne pollutants, moisture, and the physical contact of cleaning. This is the diagonal's key limitation and strength: while it can be cleaned if necessary, the Everbrite process is so robust that the mirror should almost never require it, preserving its optical quality indefinitely.

Thermally Stable Pyrex Substrate

A mirror's coating is only as good as the surface it's on. The Everbrite uses a low-expansion Pyrex substrate, which is far more resistant to temperature changes than the plate glass found in budget diagonals. As your telescope cools to ambient temperature during an observing session, the Pyrex mirror maintains its precise 1/10-wave optical figure, preventing the introduction of astigmatism or other aberrations that can soften the view.

Solid, Single-Piece CNC-Machined Housing

Many diagonals are assembled from multiple screwed-together parts, creating potential points of flexure or misalignment. The Everbrite body is machined from a single block of solid aluminum to ensure permanent, perfect alignment between the telescope's optical axis and the eyepiece. This rigid, unyielding structure means that even heavy eyepieces or binoviewers will not cause the diagonal to sag or shift, preserving the sharp collimation of your optical system.

Non-Marring Brass Clamp Ring

Protecting your eyepiece investment is critical. Instead of a simple set screw that digs into the barrel, the Everbrite uses a soft brass clamp ring. As you tighten the oversized screw, this internal ring compresses gently and evenly around the eyepiece barrel. This mechanism provides a more secure grip across a wider surface area and completely avoids the scratches and gouges that set screws inflict.

Contrast-Enhancing Baffling

To deliver the highest possible contrast, a diagonal must control stray light. The interior of the Everbrite is machined with anti-reflection threads and finished in a flat black. This baffling system traps any off-axis light that enters the diagonal, preventing it from reflecting into the eyepiece. The result is a darker background sky, which makes it easier to perceive faint details, like the delicate Cassini Division in Saturn's rings or the faint stars at the core of globular cluster M13.

Choosing the Right Tele Vue Diagonal

Tele Vue offers several high-performance diagonals, and the choice depends on your telescope and observing goals. The Everbrite is the definitive choice for refractors and Schmidt-Cassegrains where light-gathering and long-term durability are paramount.

• vs. Tele Vue 1.25" Everbrite (DPC-1250): The 2-inch Everbrite is the logical upgrade for telescopes with 2-inch focusers. It allows the use of wide-field 2-inch eyepieces and provides a more robust, stable platform. The 1.25-inch model is an excellent choice for smaller telescopes or when weight is a primary concern.
• vs. Tele Vue SCT Diagonal (ACC-0003): While the Everbrite can be used with an SCT, the dedicated SCT diagonal is designed to thread directly onto the rear cell. This creates a shorter, more rigid light path, which can be advantageous for imaging or using heavy accessory trains. However, the standard Everbrite offers more versatility for use with different telescope types.
