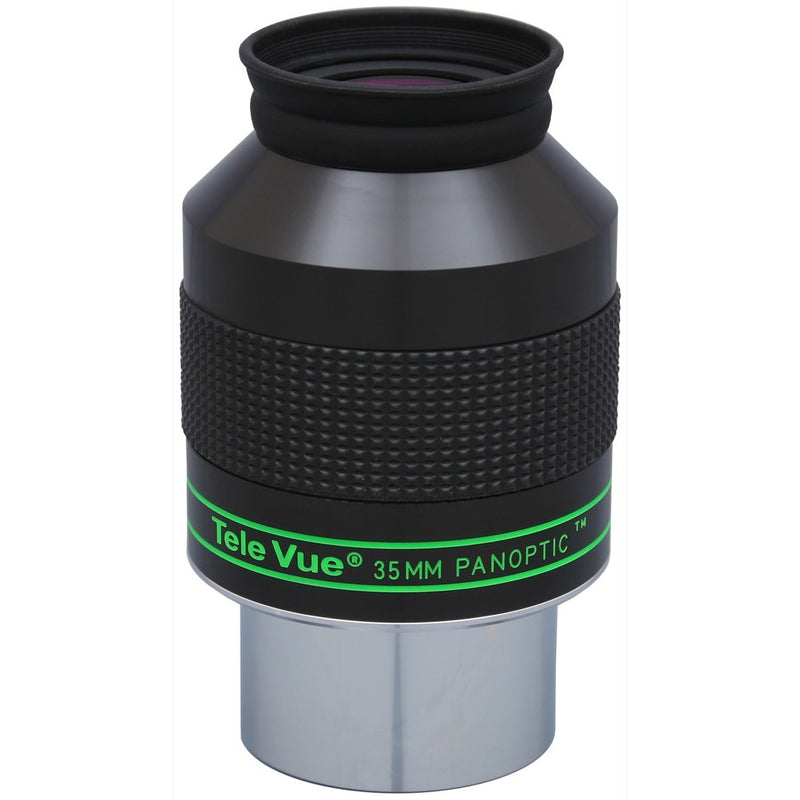

Tele Vue Panoptic 35mm 68° Eyepiece - 2"

38.7mm Field Stop and Framing Deep-Sky Targets

With a 38.7mm physical field stop, the 35mm Panoptic captures expansive celestial structures such as the Andromeda Galaxy (M31) or the Double Cluster in Perseus (NGC 869/884). In a 1200mm focal length telescope, it yields 34x magnification and a 1.9° true field, providing sufficient context to view the Hercules Cluster (M13) alongside its surrounding star field. The optical design prioritizes a flat field, minimizing the pincushion distortion often found in wide-angle eyepieces of this focal length.

• Astigmatism Control: The internal lens geometry is optimized to maintain point-like star images across the 68° field in f/4.5 to f/6 systems.
• 24mm Eye Relief: This generous distance allows the full apparent field to be visible for those wearing eyeglasses, reducing the need to remove corrective lenses during observation.

Handling and Ergonomics

The 35mm Panoptic features a scalloped rubber grip ring that ensures secure handling, especially when wearing gloves in cold environments. It includes an adjustable, fold-down rubber eyeguard that helps block peripheral light and provides a stable reference point for eye placement. The 1.6-lb housing is robust yet lighter than ultra-wide alternatives, making it easier to balance on a variety of telescope mounts without frequent adjustment of counterweights.

Operational Comparison and System Choice

Selecting the 35mm Panoptic involves weighing exit pupil size and magnification against the mechanical limits of the 2-inch format.

• vs. Tele Vue 41mm Panoptic: The 35mm provides 17% higher magnification, which results in a darker sky background and a 7.7mm exit pupil in f/4.5 systems—closer to the human eye's maximum dilation than the 9.1mm of the 41mm.
• vs. Tele Vue 27mm Panoptic: While the 27mm is more compact, the 35mm offers a 27% larger field stop, capturing significantly more true field for large-scale nebula scanning.
