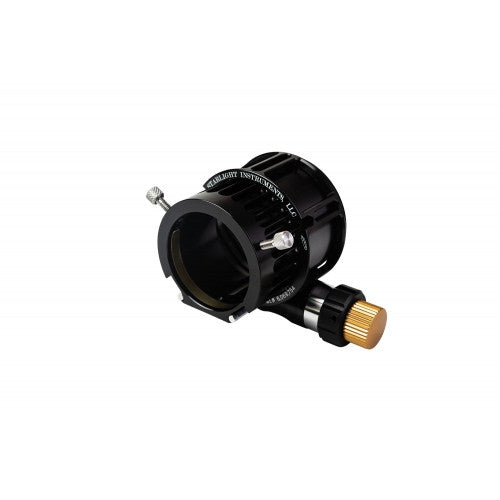

Starlight Instruments Lightweight Feather Touch Rotatable 2.0" Crayford Focuser

Starlight Instruments Lightweight Feather Touch Rotatable 2.0" Crayford Focuser

by Starlight Instruments
SKU SI-FTF2015BCR-LW-BL
$630.00 - $665.00
$630.00
$630.00 - $665.00
$630.00
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered
Availability:
Backordered

Free Shipping in USA

More information

We have notched out the focuser housing and custom machined the draw tube to reduce weight compared to the standard 2.0" focuser

Specifications

For the 1.5" Draw Tube Travel Version (FTF2015BCR-LW)

Lifting Capacity 8-10 pounds
Draw Tube Travel 1.5"/38.1mm
Reduction Ratio 10:1
Draw Tube Drive Mechanism Crayford
Weight of focuser .848 pounds
Racked In from Mounting Face 1.405"/35.687mm
Racked Out from Mounting Face 3.005"/76.327mm

For the 2.0" Draw Tube Travel Version (FTF2020BCR-LW)

Lifting Capacity 8-10 pounds
Draw Tube Travel 2.0"/50.8mm
Reduction Ratio 10:1
Draw Tube Drive Mechanism Crayford
Weight of focuser .894 pounds
Racked In from Mounting Face 1.405"/35.687mm
Racked Out from Mounting Face 3.505"/89.027mm

For the 2.5" Draw Tube Travel Version (FTF2025BCR-LW)

Lifting Capacity 8-10 pounds
Draw Tube Travel 2.5"/63.5mm
Reduction Ratio 10:1
Draw Tube Drive Mechanism Crayford
Weight of focuser .948 pounds
Racked In from Mounting Face 1.405"/35.687mm
Racked Out from Mounting Face 4.005"/101.727mm
