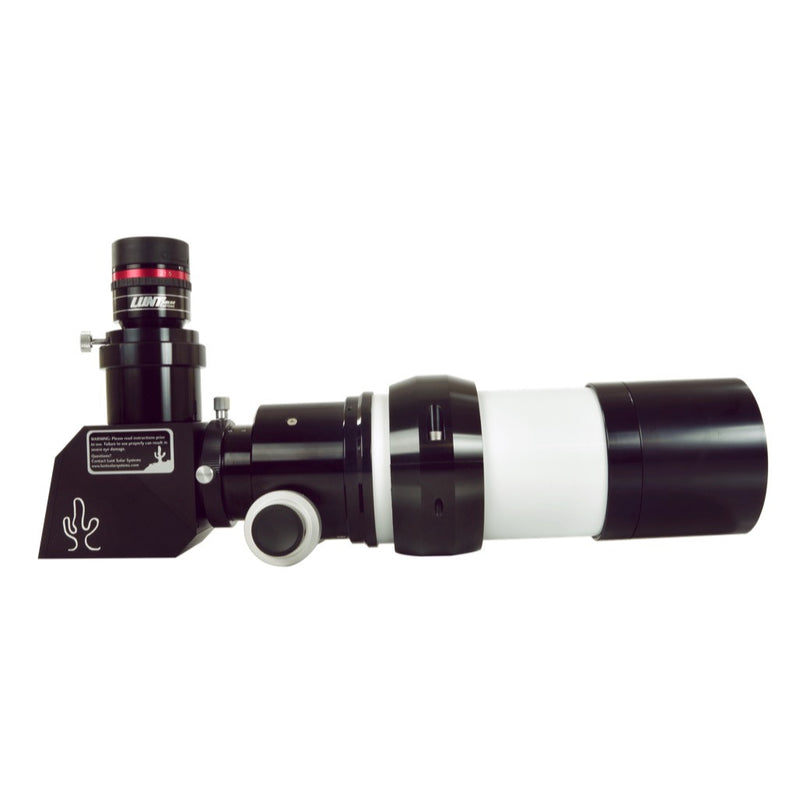

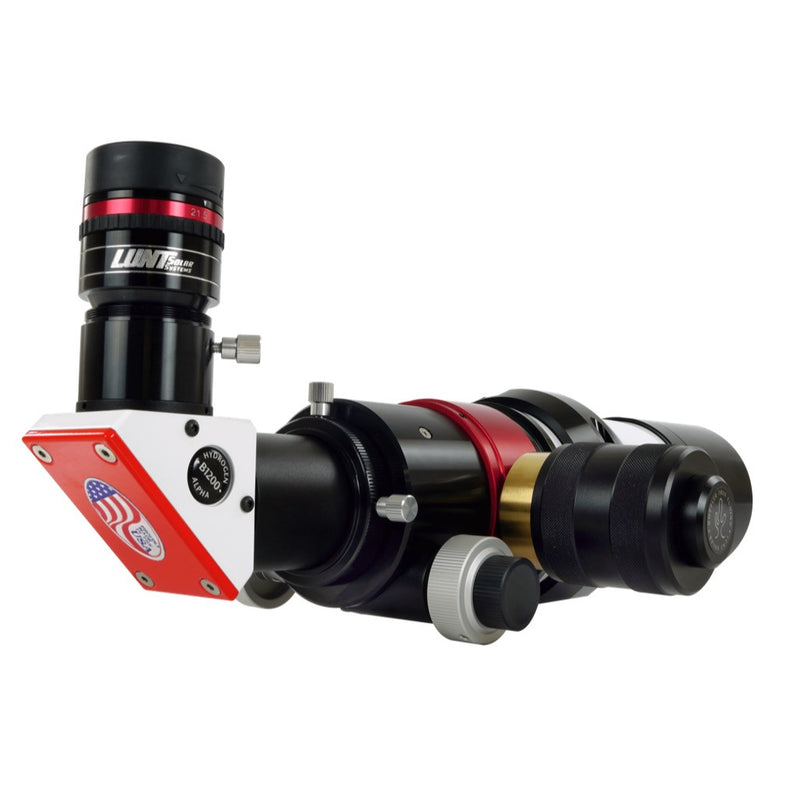

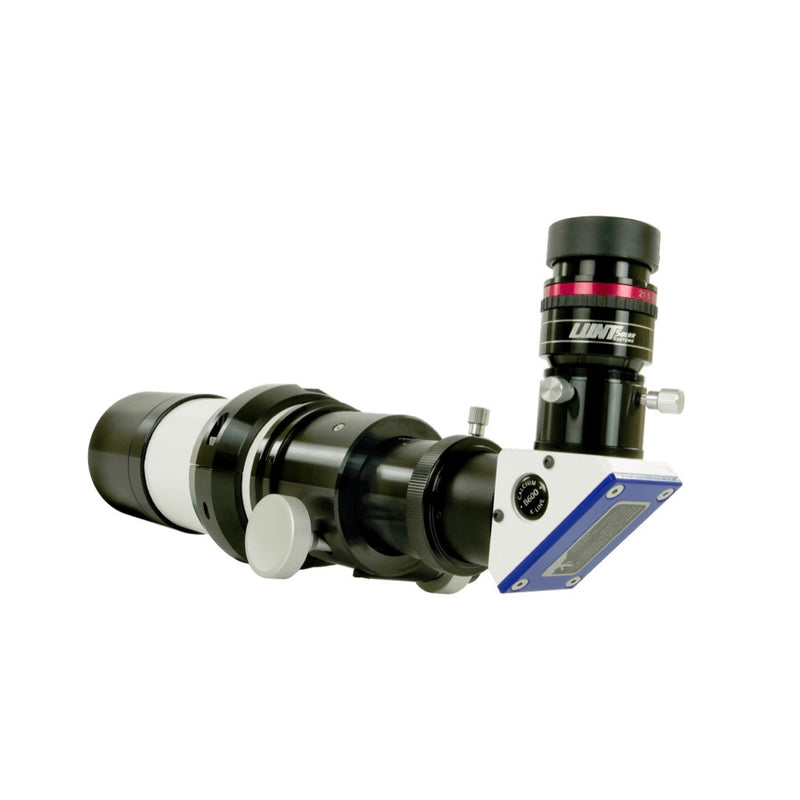

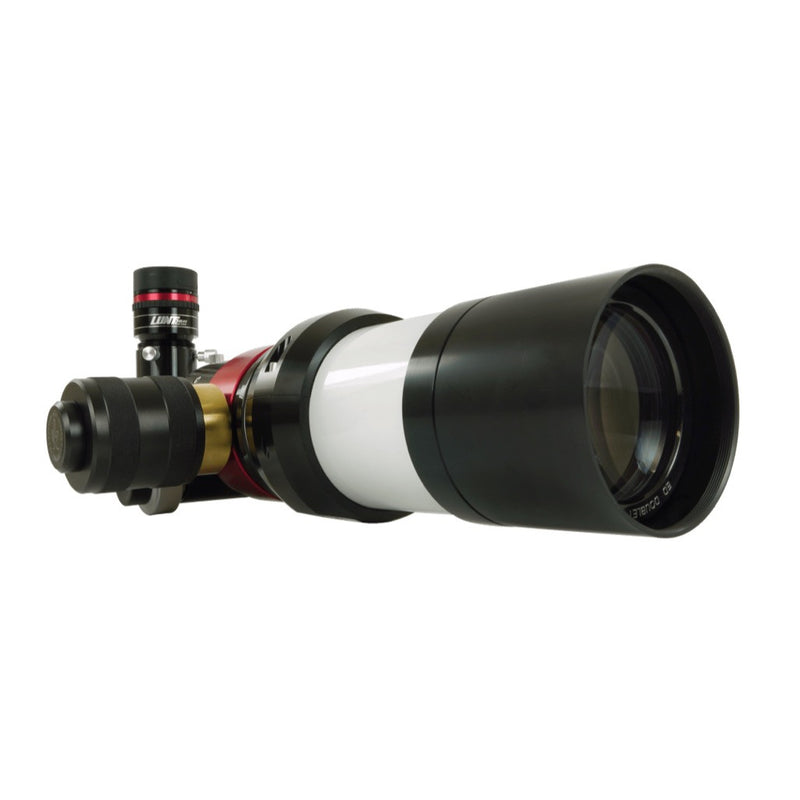

Lunt LS60MT Modular Solar Telescope - Pressure Tuned

Precision Solar Tuning: Pressure Tuned Etalon

At the heart of the LS60MT's solar performance is its pressure-tuned internal H-alpha etalon, which provides a bandpass of less than 0.7 Angstroms. This narrow bandpass isolates the specific wavelength of hydrogen-alpha light, allowing you to observe the Sun's chromosphere, where fascinating features like prominences and filaments reside.

• Pressure Tuning: Unlike tilt-tuned systems, pressure tuning adjusts the etalon's optical spacing by changing air pressure within a sealed chamber. This mechanism ensures a uniform bandpass across the entire field of view, preventing the "sweet spot" effect and providing a consistent high-contrast image whether you are observing or imaging.
• Fine Detail Resolution: The sub-0.7 Angstrom bandpass is narrow enough to resolve intricate details in solar filaments, the granulation of the photosphere, and the delicate structure of prominences lifting off the limb. As you slowly adjust the pressure tuner, you can shift the bandpass slightly to bring different features into optimal view, for instance, enhancing a faint filament against the solar disk or sharpening the edge of a hedgerow prominence.

Adaptable Observing: The Modular Telescope Design

The "MT" in LS60MT signifies its modular design, allowing the dedicated H-alpha front assembly to be quickly removed. This transforms the instrument into a standard 60mm f/10 achromatic refractor, ready for alternative observing modes. This flexibility significantly extends the telescope's utility beyond specialized solar work.

• Daytime White Light Solar: With the H-alpha module removed and a suitable white light solar filter (sold separately) attached to the objective, the LS60MT can provide safe, high-resolution views of sunspots and solar granulation. This allows for observation of the Sun's photosphere, complementing the chromospheric views delivered by the H-alpha system.
• Night-Time Astronomical Views: Once the H-alpha module is detached, the LS60MT functions as a 60mm f/10 refractor for night-time astronomy. With a standard star diagonal and eyepieces (sold separately), it offers crisp, high-contrast views of the Moon, planets, and brighter deep-sky objects. The 60mm aperture provides clear resolution for lunar craters and Jovian moons, serving as an excellent grab-and-go night scope.

Optimized for Viewing: B600 Blocking Filter

The Lunt LS60MT includes a B600 blocking filter, which is an essential component for safe H-alpha solar viewing. The "B" indicates its position behind the etalon, and the "600" denotes a 6mm clear aperture. This size offers a generous illuminated field for both visual observing and general solar imaging.

• Enhanced Field of View: A 6mm blocking filter provides a wider fully illuminated field compared to smaller blocking filters. This is particularly beneficial for visual observers who want to take in larger solar features without constantly repositioning the telescope. For imagers, it allows for capturing more of the solar disk or larger prominences in a single frame.
• Safe Viewing: The blocking filter works in conjunction with the primary H-alpha etalon to ensure that only the narrow H-alpha wavelength reaches your eye or camera, blocking all other harmful wavelengths of light. This critical safety component is housed in a 1.25-inch diagonal, ready to accept standard eyepieces.

The Observational Experience: Seeing the Sun in H-Alpha

Pointing the LS60MT at the Sun and slowly adjusting the pressure tuner brings the chromosphere to life. You might first notice the sharp, bright edge of the solar limb, and as you tune, delicate prominences begin to materialize, extending like intricate structures into the blackness beyond. A slight turn of the pressure knob will shift the view to reveal the intricate, dark threads of filaments snaking across the solar disk, or the bright, mottled textures of plages around active regions.

Under good seeing conditions, the 60mm aperture and <0.7 Angstrom bandpass allow you to resolve the fine structure within these features, distinguishing individual strands in a prominence or the granular texture surrounding a sunspot. The uniform field of view delivered by pressure tuning ensures that these details are sharp and visible across the entire field, making for a truly engaging and dynamic observing session.

Choosing Your Lunt Solar Telescope: LS60MT vs. Siblings

Lunt offers a range of dedicated solar telescopes, and understanding the differences helps select the right instrument for your needs. The LS60MT balances aperture, portability, and versatility within the Lunt line.

• vs. Lunt LS50MT: The LS50MT is a more compact and lighter instrument with a 50mm aperture, making it the ultimate grab-and-go option. While the LS50MT is highly portable and more affordable, the LS60MT's larger 60mm aperture gathers more light and offers increased resolution potential, especially for finer details on the solar disk or subtle prominence structures, under conditions that allow it. Both are excellent for consistent views under average seeing.
• vs. Lunt LS80MT: The LS80MT provides a significantly larger 80mm aperture, which, under truly excellent seeing conditions, can resolve finer details and present brighter images of faint features. However, the LS80MT is heavier, requires a more substantial mount, and comes at a higher price point. For observers prioritizing maximum resolution and willing to invest in a larger setup, the LS60MT offers a more balanced approach for portability and consistent performance in variable seeing conditions, where a 60mm aperture often performs near its practical limit.
• Single Stack vs. Double Stack: The LS60MT is a single-stacked system (<0.7 Angstrom bandpass). For enhanced contrast, particularly on surface features like filaments and granulation, an optional double-stacking module (DSII/LS60C or DS50/LS60C) can be added. This reduces the bandpass to <0.5 Angstroms, darkening the disk and making subtle features more prominent. The single-stack LS60MT offers a brighter view of prominences, while double-stacking prioritizes disk detail.
