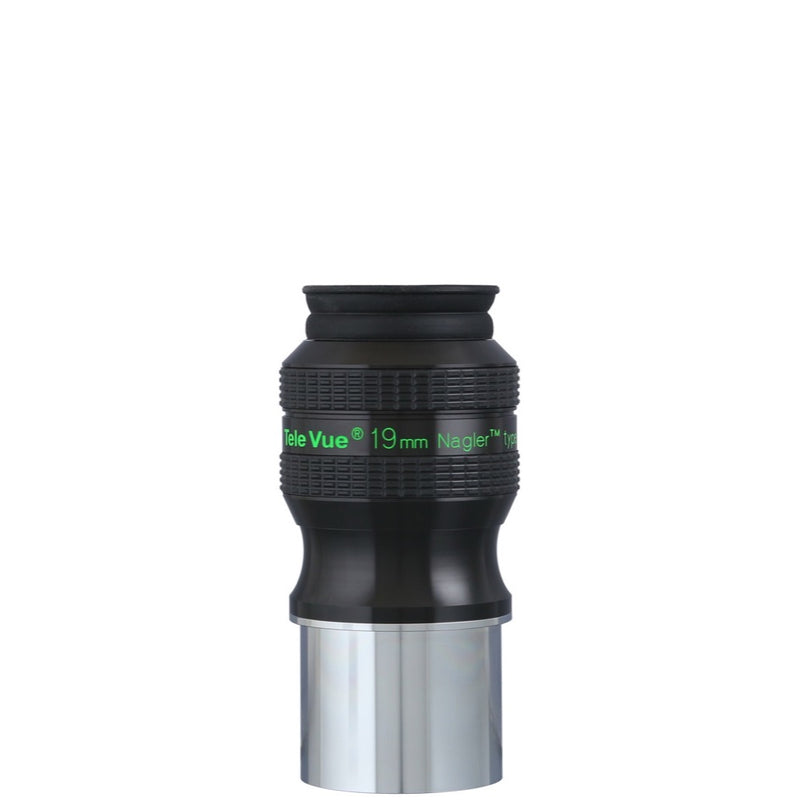

Tele Vue Nagler T7 19mm 82° Eyepiece - 1.25"

The 82° Nagler Apparent Field

The defining feature of any Nagler is the 82° apparent field of view. This is the angle of the window you look through, and at 82°, it is wide enough to engage your peripheral vision. The practical effect is that the boundary of the eyepiece seems to vanish, creating the celebrated "spacewalk" sensation of being suspended in front of the target.

A Corrected View from Center to Edge

Achieving a sharp, flat field across such a wide expanse requires a sophisticated optical design. The Nagler T7 19mm uses a seven-element lens configuration to control aberrations like field curvature and astigmatism. This means that stars resolve into tight points not just in the center, but far out toward the edge of the view, maintaining the integrity of star fields and clusters.

Maximizing Contrast and Light Throughput

Every air-to-glass surface in the Nagler T7 19mm is fully multi-coated to minimize reflections and maximize light transmission. Tele Vue complements this with blackened lens edges, a critical step that absorbs stray light traveling sideways through the glass. The combination of these two sub-systems produces a tangibly darker background sky, making faint nebulosity and the subtle dust lanes in galaxies stand out more clearly.

Optimized for Fast Reflectors with Paracorr

Owners of fast Newtonian and Dobsonian telescopes (typically f/5 or faster) will find this eyepiece is an ideal partner for the Tele Vue Paracorr coma corrector. The Nagler optical design is specifically calculated to work with the Paracorr, which corrects the comet-shaped stars inherent at the edge of field in parabolic mirrors. The result is a field of sharp, round stars across the entire 82° view, unlocking the full potential of your instrument.

Tuning the Eyepiece to Your Eye

Comfort and performance are enhanced by a soft, adjustable rubber eyeguard that can be raised or lowered to provide the ideal eye position and block distracting ambient light. For observers with astigmatism, the top of the eyepiece is threaded to accept the Tele Vue DIOPTRX corrector. This allows you to observe without your glasses, seeing the sharpest possible stars your telescope can deliver.

Framing the North America Nebula

In a telescope with a focal length around 1200mm, the 19mm Nagler provides about 63x magnification and a true field of over 1.3 degrees. This is the perfect scale to frame the sprawling North America Nebula (NGC 7000). The eyepiece is wide enough to capture the prominent "Cygnus Wall" and the dark "Gulf of Mexico" dust lane in a single, high-contrast view, turning a familiar object into an immersive landscape.

An Honest Limitation: Eye Relief

The primary trade-off for the Nagler's compact form and incredibly wide, corrected field is its eye relief, which is specified at 12mm. While perfectly comfortable for many observers, those who must wear eyeglasses with thick lenses to correct for significant astigmatism may find it difficult to see the entire 82° field at once. This is a deliberate design choice that prioritizes the immersive view and sharpness over long eye relief.

Choosing Your 19mm Eyepiece: A Tele Vue Comparison

Tele Vue offers several eyepieces around this focal length, each representing a different set of design priorities. Understanding the trade-offs helps you select the right one for your observing style.

• vs. Tele Vue Panoptic 19mm: The 19mm Panoptic offers a still-generous 68° apparent field but with a longer 13mm of eye relief, a lighter build, and a lower price. It's the right choice if you prioritize comfort for eyeglass use or want a more compact wide-field eyepiece, but it does not provide the same "spacewalk" immersion as the Nagler.
• vs. Tele Vue Ethos 21mm: The 21mm Ethos represents the next step up, with a colossal 100° apparent field. It shows a significantly larger true field of view than the Nagler, but it is a much larger, heavier, and more expensive 2-inch eyepiece. The 19mm Nagler offers a similar immersive experience in a much more compact and affordable 1.25-inch format.
