ZWO Seestar S30 Desktop
ZWO ASI676MM Mono Camera

ZWO ASI676MM Mono Camera

by ZWO
SKU ZWO-ASI676MM
CA$559.00 - CA$559.00
CA$559.00
CA$559.00 - CA$559.00
CA$559.00
Price Match Policy!
  • Square (7.1x7.1mm) IMX676 Sensor
  • Pixel Size of 2 microns
  • QE of 83%
  • USB 3.0
  • 31.2 FPS
Availability:
Backordered
Contact us to know when we will receive our next ones!

Free Shipping in Canada*

More information

  • Description
  • Specifications
  • Diagrams & Ressources
  • In the Box

  • ZWO ASI676MM Camera - Overview

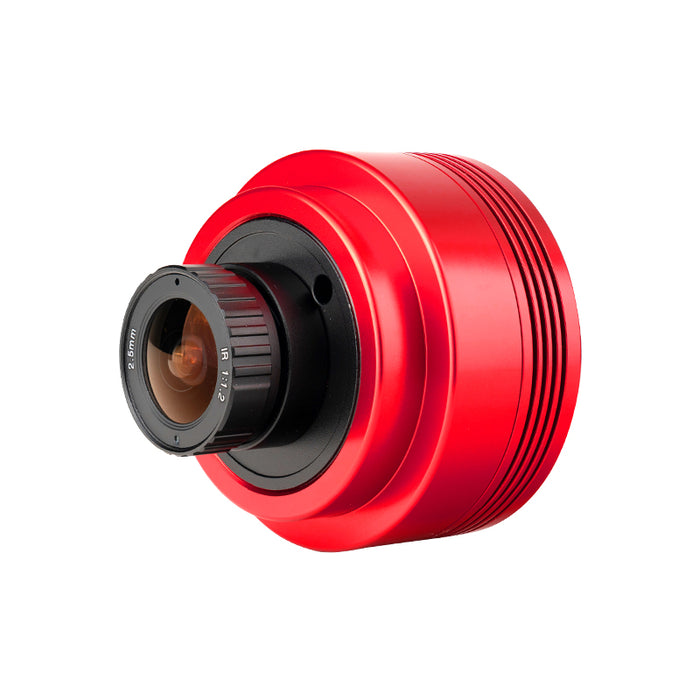

    Introducing the ASI676MM, the camera featuring a unique square 1/1.6-inch image sensor and a super high resolution of 12MP! It is perfectly suited for meteor recording and full sky surveillance. The square format facilitates easier composition, making mosaic stitch simpler and more efficient, and the high resolution brings you clear details of the Sun and our Moon. With this camera, you may start your marvelous journey to explore the boundless night sky.

    CMOS Sensor

    IMX676

    Sensor Size

    1/1.6" (7.1x7.1mm)

    Full well

    10.55Ke

    QE

    83%

    ADC

    12bit

    USB

    3.0

    Pixel Size

    2um

    FPS

    31.2

    ASI676MC - Sensor Square Format

    Why Square Format?

    One of the biggest benefits of ASI676MM's square format is it makes the whole mosaic construction process much easier by eliminating the need to consider the difference between the long and wide sides of the format during mosaic stitching. Not only that, the square format also makes the ASI676MC more compatible with various types of lenses such as fisheye lenses and wide-angle lenses. Thus, ASI676MM is more suitable for tasks such as meteor recording and full sky surveillance.

    STARVIS 2 - The Sensor Technology Surpassing Human Eyes' Sensitivity

    STARVIS is a sensor technology developed by Sony that surpasses the sensitivity of the human eye. STARVIS 2 is an advancement of STARVIS technology, supporting an even higher dynamic range. With this technology, ASI676MM exhibits lower readout noise and dark current, along with significantly enhanced sensitivity in the near-infrared spectrum.

    ASI676MC - STARVIS

    No Amp Glow

    ASI676MM does not have any amp glow, no matter how long the exposure and how high the gain value you set.

    ASI676MC - 256MB DDR3

    256MB DDR3

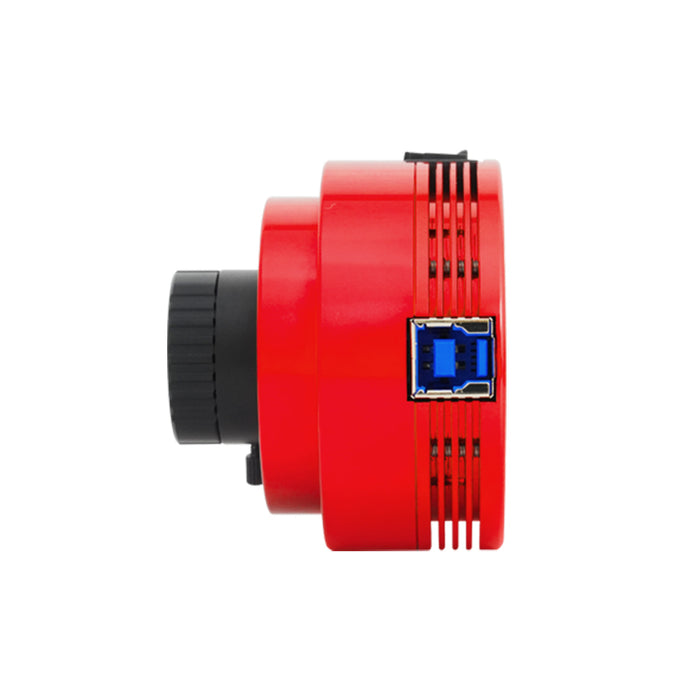

    The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission.

    Higher QE - Lower Readout Noise

    The camera has a built-in HCG mode, which can effectively reduce readout noise at high gain. This allows the camera to maintain the same high dynamic range as it does at low gain. When the gain is 180, the HCG mode is automatically turned on. The readout noise is as low as 0.56e, and the dynamic range can still reach a level close to 11stops.

    Quantum Efficiency

    The QE curve and readout noise are very important parameters to measure the camera's performance. Higher QE and lower readout noise are necessary to improve the image signal-to-noise ratio. According to our estimation, the QE peak value of ASI676MM is about 83%.

    Dark Current Noise

    The ASI676MM's lower dark current noise means that the image signal-to-noise ratio is also higher, especially when photographing dark objects, it produces images with better sharpness.

    AR Coated Window

    The ASI676MM camera features an AR-coated protective filter in front of the sensor, with a diameter of 21 mm and a thickness of 1.1 mm. It protects the sensor from external damage while enhancing light transmission from the near-ultraviolet to the near-infrared spectrum.

  • Sensor CMOS IMX676
    Read Noise 0.56e
    Sensor Size 1/1.6" (7.1x7.1mm)
    Full Well 10.55Ke
    Resolution 3552x3552
    QE 83%
    ADC 12bit
    USB 3.0
    Pixel Size 2um
    FPS 31.2

  • Higher QE - Lower Readout Noise

    Higher QE - Lower Readout Noise - Diagram

    Quantum Efficiency

    Quantum Efficiency - Diagram

    Dark Current Noise

    Dark Current Noise - Diagram

    IR-Cut Coated Window

    IR-Cut Coated Window - Diagram

    Connection Methods

    Connection Methods - Diagram

    Connection to External Devices

    Connection to External Devices - Diagram

    Structure Dimension Diagram

    Structure Dimension Diagram - Diagram
    • ASI676MC - In The Box

      Camera Body

      × 1

    • ASI676MC - In The Box

      Cover

      × 1

    • ASI676MC - In The Box

      Quick Guide

      × 1

    • ASI676MC - In The Box

      USB 3.0 Cable (2m)

      × 1

    • ASI676MC - In The Box

      ST4 Cable

      × 1

    • ASI676MC - In The Box

      1.25" Nosepiece

      × 1
