What is the main advantage of the ASI6200MM Pro V2's full-frame sensor?
The 35mm full-frame sensor provides a wide field of view. When paired with a wide-field refractor, the ZWO ASI6200MM Pro V2 can capture enormous deep-sky objects like the entire North America Nebula (NGC 7000) or the Rho Ophiuchi cloud complex in a single frame, something impossible for smaller APS-C sensors at the same focal length.
How does the ASI6200MM Pro V2 handle amp glow on long exposures?
The ZWO ASI6200MM Pro V2 has a hardware design that produces Zero Amplifier Glow. This means that even on exposures lasting many minutes, the characteristic brightening around the edge of the frame caused by amplifier heat is completely absent. This results in cleaner raw data and simplifies image processing, as you don't need to subtract complex patterns from your dark frames.
How does the ASI6200MM Pro V2 suit a long focal length telescope such as an 8" f/10 SCT?
At about 2000mm, the 3.76µm pixels give roughly 0.38 arcseconds per pixel, finer than typical seeing, so many imagers add a focal reducer for a wider field and a coarser image scale. ZWO does not name a specific telescope pairing for this camera.

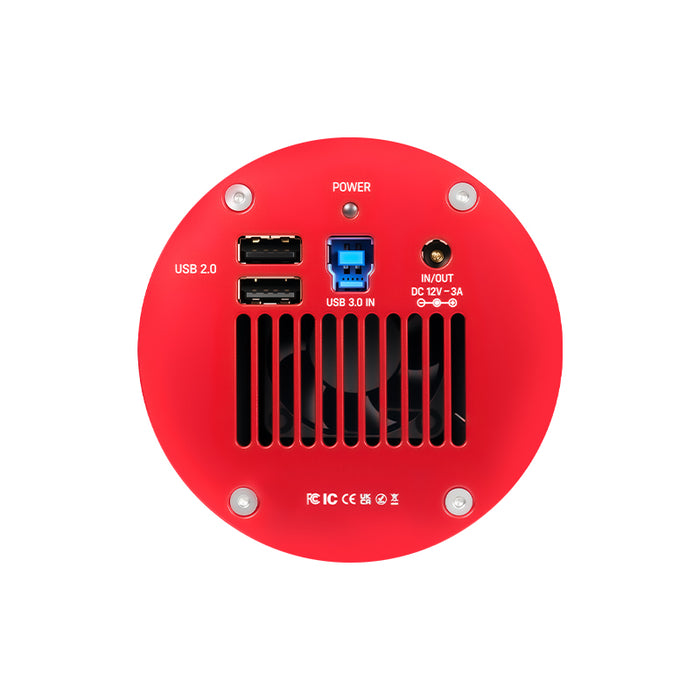

What power supply does the ZWO ASI6200MM Pro V2 need?
To run the two-stage TEC cooler and internal electronics, the ASI6200MM Pro V2 requires a 12V DC power supply capable of delivering 3A to 5A. External power supplies are needed for all ASI cooled cameras, and a supply outside the recommended voltage range can cause irreparable damage.
Since the ASI6200MM Pro V2 has no guide port, how do I autoguide?
The ZWO ASI6200MM Pro V2 is designed for modern autoguiding setups that use "pulse guiding" via ASCOM or INDI drivers. Instead of connecting the guide camera to the mount with an ST-4 cable, you connect your guide camera and mount directly to your control computer or an ASIAIR. The guiding software then sends correction commands to the mount directly.
Does the built-in dew heater on the ASI6200MM Pro V2 need an external controller?
No. The anti-dew heater is built into the camera and fits the protective window, so no separate heater strip or controller is needed.
What is the difference between the ASI6200MM Pro and the Pro V2?
ASI cooled cameras produced after August 2023 changed their DDR3 buffer from 256MB to 512MB. The ASI6200MM Pro V2 has the 512MB DDR3 buffer.
How does the 16-bit ADC on the ASI6200MM Pro V2 improve images?
The native 16-bit ADC allows the camera to capture 65,536 levels of brightness, compared to the 4,096 levels of a 12-bit ADC. This results in much smoother tonal gradations, especially in bright areas like the core of the Orion Nebula (M42) or the star-forming regions of galaxies. It gives more room to stretch the data in post-processing with less risk of banding.
What do the included M54 and M48 extenders for the ASI6200MM Pro V2 do?
The included extenders give the 55mm back focus that works best and that many flatteners and reducers use. The camera itself has a 17.5mm back focus. By combining the included M54-M48 21mm extender and M48-M48 16.5mm extender with the camera, you reach a total distance of 17.5 + 21 + 16.5 = 55mm. This simplifies connecting to your existing M48-threaded accessories.
What is HCG mode on the ASI6200MM Pro V2?
High Conversion Gain (HCG) mode is a feature that automatically activates at a gain setting of 100. When enabled, it significantly reduces the camera's read noise while preserving its wide dynamic range. This makes it possible to use higher gain settings for capturing faint details without paying a heavy penalty in noise, which suits narrowband imaging or shooting from light-polluted locations.
How large are the image files from the ASI6200MM Pro V2 and what does that mean for storage?
A single 16-bit FITS file from the ASI6200MM Pro V2 is approximately 120MB. An all-night imaging session can easily generate hundreds of gigabytes of raw data, especially when capturing LRGB and narrowband frames. You should plan for significant hard drive space, both for initial capture and for long-term storage of your processed and raw files.
